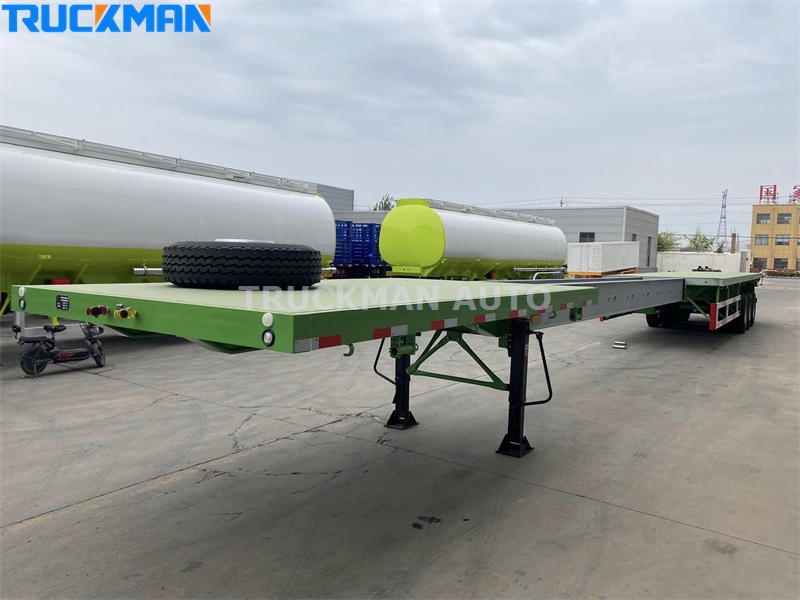

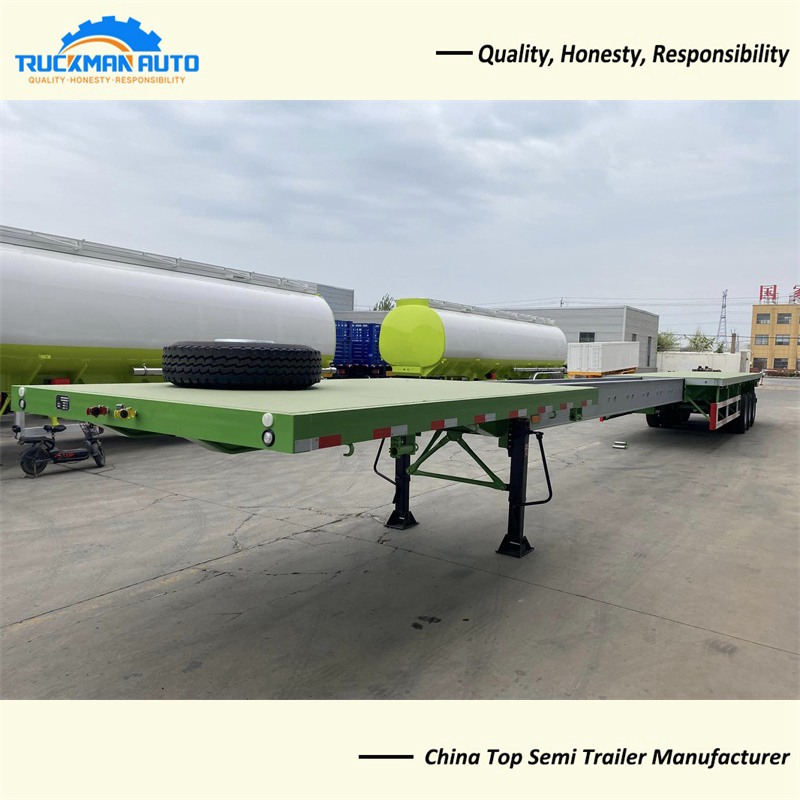

3 axle extendable flatbed trailer is new model upgrade basic on the container flatbed trailer. The total length reach to 18m, can used for transport long objects, such as logs, poles and other objects.
3 Axle Extendable Flatbed Trailer Features
-. 6m extendable plate for long objects haulage.
-. Main beam adopt the high strength steel, improve bearing loading.
-. Can transport all kind of container, such as 20FT, 40FT etc containers.
-. Tubeless model tire for long distance haulage, brand have TRIANGLE and LINGLONG.
3 Axle Extendable Flatbed Trailer Specification
Product Name: Extendable Flatbed Trailer
Axle: 3 axle, 3x12 tons, FUWA brand
Tire: 12R22.5, 12 pcs, TRIANGLE brand
Material: manganese steel
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Support Leg: 28 tons, FUWA brand
Container Lock: 8 pcs
Dimension: 12500x2500x1550mm
The 3 axle extendable flatbed trailer specification only for your reference, we can manufacture other model extendable flatbed trailer basic your request.
3 Axle Extendable Flatbed Trailer Support Leg
Extendable container flatbed trailer use the single-action type support leg. There is a gearbox on each side of the outriggers, both built-in and external, which can be raised and lowered independently by means of two cranks, with two gears, high and low speed, generally both high and low speed gears are available for empty loads, while the low speed gear must be used for heavy loads, this type is the most basic traditional outrigger, which is highly adaptable and can be used on both flat and uneven ground.
