3 axle side wall container flatbed trailer adopt the good paint, it’s can confirm the side wall flatbed trailer paint no falling off, discoloration. The height of side wall from 600mm to 1500mm, thickness is 1.5-2mm. Adopt the patterned plate, enhances friction between cargo and loading platform, avoid dropping goods during transportation.
3 Axle Side Wall Container Flatbed Trailer Features
1. 90# 3.5 inch heavy duty tractor pin, JOST brand.
2. Automatic submerged welding tech, welding quality is high.
3. Can optional the air suspension, for transport weight limit request.
4. Use the 16 tons heavy duty loading axle, ZY, FUWA and BPW optional.
3 Axle Side Wall Container Flatbed Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
3 Axle Side Wall Container Flatbed Trailer |
|
Application |
Bulk cargo and container transport |
|
Axle |
3 axle, 3x16 tons, FUWA brand |
|
Tire |
315/80R22.5, 12 pcs |
|
Support Leg |
JOST brand, 28 tons support leg |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Brake System |
WABCO brand |
|
Material |
Q355 |
|
Loading Ton |
50,000kg |
|
Dimension |
12500x2560x3150mm |
The 3 axle side wall container flatbed trailer specification only for your reference, we can manufacture other model side wall container flatbed trailer basic your request.

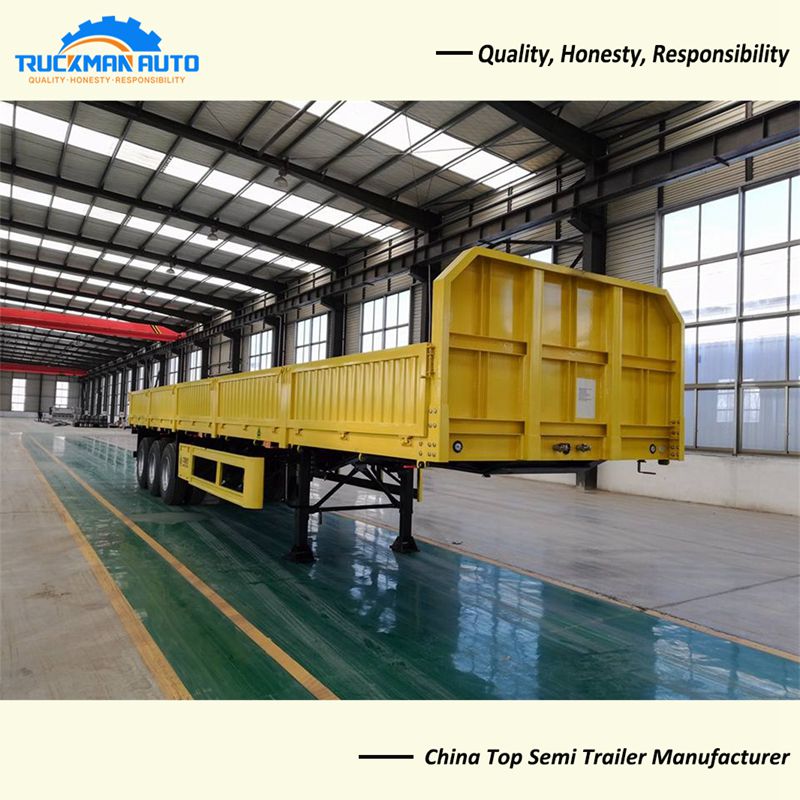

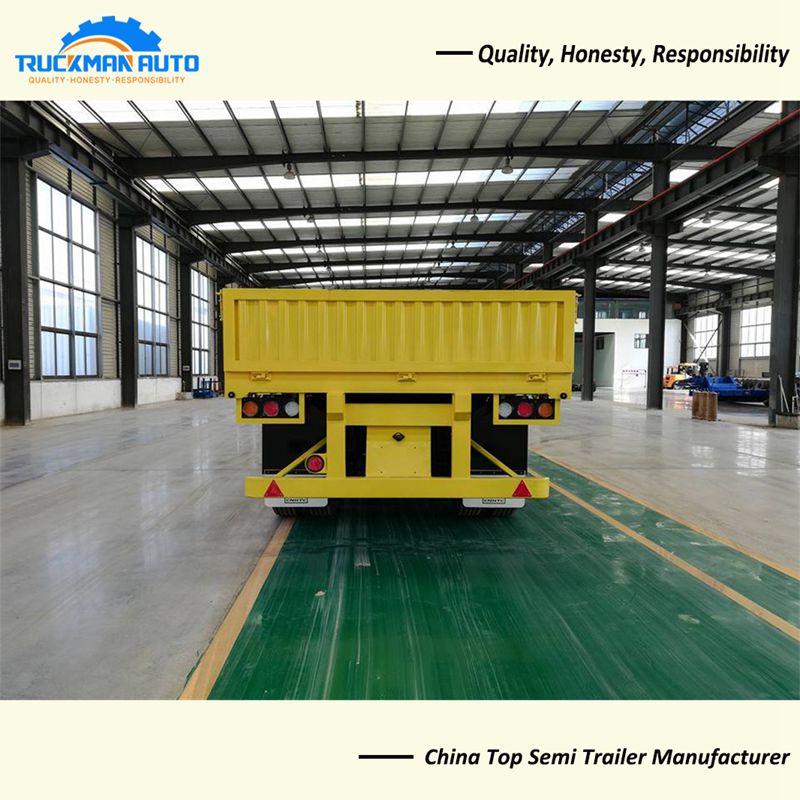

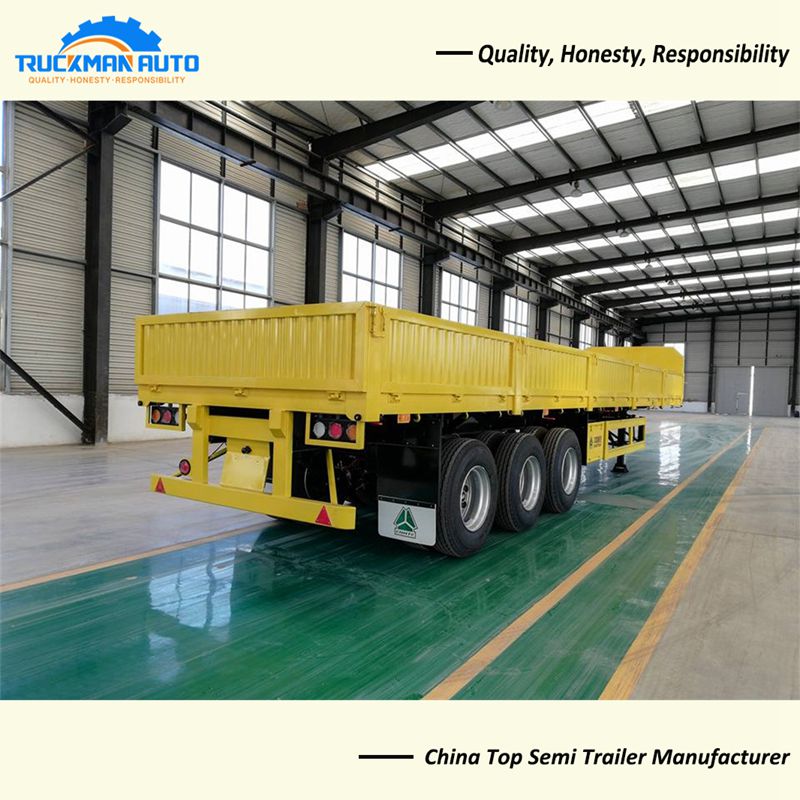

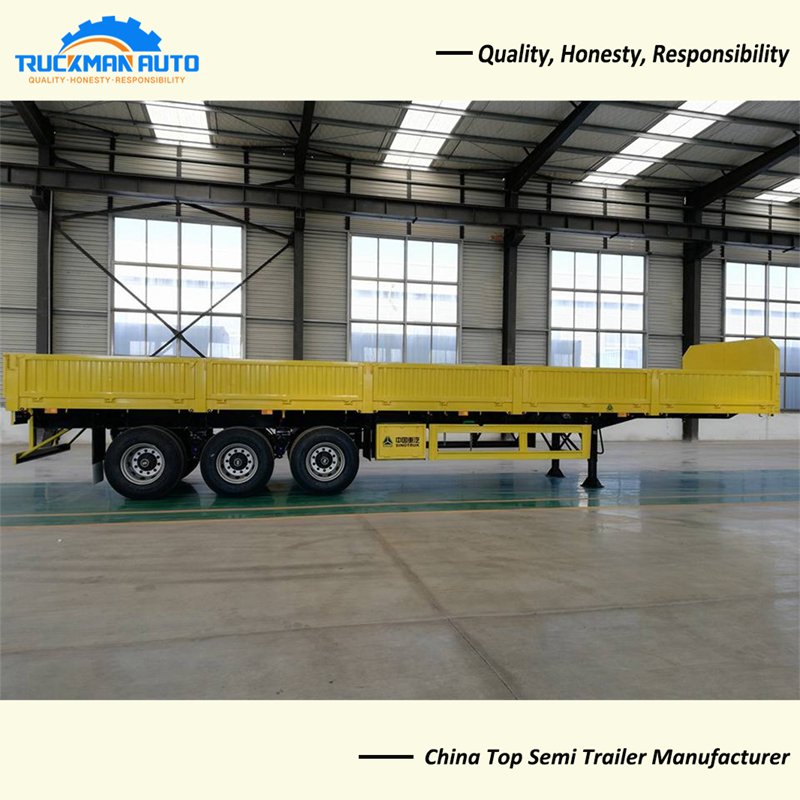

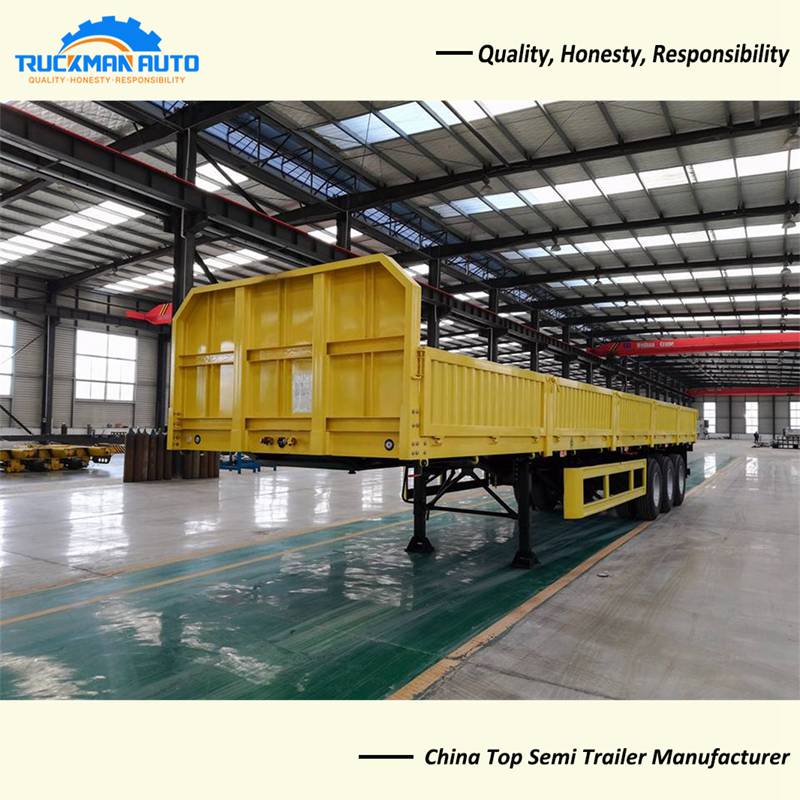

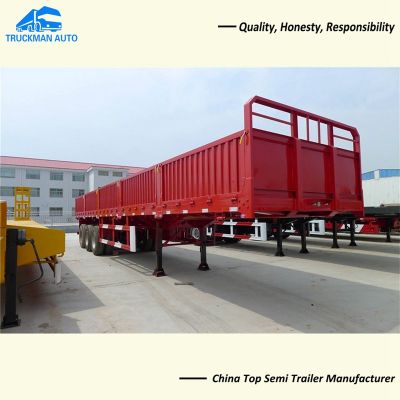

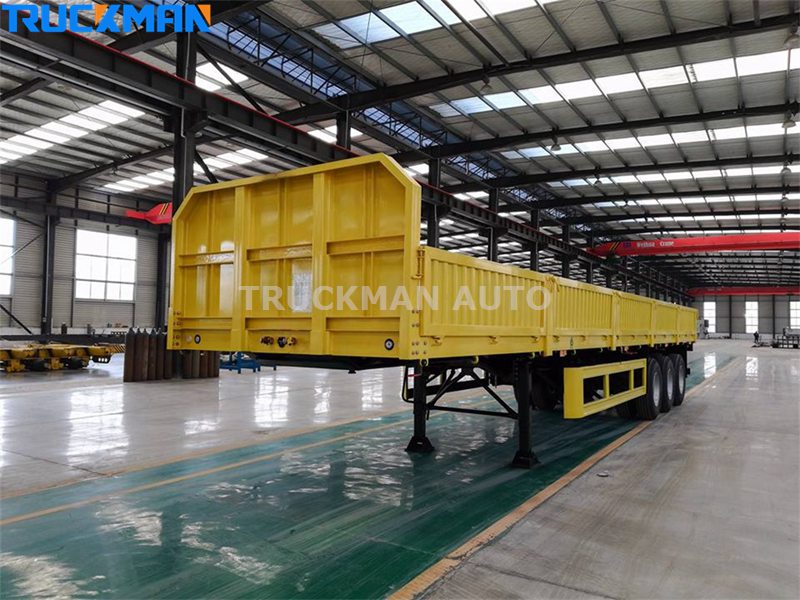

3 Axle Side Wall Container Flatbed Trailer Detail Picture

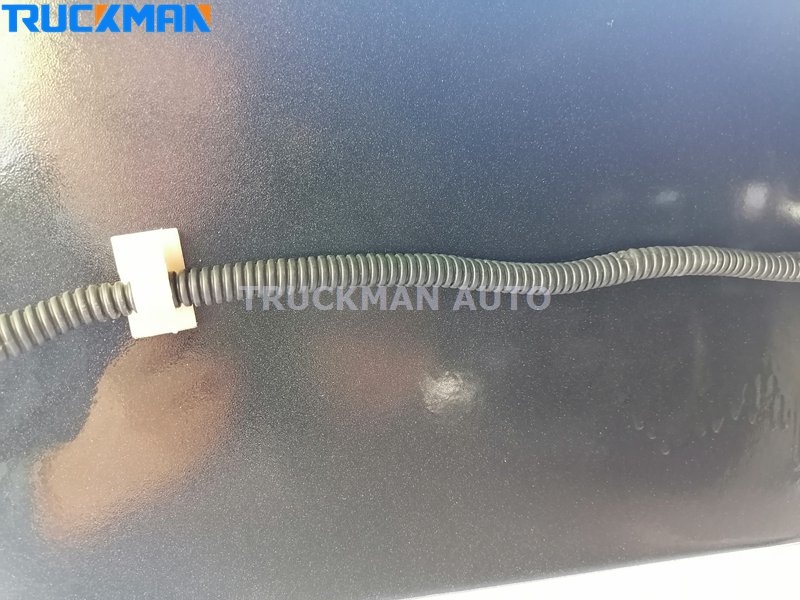

TRUCKMAN brand side wall flatbed trailer main component adopt the famous brand parts, like FUWA axle, TRIANGLE tire etc. And the small parts we also use the enhanced model, such as 90x16mmx10pcs leaf spring, 4mm thickness rope tightener, enhanced hooks and 18mm thick rim etc. And the wire is protected by an insulating sleeve, which can effectively extend the service life.
