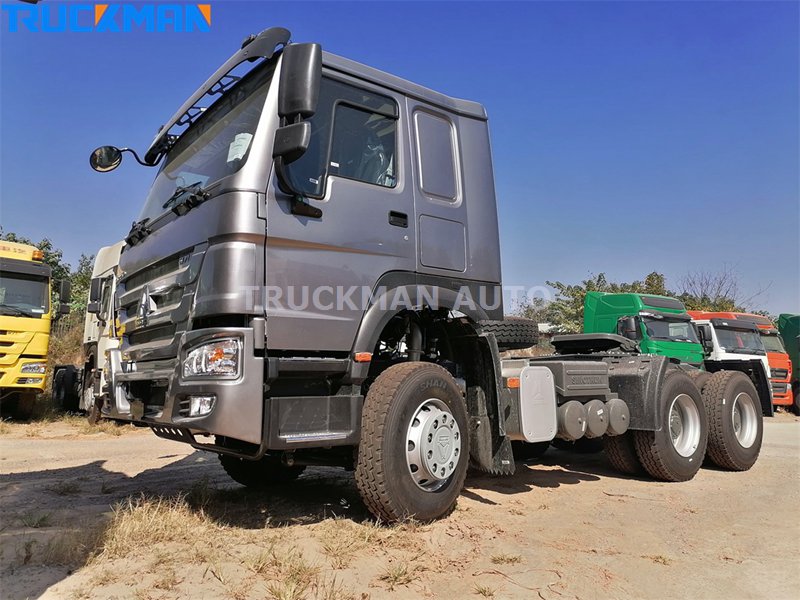

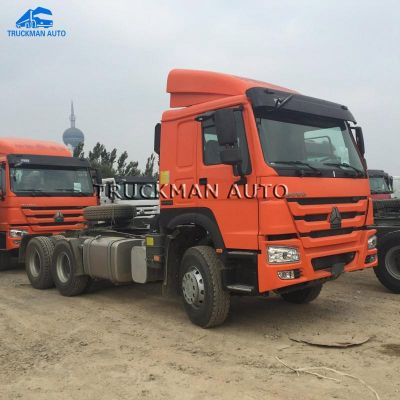

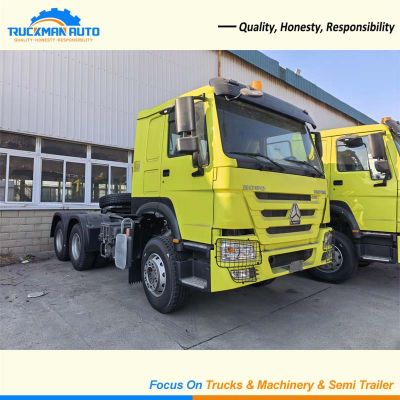

The SINOTRUK HOWO 6x4 tractor truck head is powerful, economical, lightweight and reliable. Large aluminium fuel tank, aluminium gas tank, aluminium front wheels and aluminium gearbox housing reduce weight and save fuel. The water tank, intercooler and other engine related parts have been raised to give the chassis a more passable performance to face different road conditions with ease.
SINOTRUK HOWO 6x4 Tractor Truck Head Features
1. High active and passive safety factors for trucks.
2. 3dB quieter than comparable international engines.
3. Low wind resistance design of the cab, with a drag coefficient of only 0.55.
4. 25% fewer parts and significantly fewer points of failure compared to comparable engines.
SINOTRUK HOWO 6x4 Tractor Truck Head Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 6x4 Tractor Truck Head |
|
Application |
For fuel and container transport |
|
Engine |
WD615.47, 371HP, EURO II |
|
Gearbox |
HW19710, 10 forward and 2 reverse |
|
Cabin |
HW76, with one bed, A/C |
|
Tire |
315/80R22.5, 10+1 pcs, tubeless model |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
600L |
|
Loading Ton |
70,000kg |
|
Dimension |
6800x2560x3150mm |
The SINOTRUK HOWO 371HP tractor truck head specification only for your reference, we can manufacture other model SINOTRUK HOWO tractor truck head basic your request.

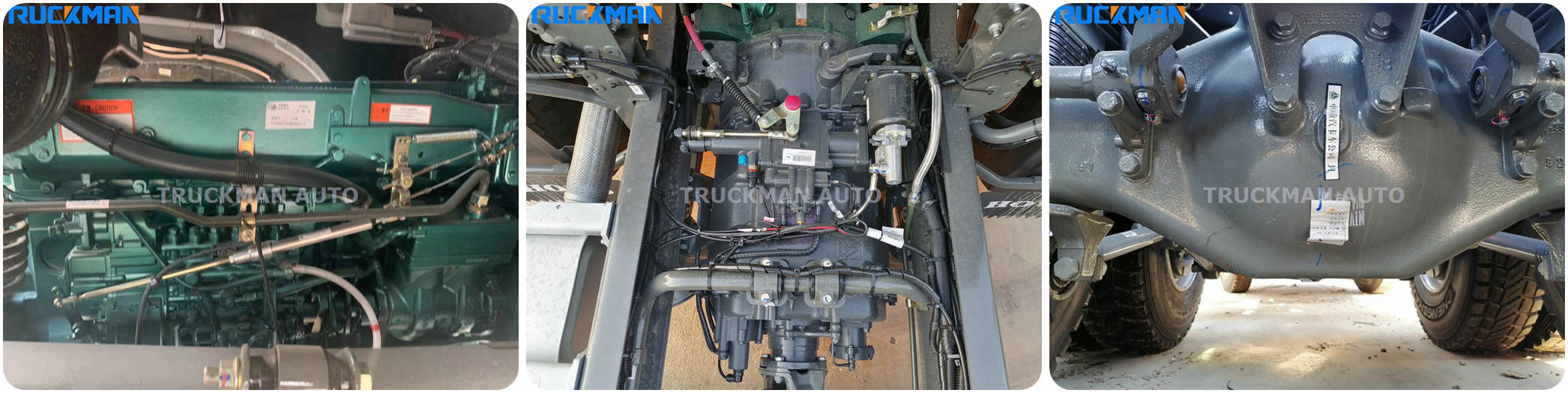

SINOTRUK HOWO 6x4 Tractor Truck Head Power Chain
The SINOTRUK HOWO 6x4 tractor head is powered by WD615.47 engine with 9.726L displacement, EURO 2 emission and a maximum of 371hp, which is matched by the HW19710 high efficiency carefree transmission and the STEYR 4.8 speed ratio HC16, 16 ton heavy duty loading axle. The entire power chain is calibrated for the appropriate operating conditions, further improving fuel economy with a combined fuel saving of 14.3%.
