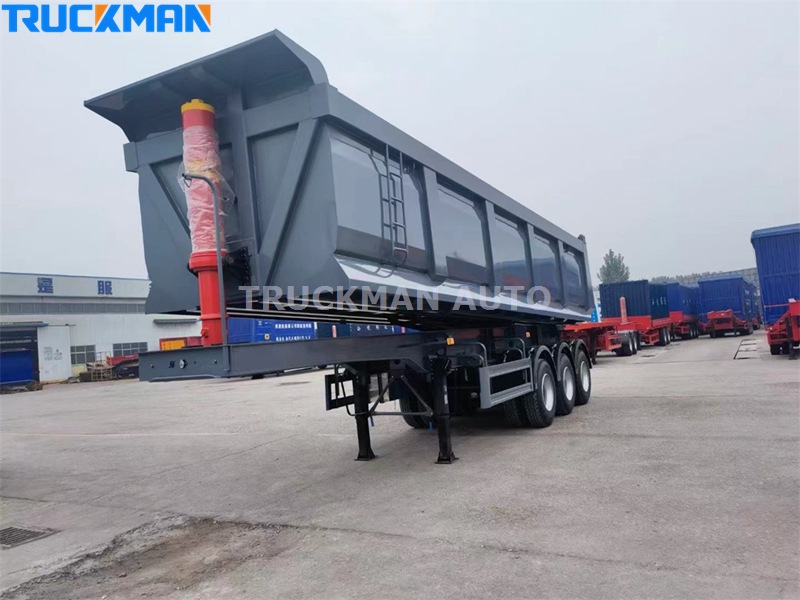

3 axle 50 ton tipping trailer adopt the HYVA brand lifting system, with stable quality, smooth lifting, light weight, etc. advantage. The cargo box loading capacity is 35m3, can suitable transport sand, stone etc mining material. Material of cargo box is manganese plate and NM series plate. The chassis is designed with a low centre of gravity for safer driving and a low lifting centre of gravity.
3 Axle 50 Ton Tipping Trailer Features
1. Heavy duty model suspension, good flexibility .
2. 80 ton support leg, support drop and pull transport.
3. 16 ton heavy duty loading axle, with longer using time than 13 ton axle.
4. 18mm thick wheel rim, support heavy duty loading and reduce maintenance cost.
3 Axle 50 Ton Tipping Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
3 Axle 50 Ton Tipping Trailer |
|
Application |
Bulk cargo transport |
|
Axle |
3 axle, 3x16 tons, FUWA brand |
|
Tire |
315/80R22.5, 12 pcs |
|
Support Leg |
FUWA brand, 80 tons support leg |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Bucket |
10000x2300x1500mm, U shape |
|
Material |
Q355 |
|
Loading Ton |
50,000kg |
|
Dimension |
11000x2560x3350mm |
The 3 axle 50 ton tipping trailer specification only for your reference, we can manufacture other model 3 axle tipping trailer basic your request.
3 Axle 50 Ton Tipping Trailer Lifting System

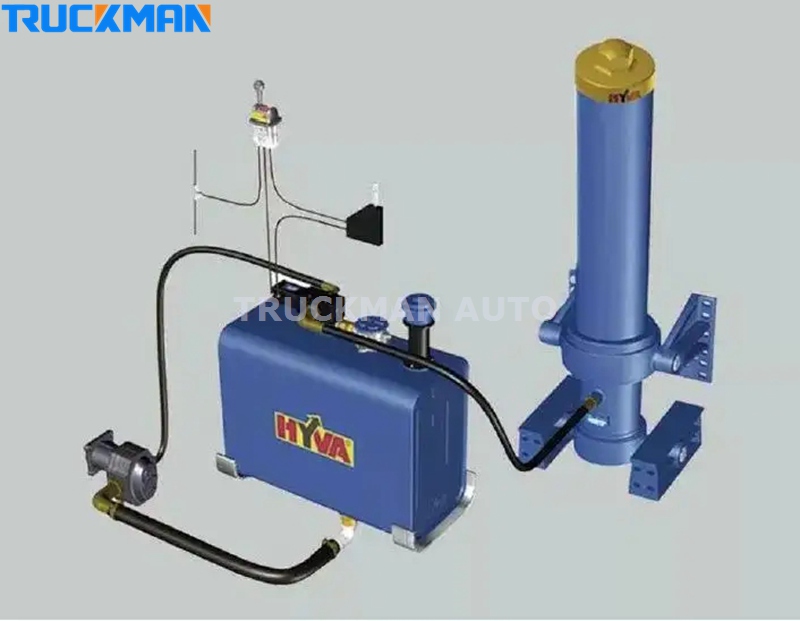

3 axle 50 ton tipping trailer hydraulic lifting system mainly consists of PTO, hydraulic pump, lifting valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic tank, high (low) pressure oil pipe, etc. In addition, the high pressure hose of the hydraulic system must be replaced every two years, and in the process of daily maintenance if the hose is found to be leaking, broken or partially bulging or cracked, it should also be replaced in time.
