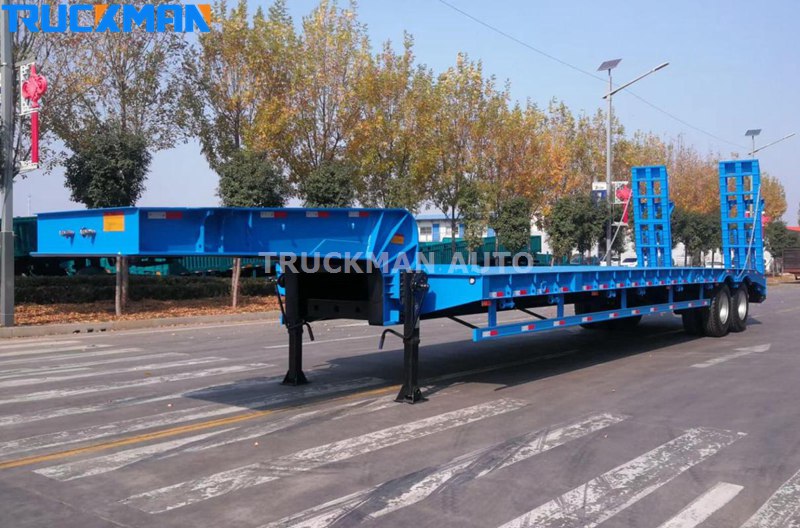

2 axle lowbed trailer design for transport heavy duty machinery, like wheel loader, excavator, road roller and bulldozer. The whole lowbed trailer length reach to 14000mm, can loading 2 pcs 20 ton excavator or 2 pcs road roller. Chassis adopt the heavy duty loading part, such as heavy duty suspension, thickened wheel rim and leaf springs etc.
2 Axle Lowbed Trailer Features
1. Heavy duty loading design, super loading capacity.
2. Adopt the TOP brand tire, axle, support leg and tractor pin.
3. Use the manganese plate, T700 high strength steel is optional.
4. WABCO brand brake system, fast brake response, safer braking.
2 Axle Lowbed Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
2 axle lowbed trailer |
|
Application |
Transport heavy duty machinery |
|
Axle |
2 axle, 2x16 tons, FUWA brand |
|
Tire |
315/80R22.5, 8 pcs |
|
Support Leg |
FUWA brand, 80 tons support leg |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Brake System |
WABCO brand |
|
Material |
T700 |
|
Loading Ton |
50,000kg |
|
Dimension |
14000x3000x2950mm |
The 2 axle lowbed trailer specification only for your reference, we can manufacture other model lowbed trailer basic your request.

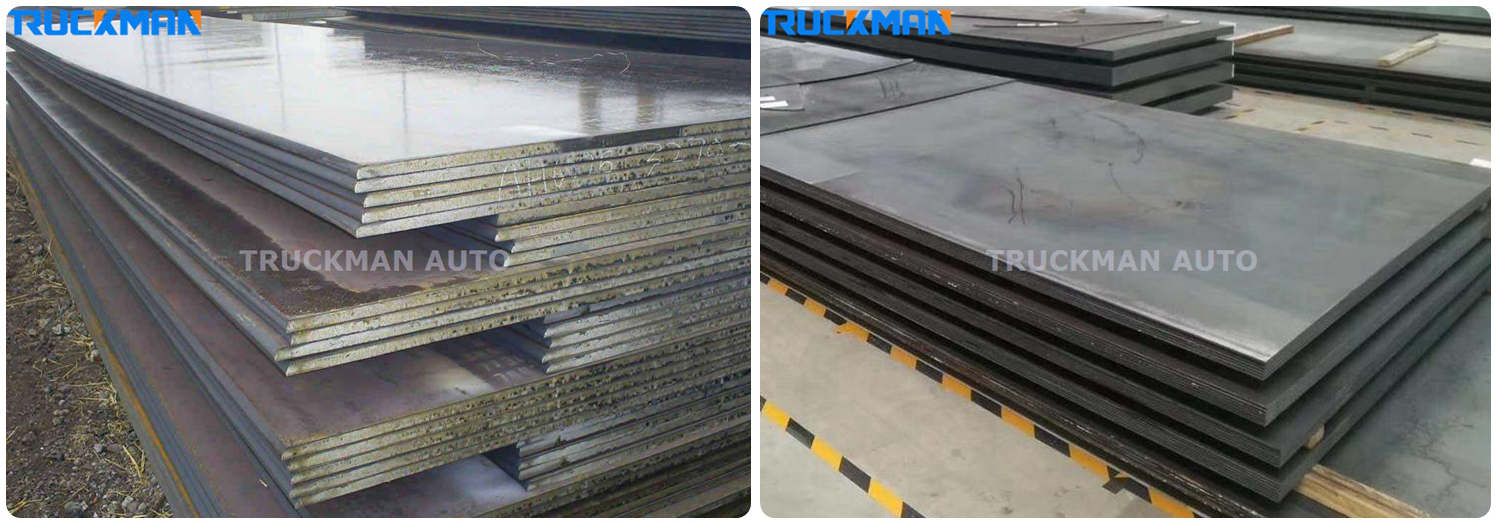

2 Axle Lowbed Trailer Material
2 axle lowbed trailer material have two model, Q355 and T700. Q355 is manganese plate, T700 is high strength steel. The Q355 steel is the most used of the common material, which have low cost and good performance, T700 material is new model steel for low bed trailer, the yield strength reach to 700Mpa, loading capacity is 3 times than Q355, using time also longer than Q355, self weight more lighter, but purchase cost also higher. We can recommend suitable material according to your low bed trailer working condition.
