Home Products Dump Semi Trailer Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer

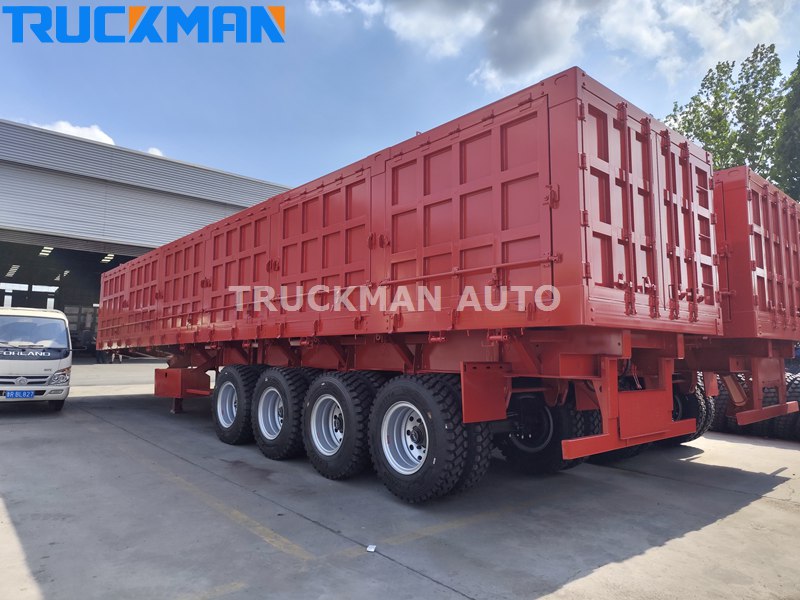

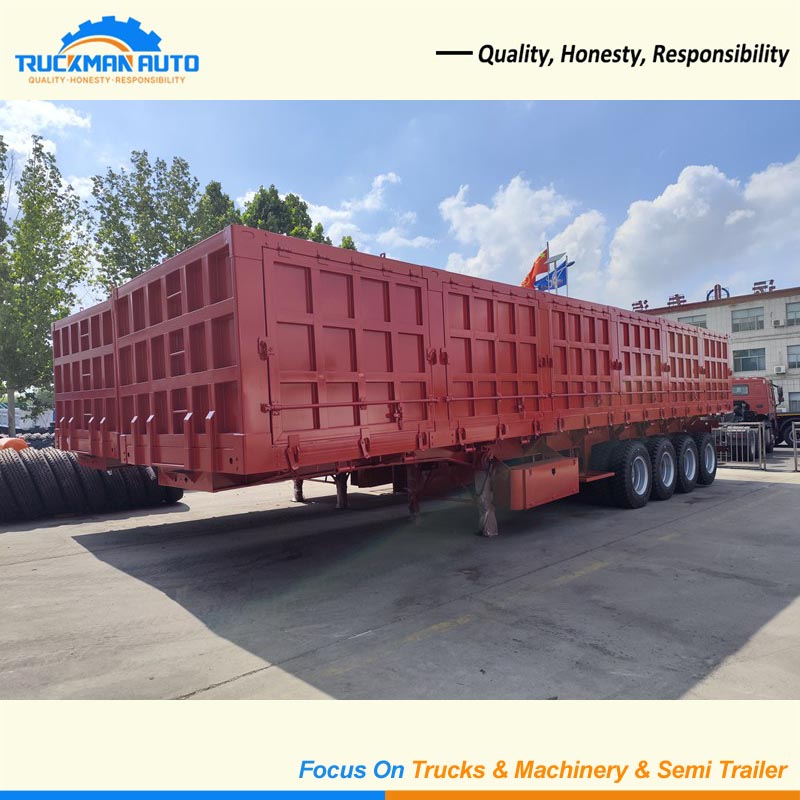

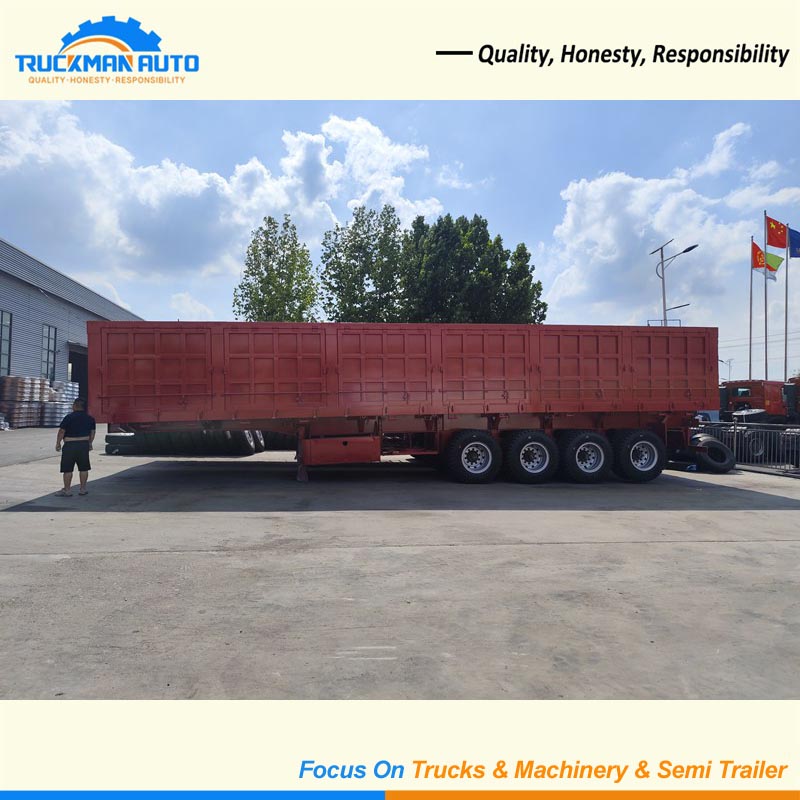

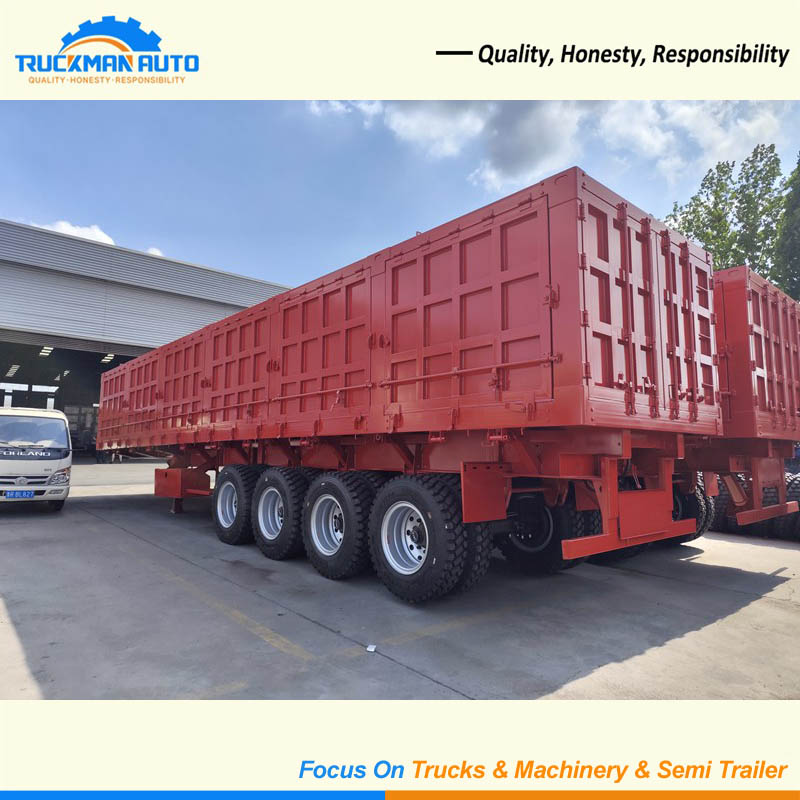

Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer
Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer

Heavy Duty TRUCKMAN 4 Axles 100T Side Tipping Trailer

Product ID : TAM4100SDT
Product Tags : Tipper Semi Trailer
Product Attributes :

The 4-axles 100T side dump trailer is a special semi-trailer used for bulk cargo transportation. It lowers the center of the vehicle and increases stability by unloading on the side.

Product Description

About Heavy Duty TRUCKMAN 4 Axles 100T Side Dumper Trailer



The side dump trailer is a special trailer that lowers the center of gravity of the vehicle through the side dump unloading structure to improve transportation safety. It is mainly used for bulk material transportation. TRUCKMAN 4 axles 100T side dump trailer uses laser cutting, robot welding, electrostatic spraying and shot blasting to greatly improve the service life of the chassis, frame and cargo body. By adding high-quality accessories such as door anti-sway blocks, rope tighteners and rope hooks, it gives users a good experience. Using 325/95R24 pattern tires, greater grip and stronger pass-ability.



Side Dump Trailer



TRUCKMAN 4 Axles 100T Side Dumper Trailer Specification



Product Name: 4 Axles 100 Tons Side Dump Trailer

Application: Cargo transportation

Axle: 4 axle, 4x16 tons, FUWA brand

Tire: 325/95R24, 16 pcs

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand



4 axles 100T side dump trailer only for your reference, we can manufacture other semi trailer basic your request.

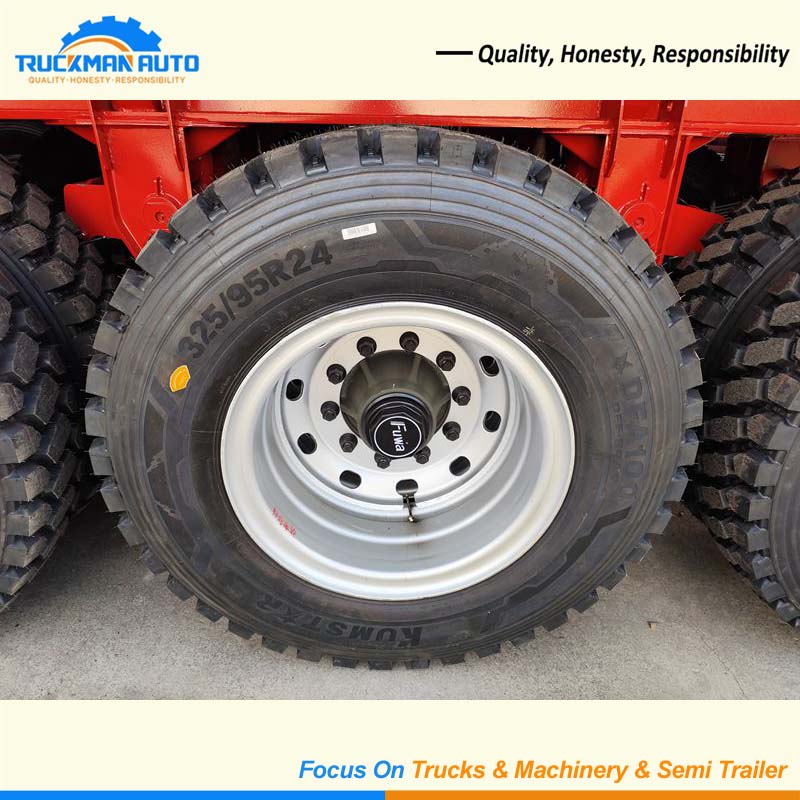

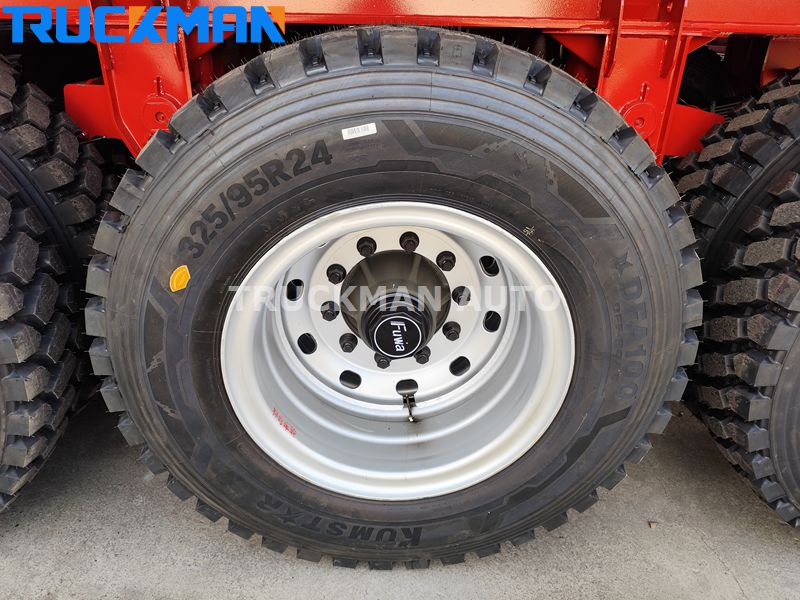

TRUCKMAN 4 Axles 100T Side Dumper Trailer Tire Introduction



This vehicle uses 325/95R24 tires:

High speed level:

The speed level is K (up to 110km/h), which is suitable for medium and short-distance high-speed driving scenes. ‌

Wide applicability:

Applicable to roads, off-roads and mixed roads, especially suitable for construction sites, loading and unloading operations and other scenes. The tread pattern design can cope with rougher roads. ‌

Good durability:

The special carcass structure (such as multi-layer steel cord, large block pattern design) is used to improve the load-bearing capacity and wear resistance, and extend the service life. ‌

Strong load-bearing capacity:

The load per axle can reach 4750-4500kg, which meets the needs of medium and short-distance transportation, especially suitable for engineering vehicles such as dump trucks and mixer trucks. ‌



Side Dump Trailer

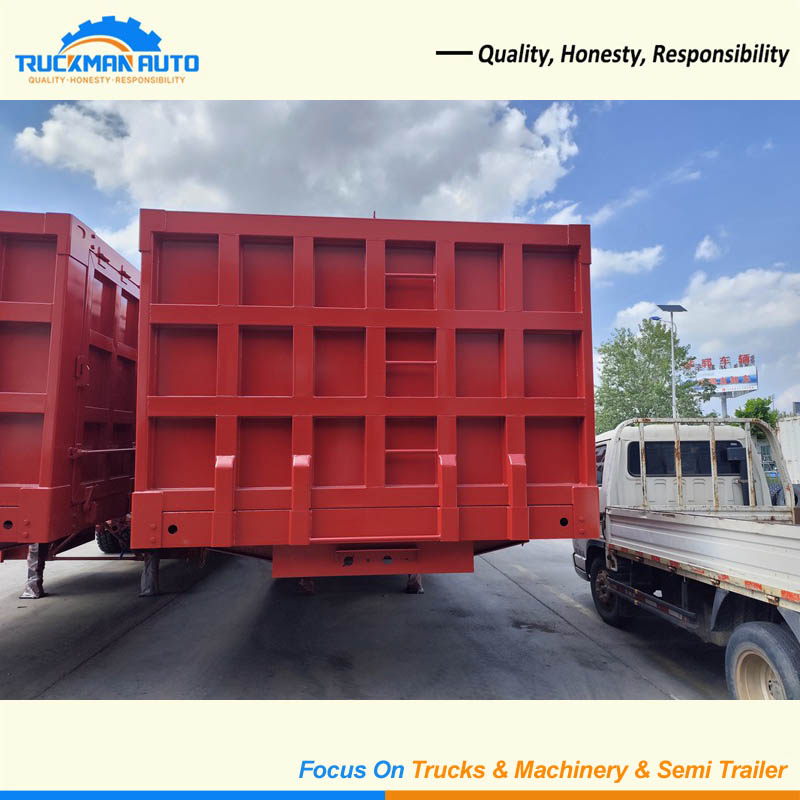

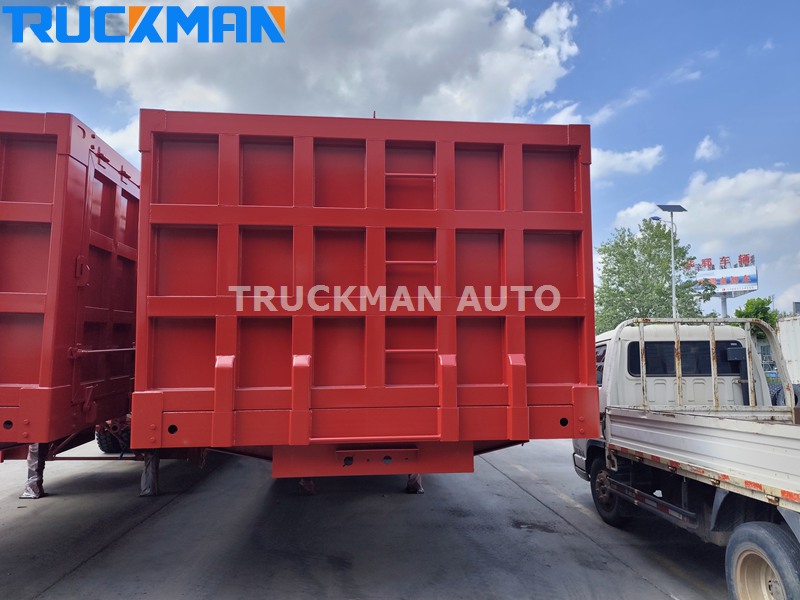

TRUCKMAN 4 Axles 100T Side Dumper Trailer Cargo Body



Structural durability:

Square compartments are usually welded with high-strength steel, and their deformation resistance and compression resistance are better than those of wooden or plastic turnover boxes, and their service life is longer.



Large loading capacity:

The rectangular cargo box is covered with reinforcing ribs on the outside, and the bottom plate is almost flat. The loading volume is larger than that of the U-shaped compartment, which is suitable for transporting bulk goods such as bulk sand and gravel, industrial raw materials, etc. ‌



Functional diversity:

Ordinary rectangular cargo boxes are not only suitable for engineering transportation, but also can carry goods in ordinary flatbed compartments. They are more expandable and can meet the needs of various scenarios such as road transportation, infrastructure, and mining. ‌





Side Dump Trailer
