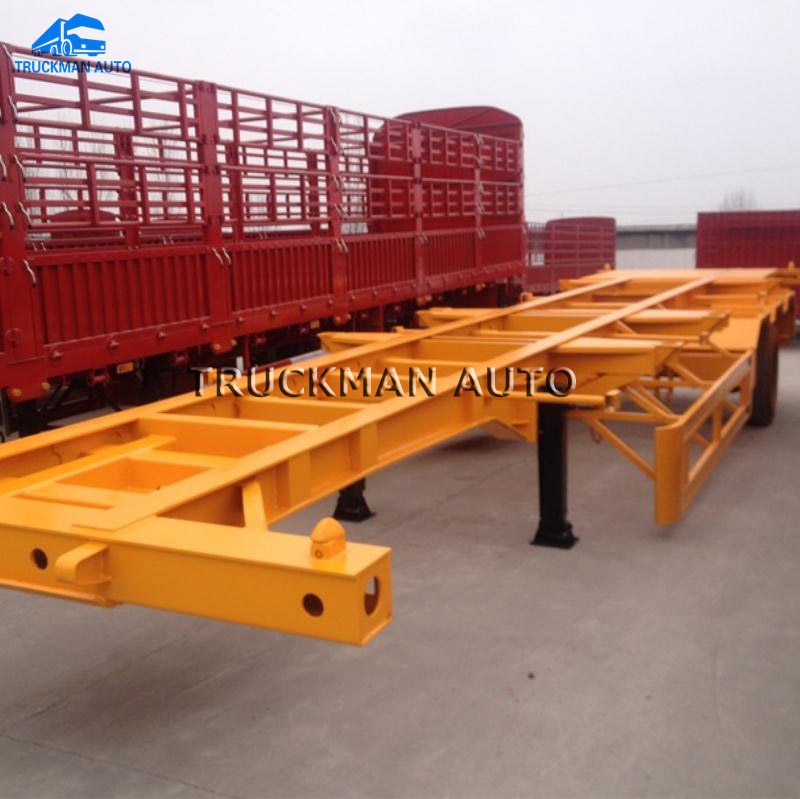

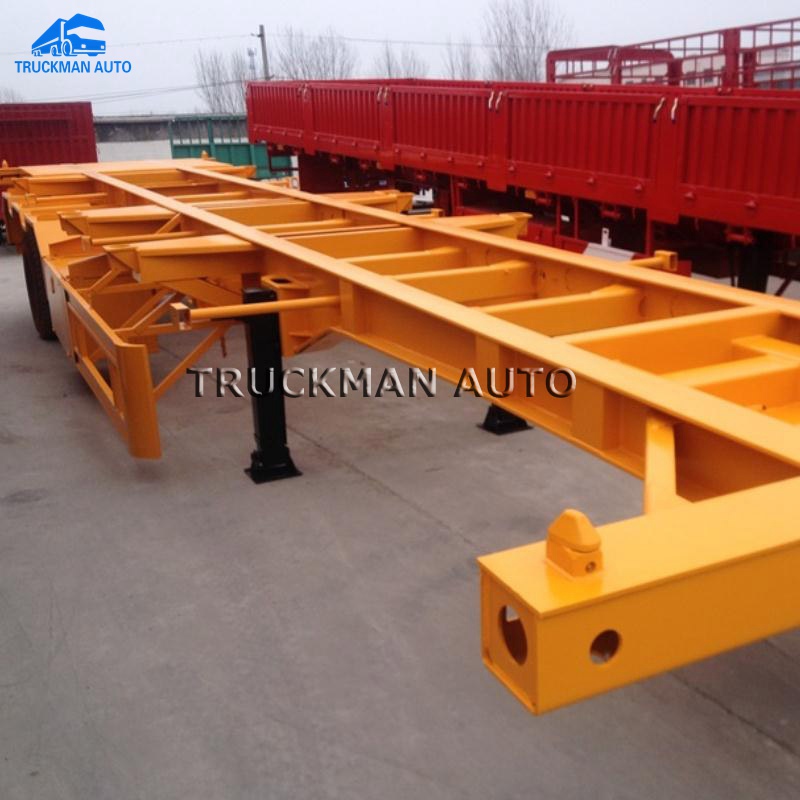

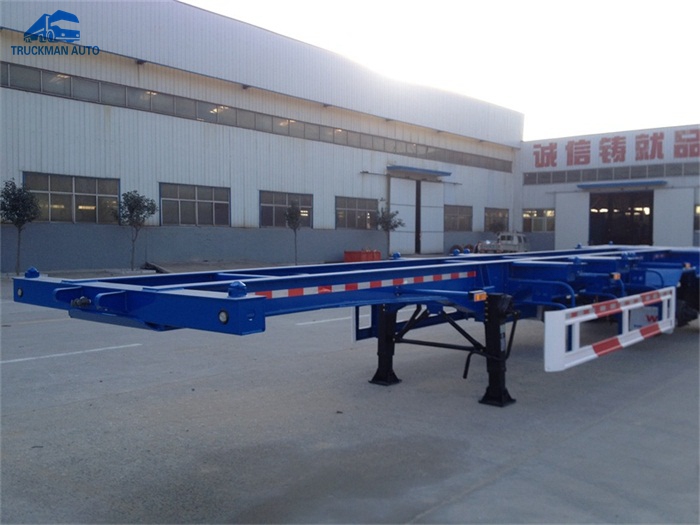

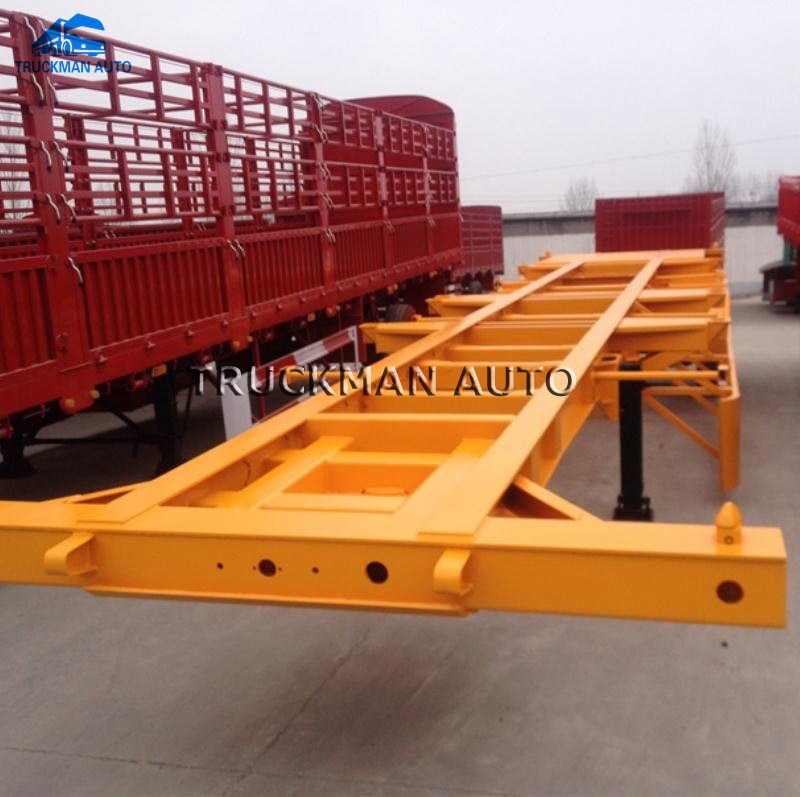

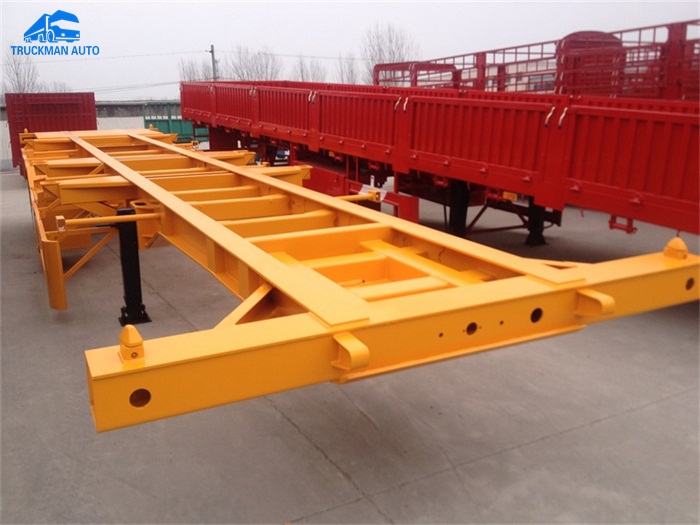

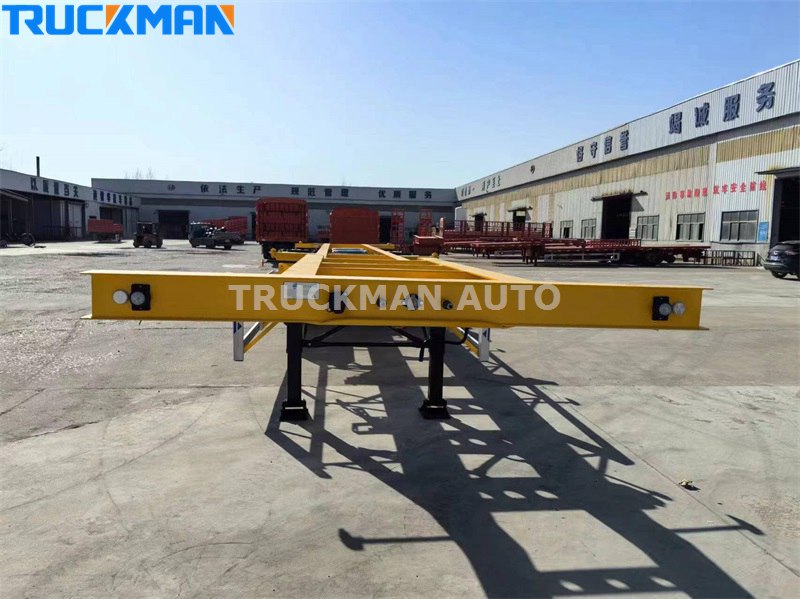

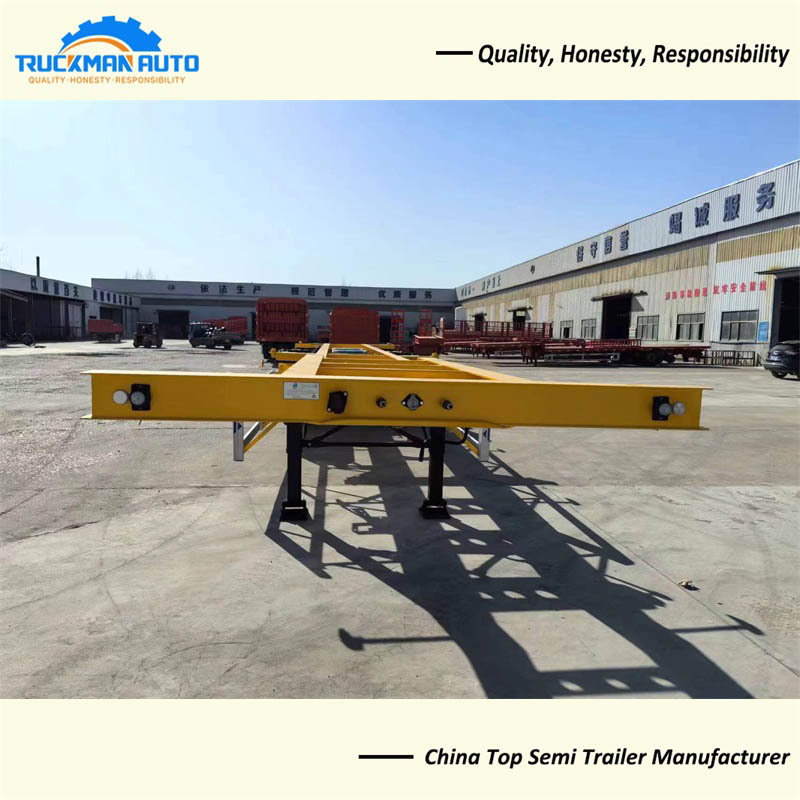

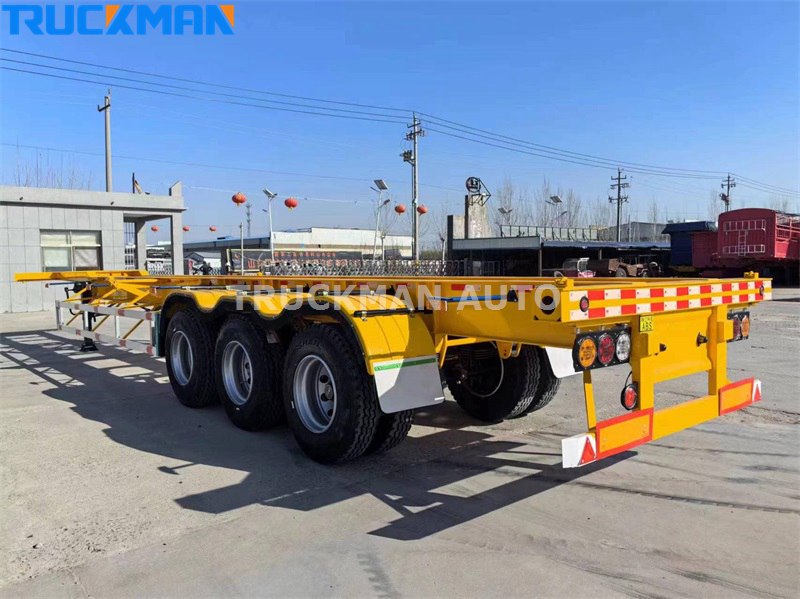

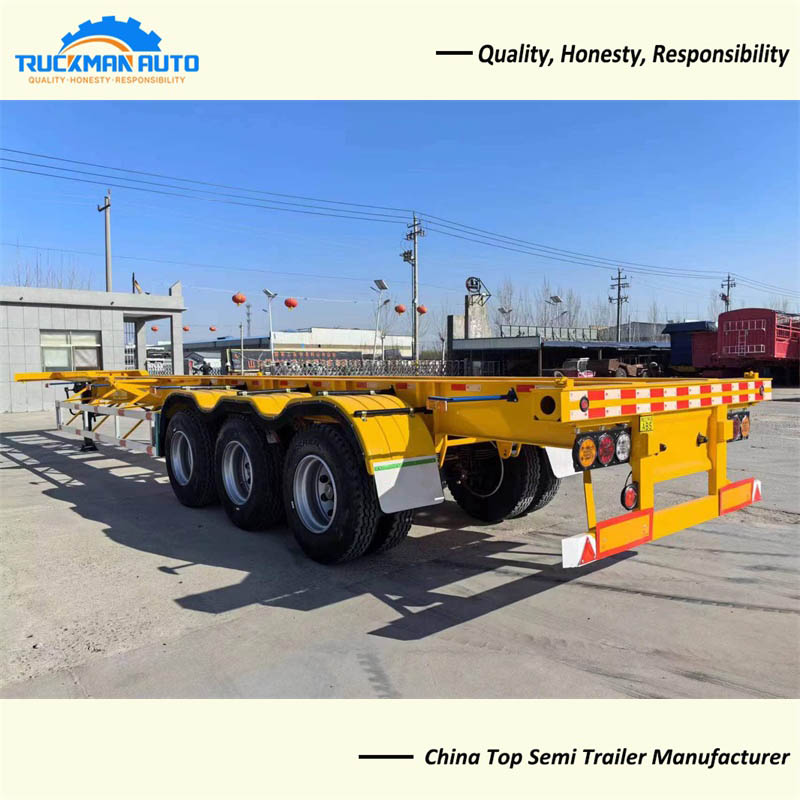

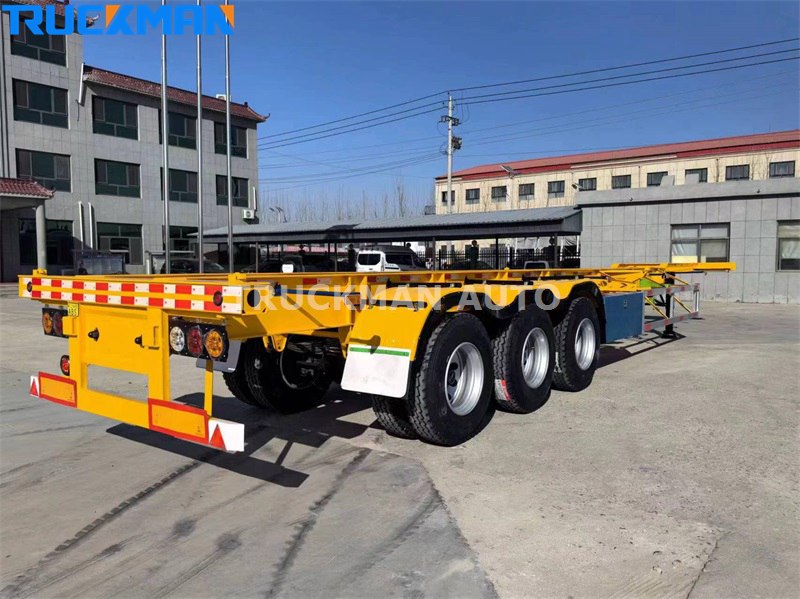

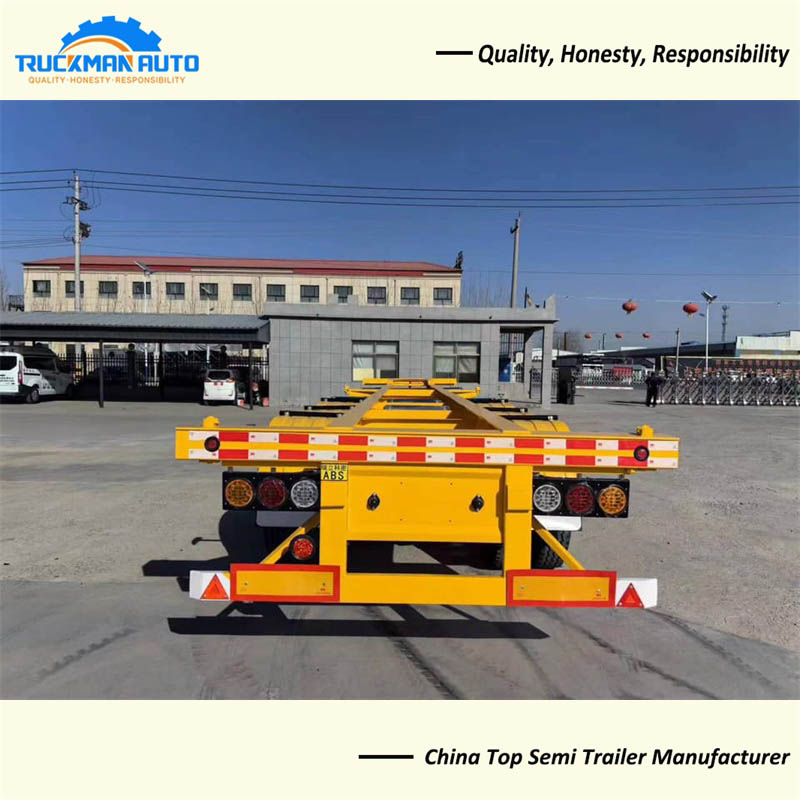

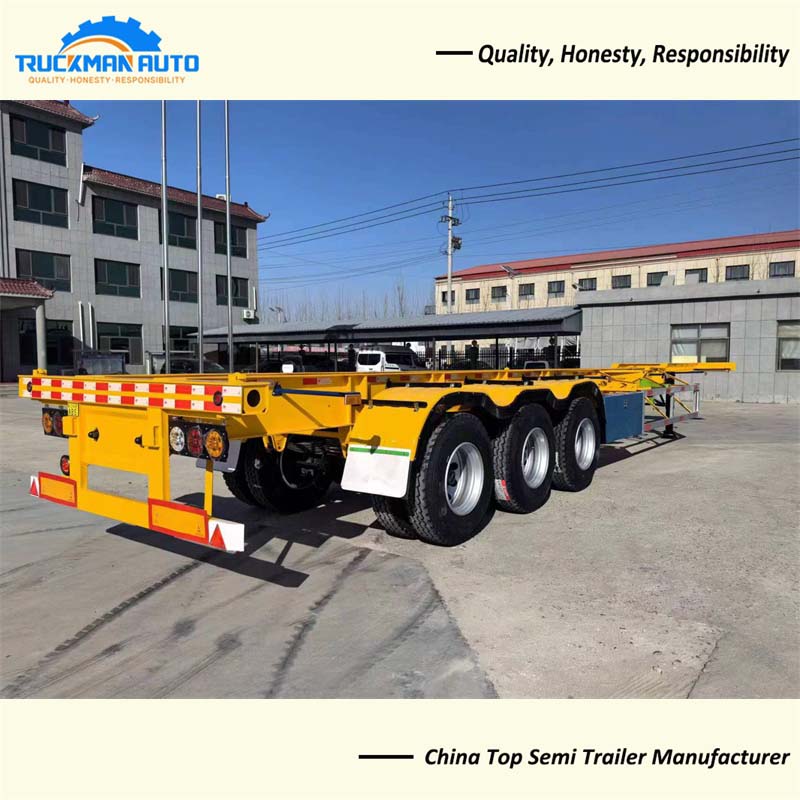

About 3 Axle Skeleton Container Semi-Trailer
The skeleton container semi-trailer utilizes the streamline design concept for a simple appearance, eliminating cumbersome decorations. The streamline design of this vehicle can reduce vortex and turbulence when the oncoming airflow passes through the vehicle, thus reducing air resistance. Visually, it not only feels the overall coordination and aesthetics, but also reduces the wind resistance coefficient of the whole vehicle, reduces fuel consumption, and is both energy-saving and environmentally friendly.
3 Axle Skeleton Container Semi-Trailer Specification
Product Name: 3 Axle Skeleton Container Semi-Trailer
Application: container transport
Axle: 3 axle, 3x13 tons, FUWA brand
Tire: 315/80R22.5, 12 pcs, TRIANGLE brand
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Support Leg: 28 tons, FUWA brand
Container Lock: 12 pcs
Dimension: 12500x2500x1530mm
3 Axle Skeleton Container Semi-Trailer specification only for your reference, we will recommend other model Skeleton Container Semi-Trailer basic your request.
3 Axle Skeleton Container Semi-Trailer Robotic Welding
The skeleton container using robot welding technology, welding robot through the weld geometry parameters weld angle, melting depth precision control, can effectively release the stress generated in the welding process, efficient control of the welding process on the base material and welding of the combination of strength, so that the body carrying capacity is greatly improved.

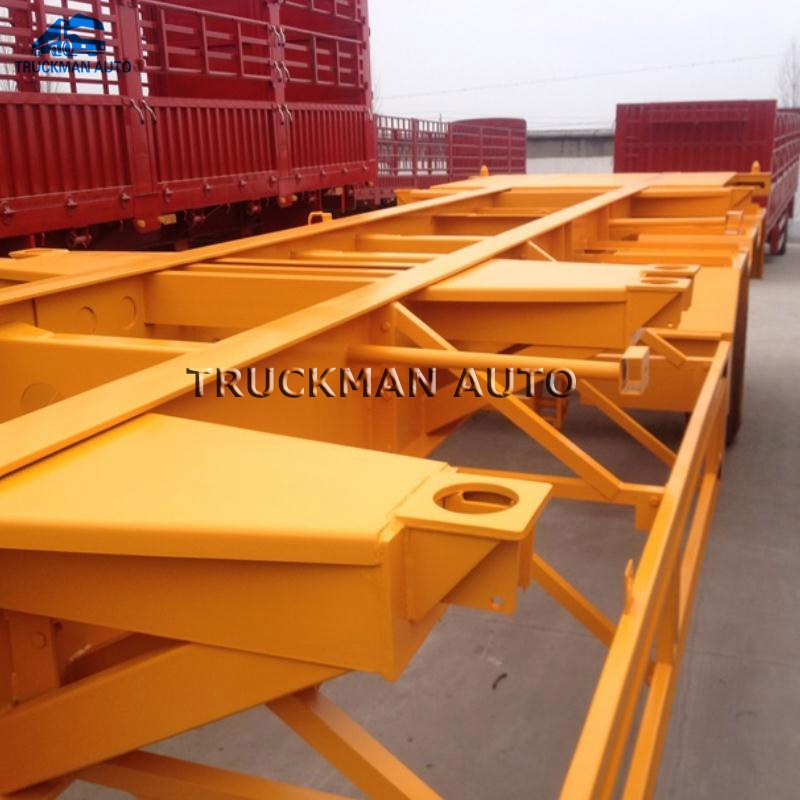

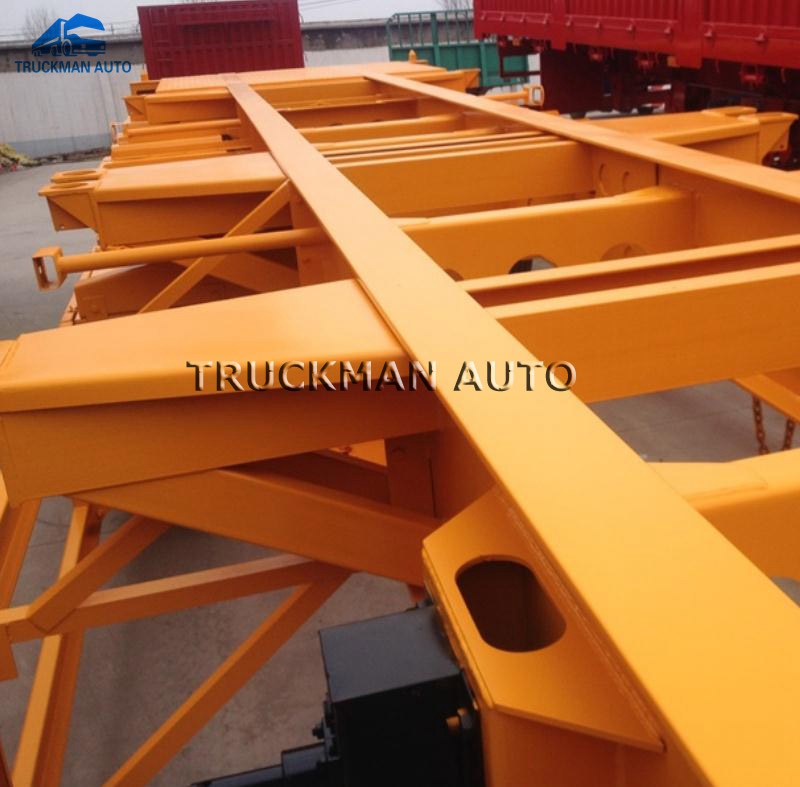

3 Axle Skeleton Container Semi-Trailer Girder
This skeleton container semi-trailer adopts one-piece beam, the longitudinal beam adopts the whole plate discharging, one-piece molding, low utilization rate of steel plate, more waste materials, higher cost, but no welding in the middle, which makes the beam high strength, light weight, stronger loading capacity and longer service life. The beam reinforcement device is designed to release the stress concentration at the suspension welding place, eliminating the situation of beam breakage and enhancing the centralized loading capacity.
