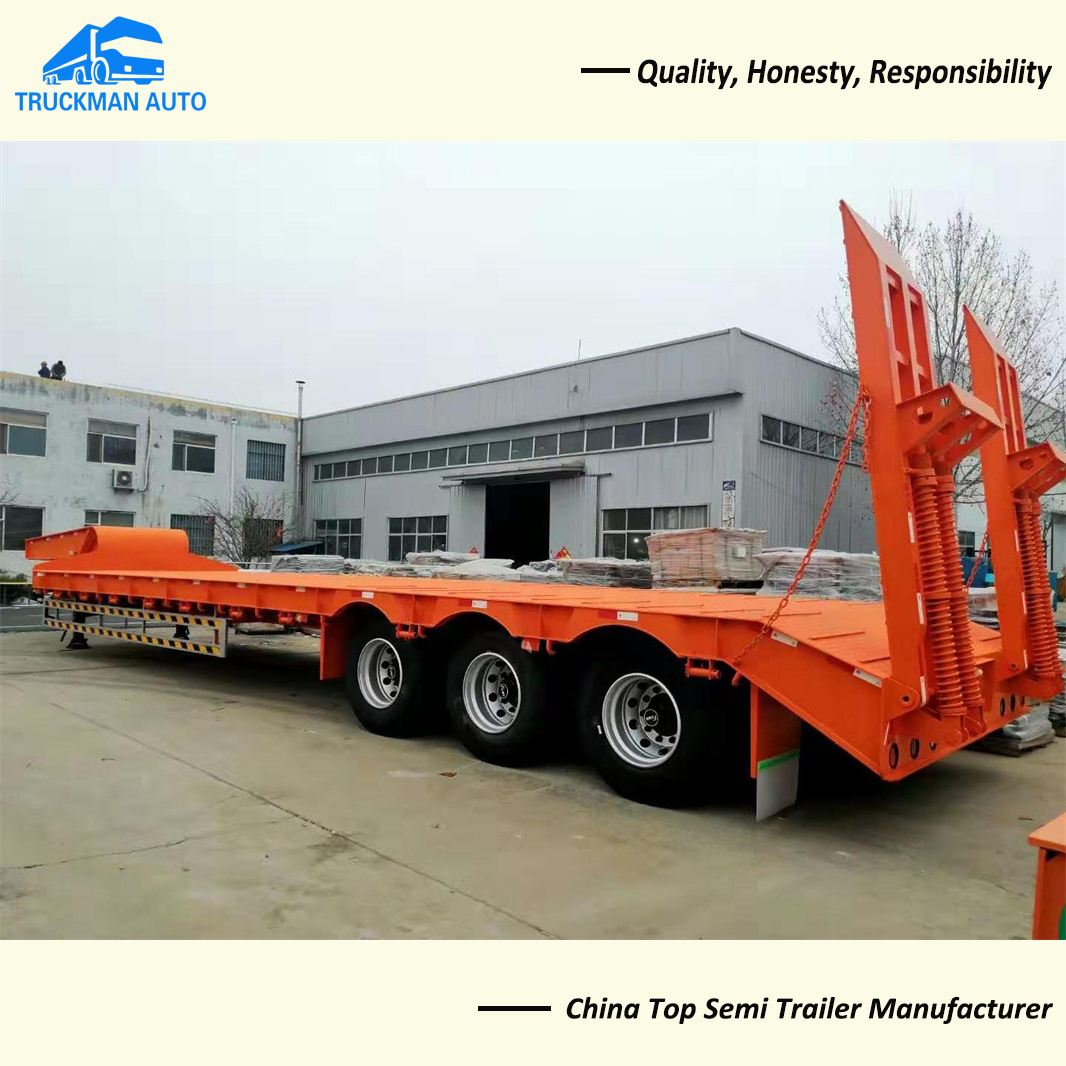

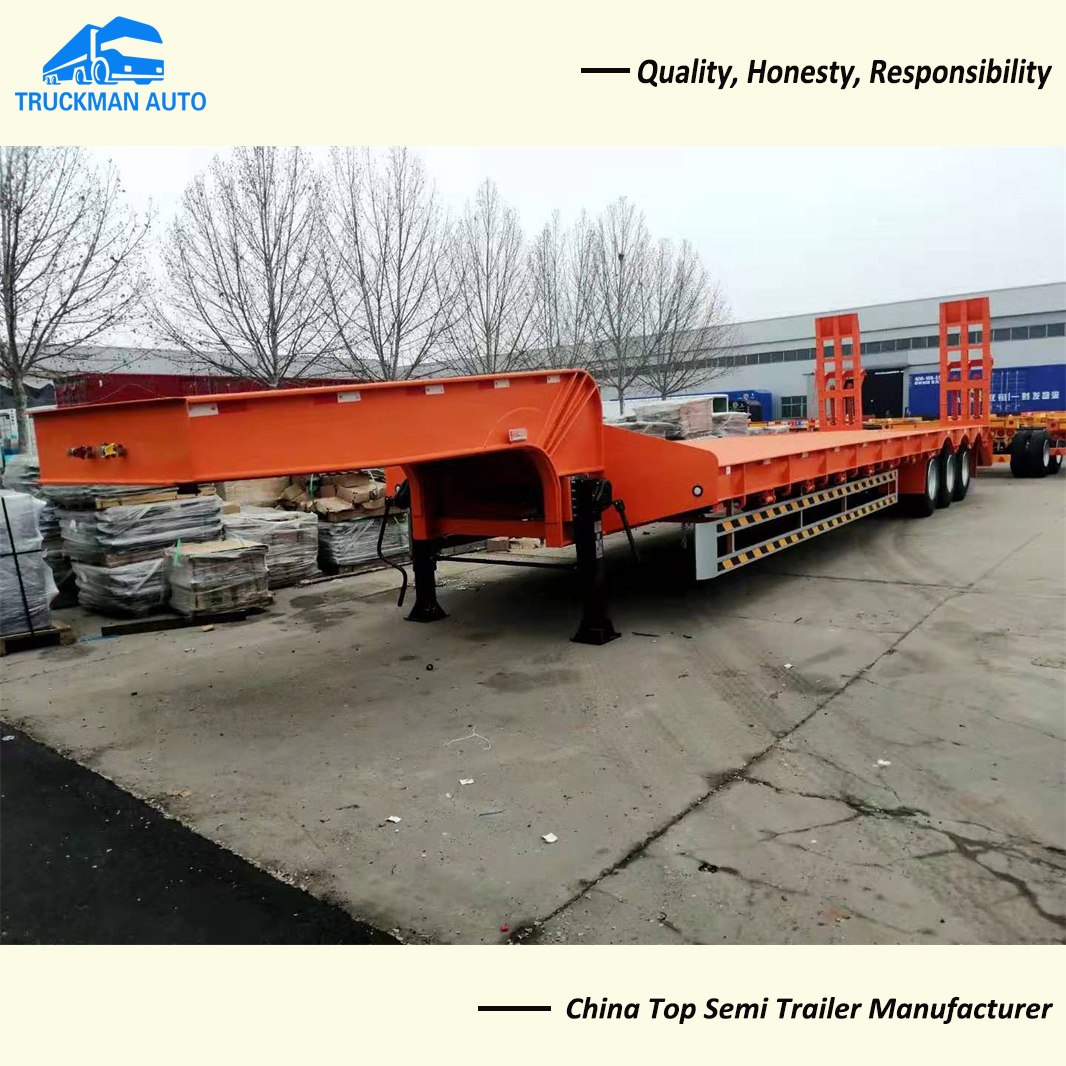

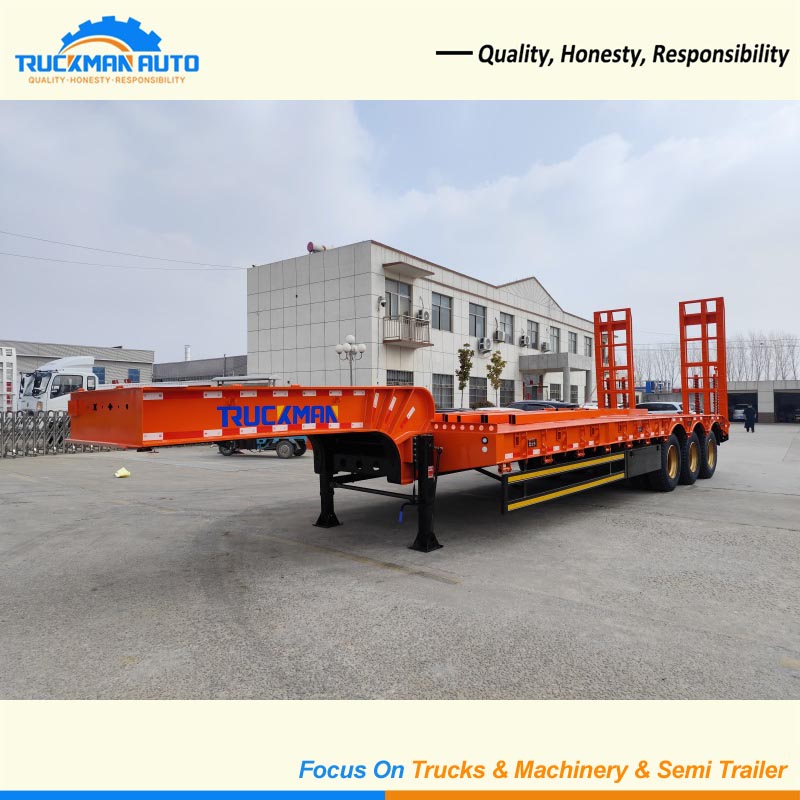

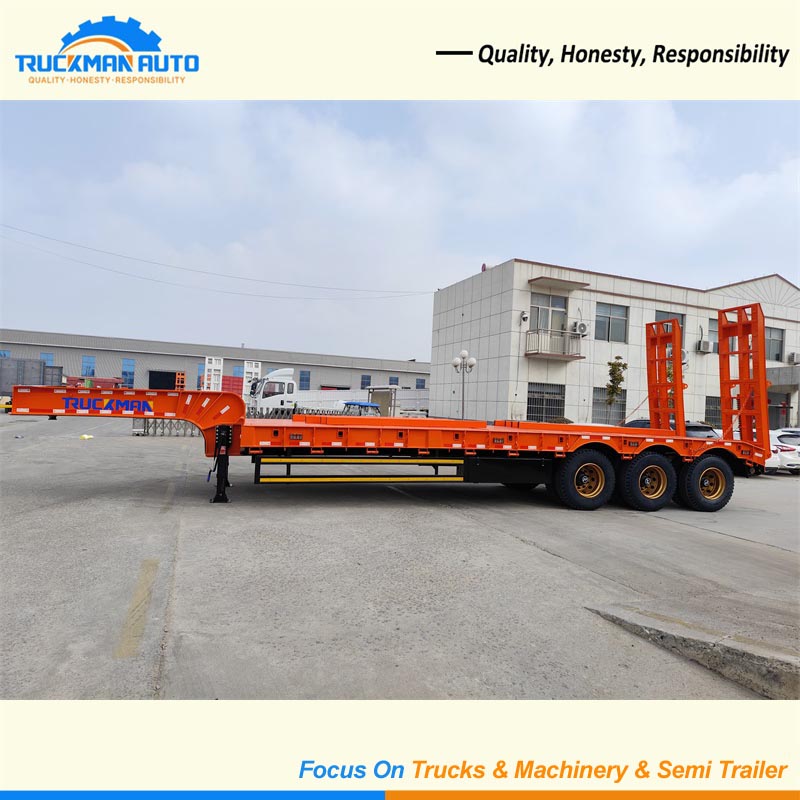

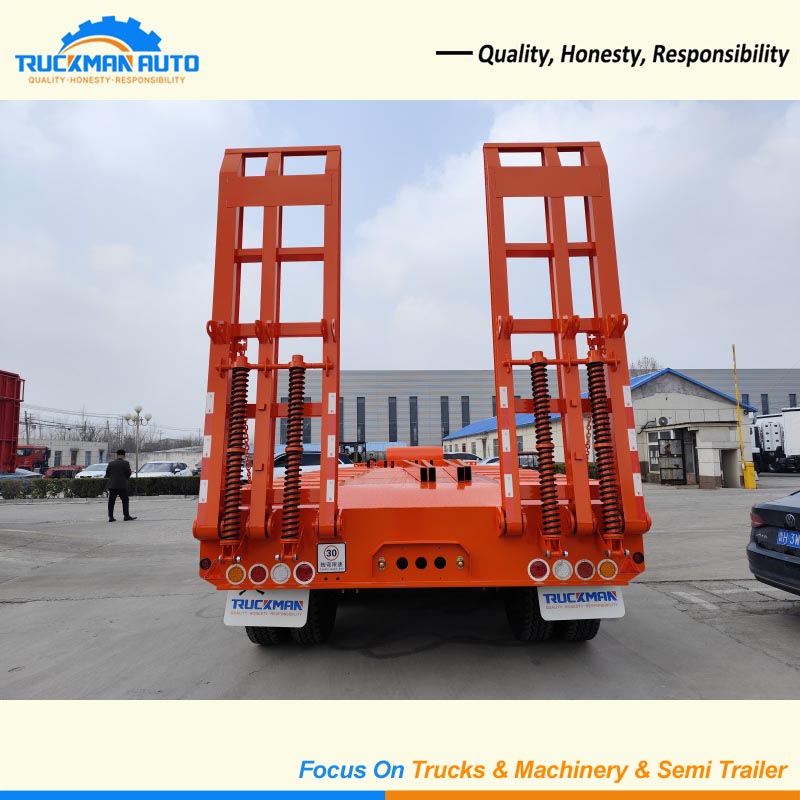

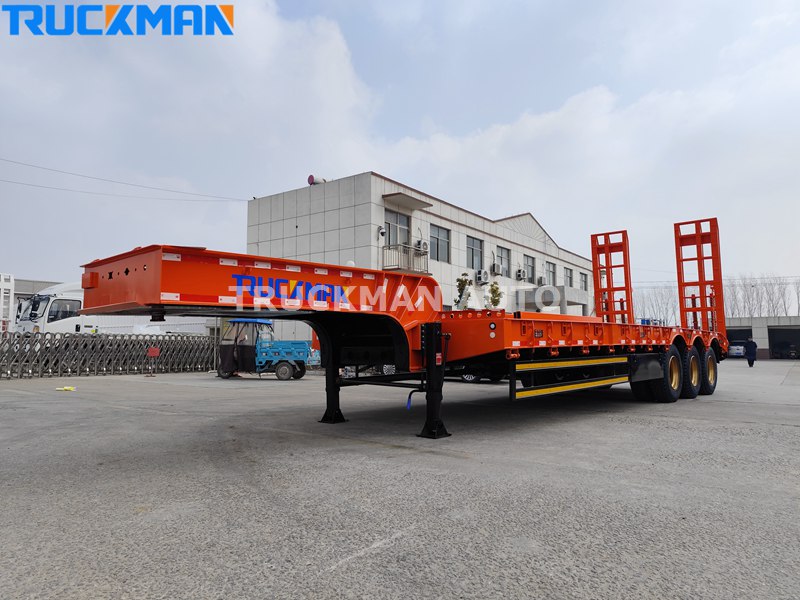

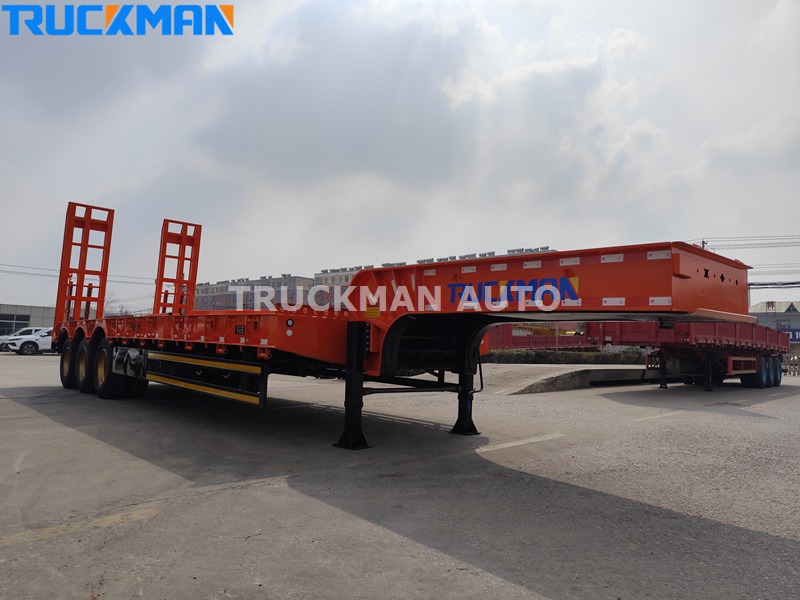

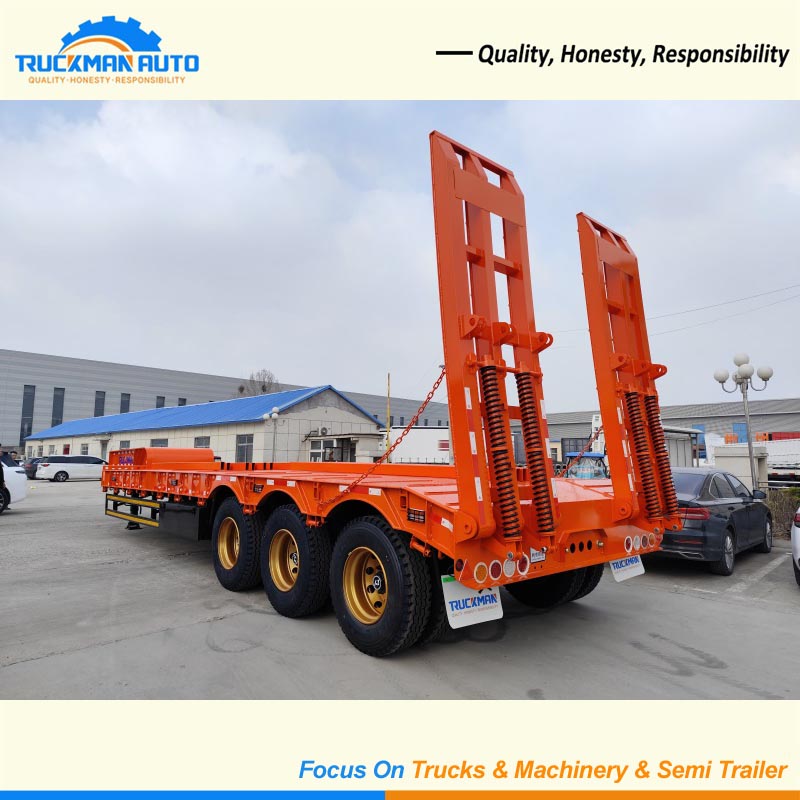

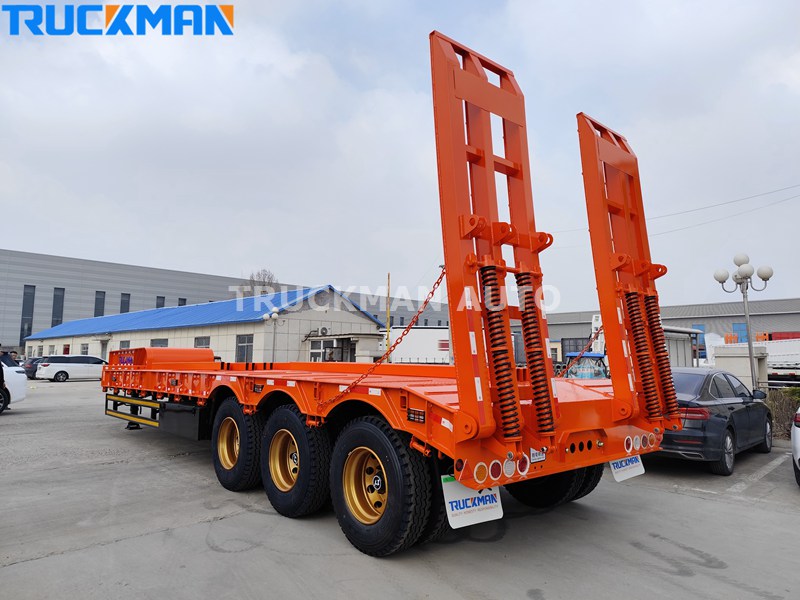

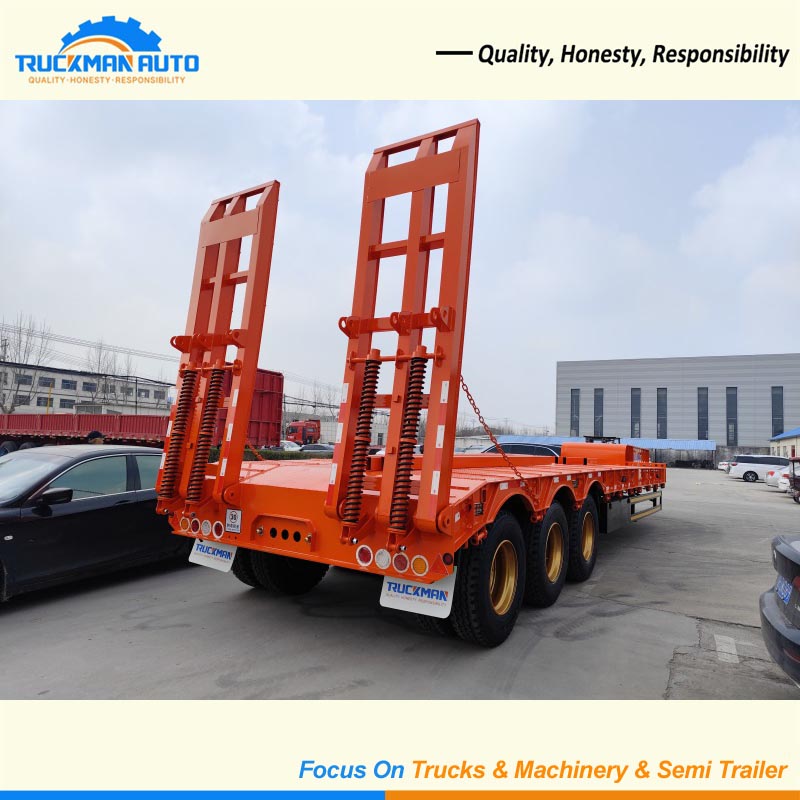

TRUCKMAN AUTO low flatbed trailer chassis adopt the heavy duty design, main parts thickness improved

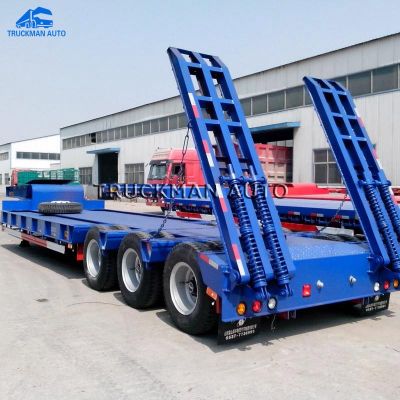

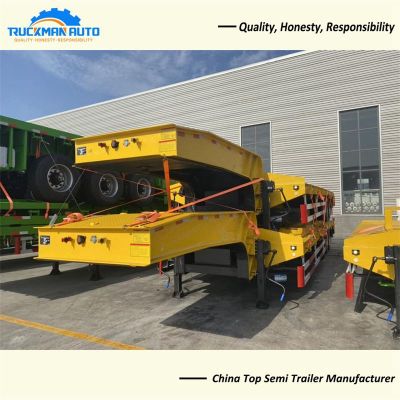

Low flatbed trailer is used to transport various machinery, including normal model low flatbed trailer, multi-line multi-axle and gooseneck detachable type low flatbed trailer. And according to Africa road condition, TRUCKMAN AUTO low flatbed trailer adopt the heavy duty chassis design, suspension, leaf spring, rim thickness improved.
Low Flatbed Trailer Main Specification.
Product Name: Low Flatbed Trailer
Loading Tons: 60,000kg
Tare Weight: 10,500kg

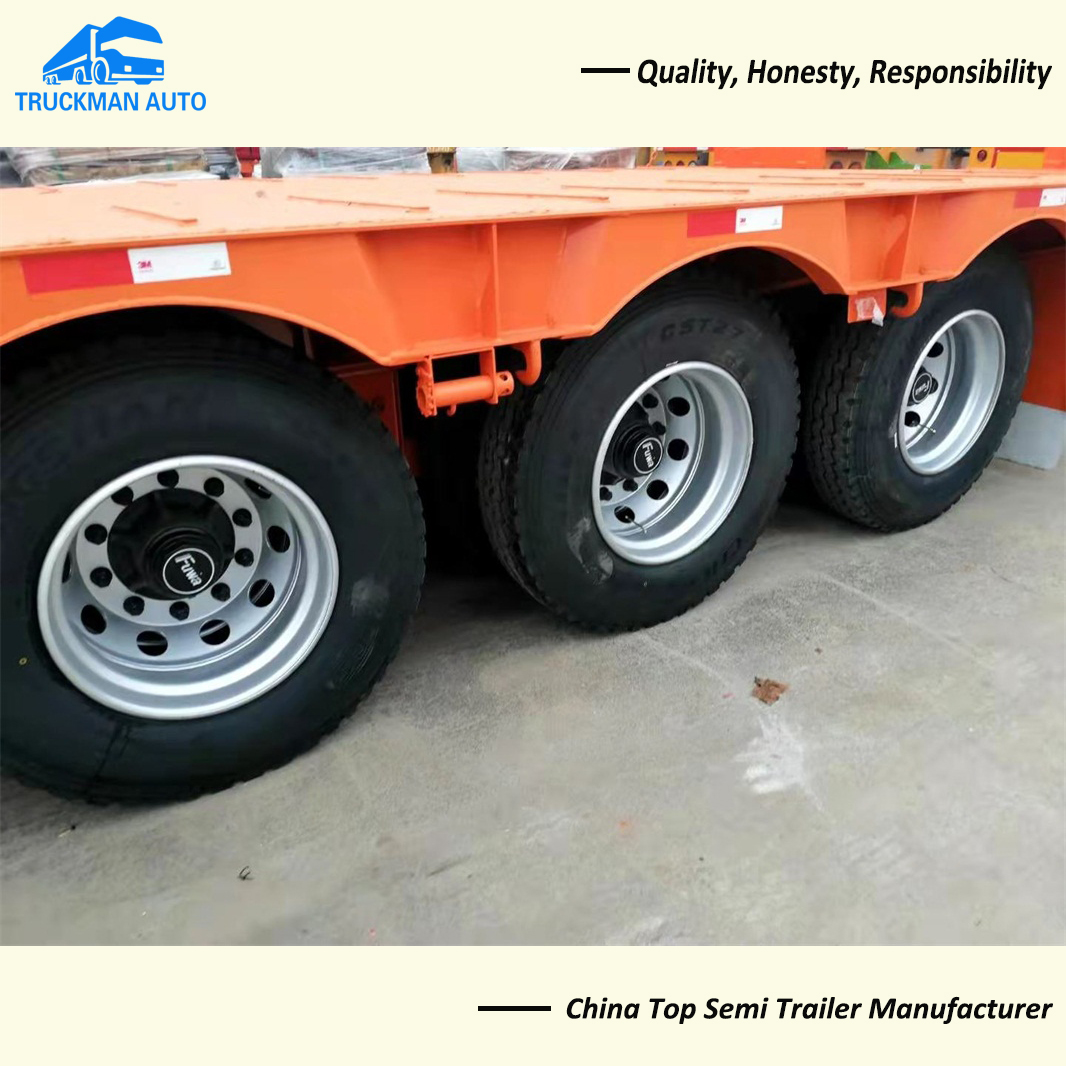

Axle: 3 axle, 3x13 tons
Suspension: mechanical suspension, America type, 8mm thickness
Leaf Spring: 90x16mmx10pcsx6sets
Rim: 16mm thickness

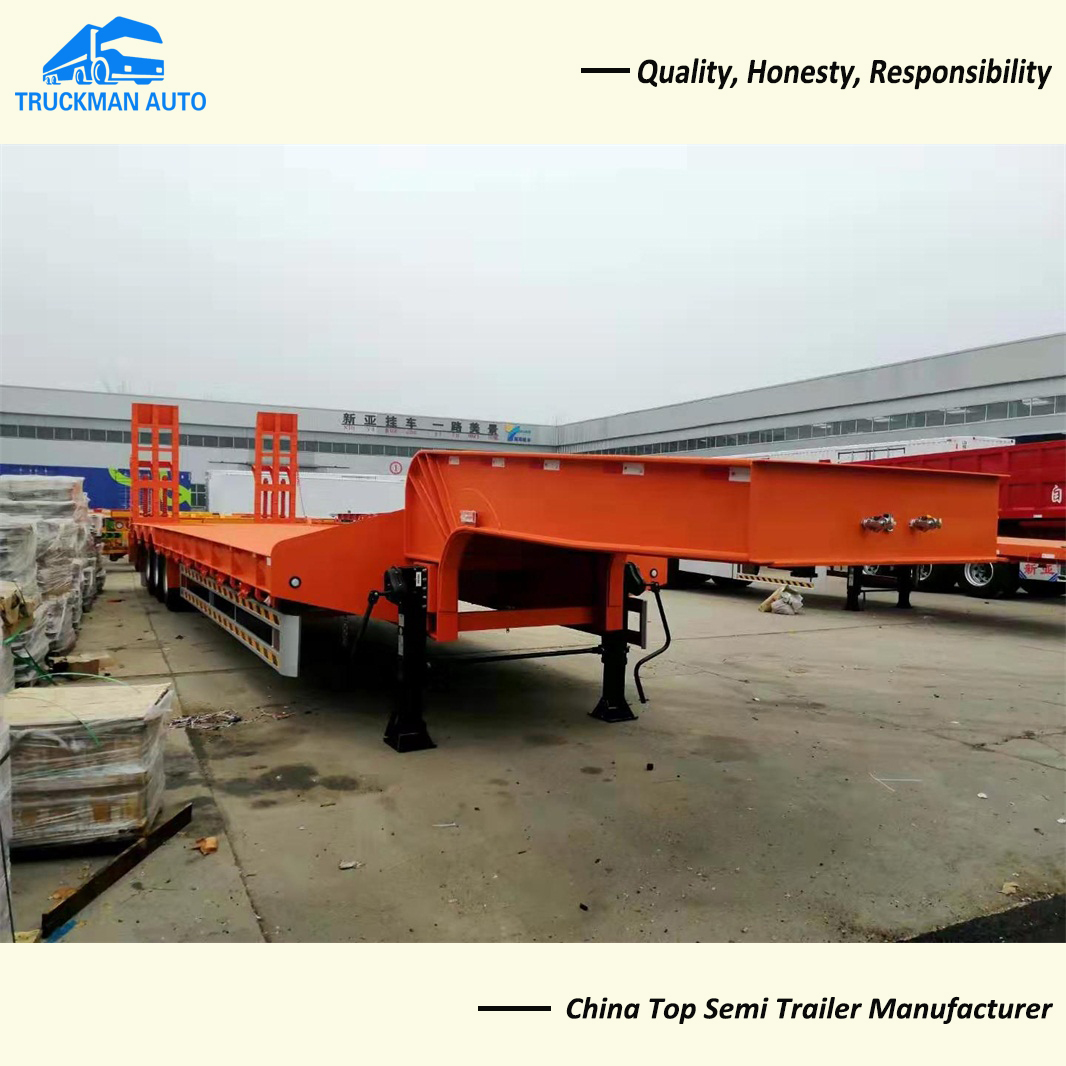

Landing Gear: JOST, 28 tons.
Tire: 12.00R20, 12 pcs, radial tire.
Brake System: WABCO brand, ABS and 6 pcs brake chamber.
Thickness Of Frame: Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam.
Working Platform: 9000x3000mm.
Dimension: 13000x3000x1500mm.
The low flatbed trailer could design according to your request.
Low Flatbed Trailer Matching Product.
Low flatbed trailer need a truck to pull, TRUCKMAN AUTO also could supply SINOTRUCK HOWO 371HP truck head and 420HP truck head, we will recommend the suitable truck head according to your low flatbed trailer loading capacity.

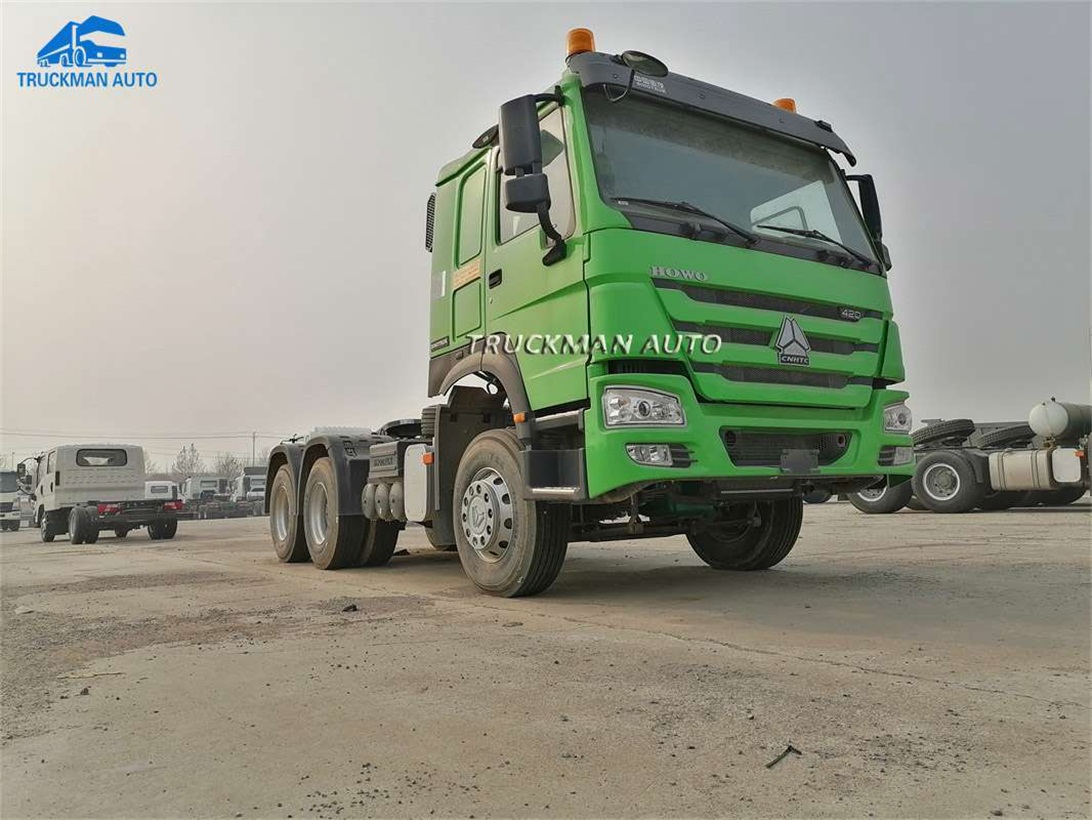

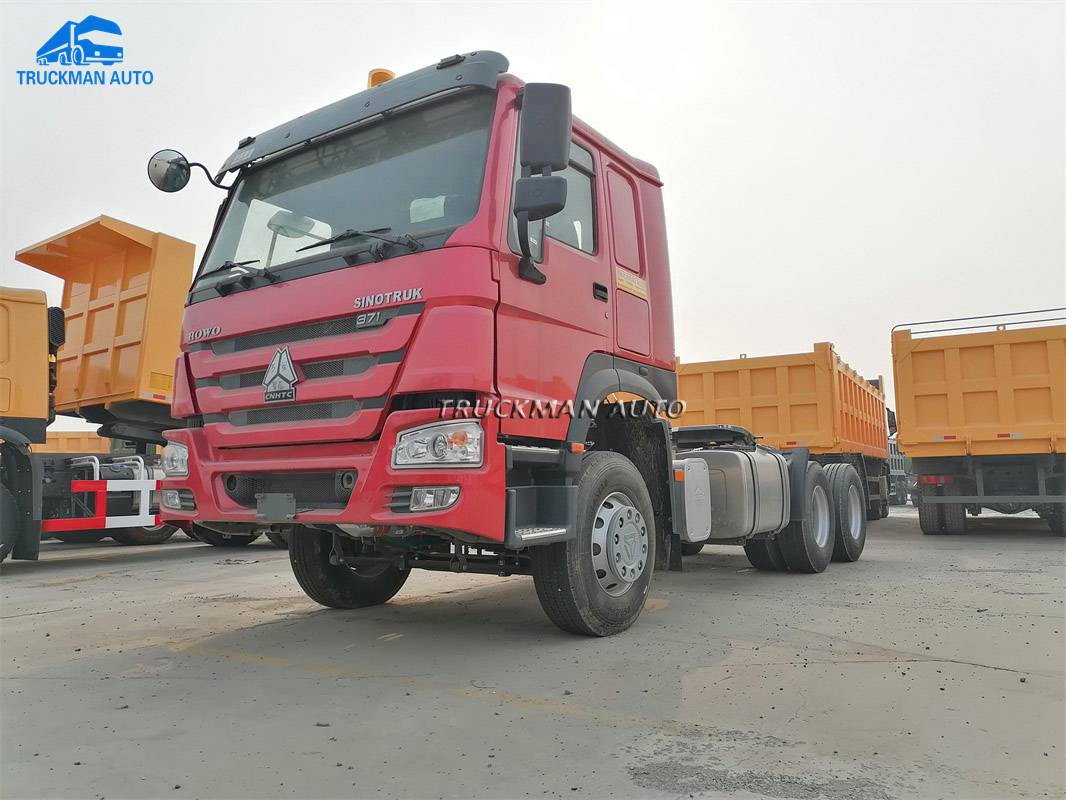

SINOTRUCK HOWO 371HP Truck Head
SINOTRUCK HOWO 420HP Truck Head
