Bitumen tank trailers are used for long, medium and short distance transportation of liquid asphalt, and are used for the addition of surface treatment layer to factory-mixed black gravel pavements in advanced pavements.

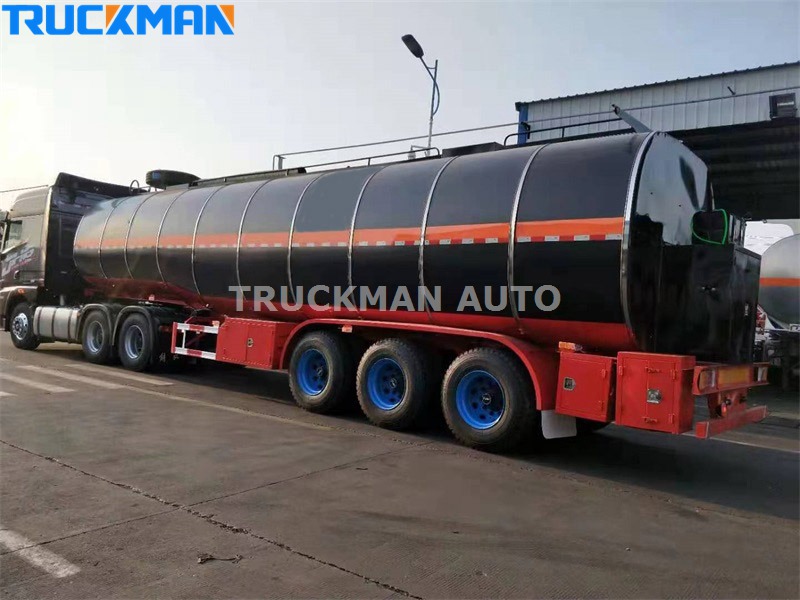

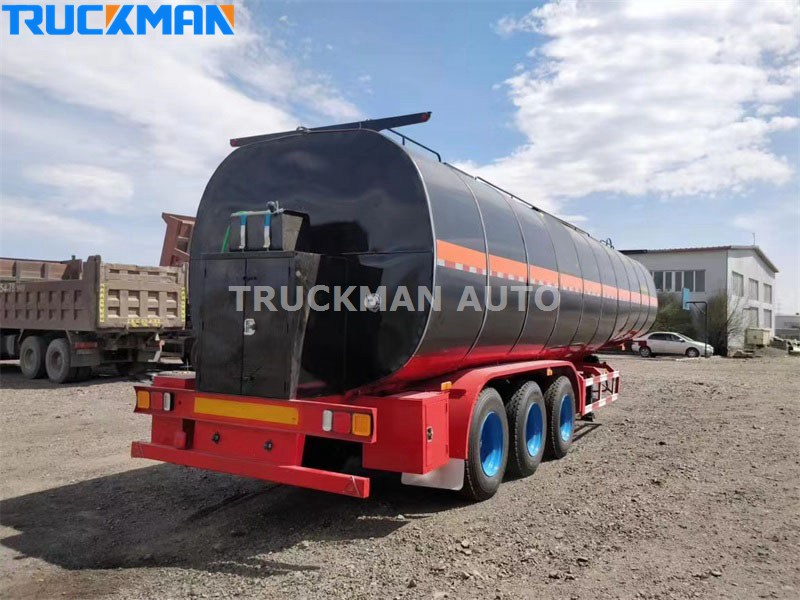

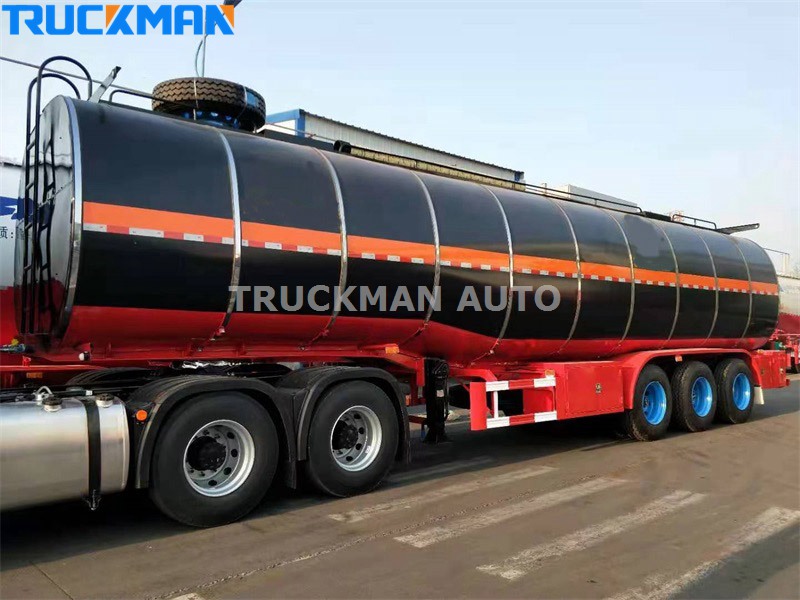

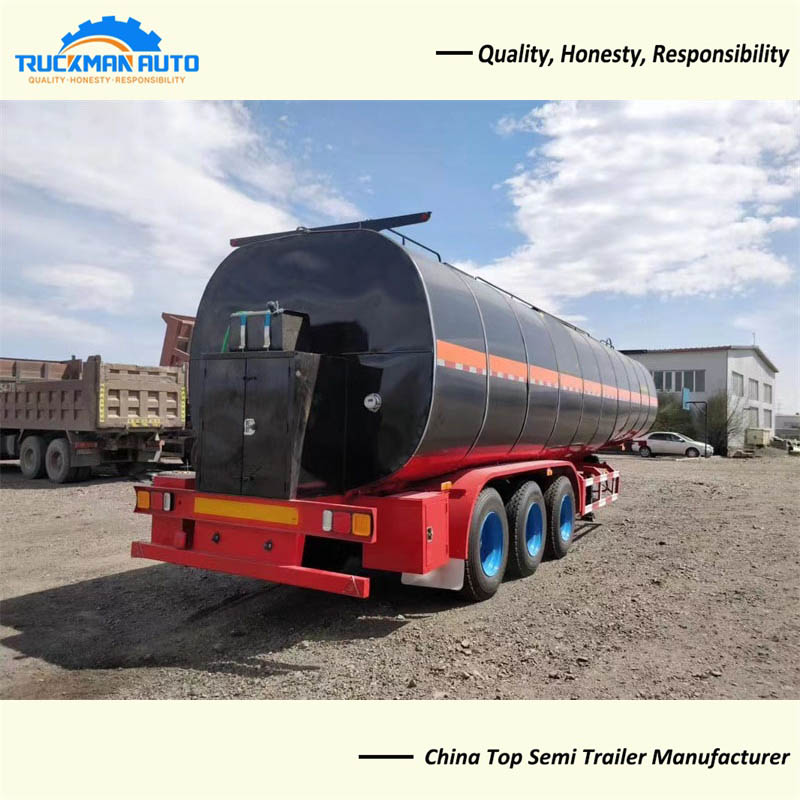

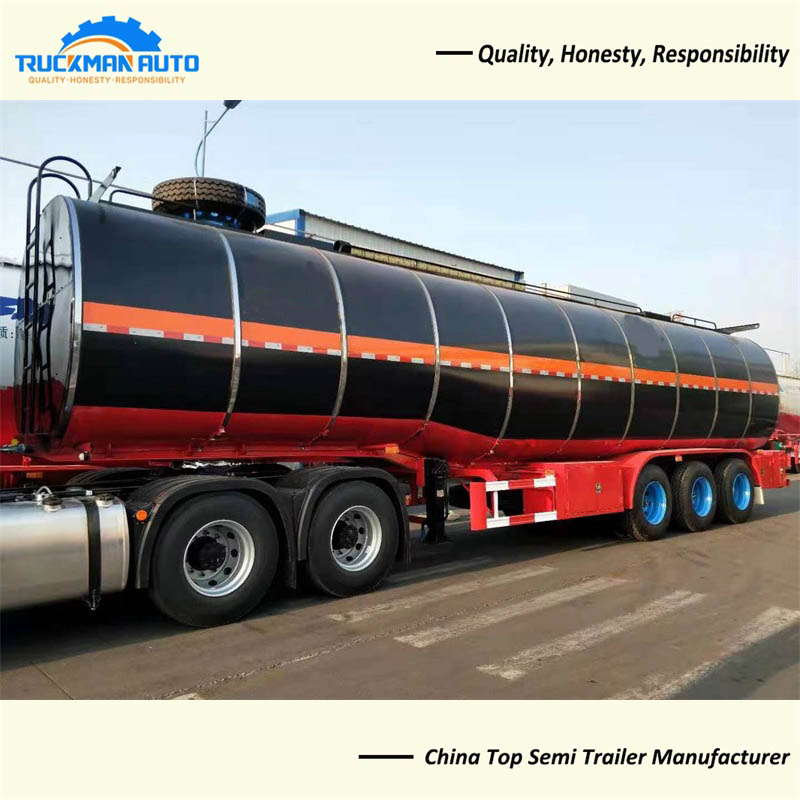

About 3 Axle 45000 Liters Bitumen Tank Trailer
The bitumen tank trailer tank section is trapezoidal, large volume, low center of gravity, compact structure. With external 220V burner heating, 1 diameter 200 heating pipe from back to front, from the top of the tank behind the front head. With 50 mm rock wool insulation and non-slip walkway on top of the tank. The asphalt tank is equipped with heating system, with imported diesel burner, good combustion quality, no pollution.
3 Axle 45000 Liters Bitumen Tank Trailer Specification
Product Name: 3 Axle 45000 Liters Bitumen Tank Trailer
Application: Asphalt transportation
Axle: 3 axle, 3x16 tons, FUWA brand
Tire: 12R22.5, 12 pcs
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Max Payload: 54000liters
Support Leg: 28 tons, FUWA brand
Dimension: 11500x2500x3800mm
3 Axle 45000 Liters Bitumen Tank Trailer specification only for your reference, we will recommend other model Bitumen Tank Trailer basic your request.
3 Axle 45000 Liters Bitumen Tank Trailer Pumping System
The bitumen tank trailer adopts multi-functional pumping system, reliable transmission, easy to operate, can meet the asphalt transportation in a variety of needs; with the level of the whole display and full alarm system, to facilitate the control of asphalt liquid level in the tank. The asphalt in the holding tank or storage tank can be sucked into the vehicle through its own oil discharge pipe, without external pumps, asphalt can be injected through the top of the tank into the hole.
3 Axle 45000 Liters Bitumen Tank Trailer Transmission System
By the extractor and pump drive, hydraulic system and other components. Generally installed in the chassis engine or transmission output port of the extractor output power to drive the hydraulic pump, for asphalt sprinkling device to provide the necessary power, the hydraulic system consists of hydraulic pumps, relief valves, reversing valves, hydraulic motors, hydraulic piping and other components.
