Robust 3 Axle 60 Tons Flatbed Semi Trailer With Front Board For Cameroon

Introduction



This 3-axle 60-ton flatbed semi-trailer with a 1.6m front board is a heavy-duty transport solution exported to the Cameroon logistics market, specifically for cargo transshipment from Douala port to inland areas.

Engineered for high-intensity port operations and overloaded road conditions, it feathers massive load-bearing capacity, operational efficiency, and transport safety.

It is highly suitable for transporting 20ft/40ft containers, steel pipes, and heavy construction materials. The unique 1.6m front board and reinforced chassis significantly enhance driving safety and vehicle lifespan under harsh environments.





What Is a 3 Axle Flatbed Semi Trailer with Front Board?



This heavy-duty flatbed trailer is built with three 13-ton ZY axles, a heavily reinforced chassis, and a protective front board to handle extreme logistics. Core features include:

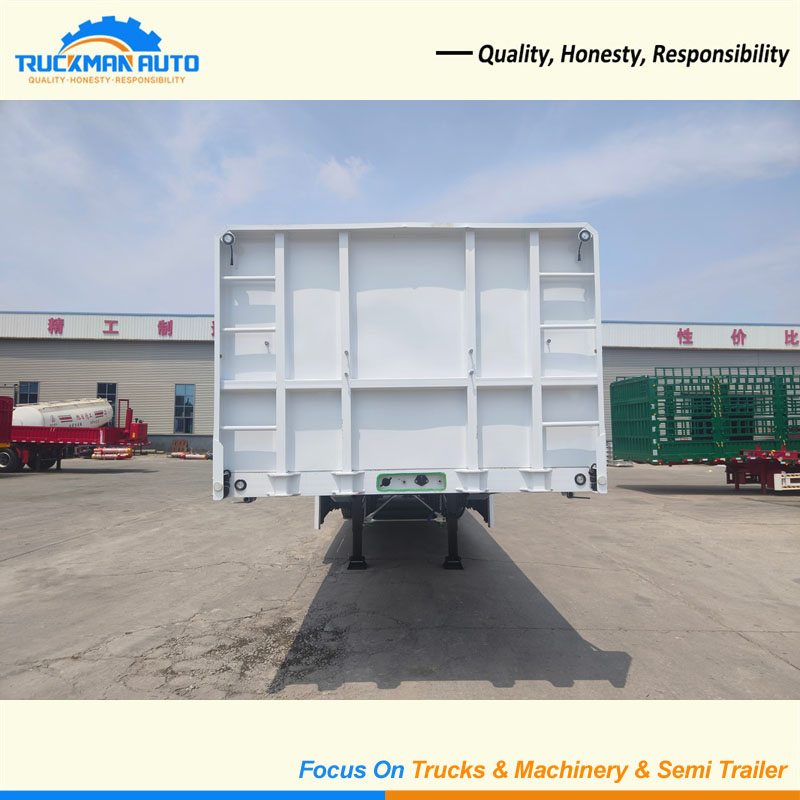

● 1.6m Safety Front Board: Prevents bulk cargo from sliding forward during sudden braking, ensuring the tractor cab and driver remain safe.

● Reinforced 4-Main-Beam Gooseneck: Upgraded from the standard 2 beams, this 4-beam structure exponentially increases bending resistance, completely eliminating the risk of a broken gooseneck under extreme loads.

● Anti-Tear Container Locks: Special reinforcement plates welded around the twist locks resist immense lateral tearing forces on bumpy roads, preventing lock deformation or detachment.

● High-Density Chassis: Features a heay duty main beam. All side and cross braces use 10# channel steel with highly densified spacing (under 40cm) for maximum structural stability.

● Premium Components: Equipped with globally recognized parts for maximum reliability, including WABCO brakes, FUWA 28-ton landing gear, and a JOST 90# kingpin.





Technical Specifications



Feature	Value
Capacity	60 Tons
Axle	3 x 13 Tons, ZY brand
Tyre	13R22.5
Rim	16mm thick
Main Beam	Upper 14mm, down 16mm, middle 8mm, height 500mm
Side Beam	16#
Cross Beam & Side Support	10# Channel steel, side support closed spacing
Leaf Spring	90mmx16mmx10pcs
Landing Gear	FUWA 28 Tons
Kingpin	JOST 90#
Other	1.6m Front board



Why It Is Suitable For Cameroon Logistic Project



1. Cameroon Inland Road Conditions

Transport routes extending from Douala Port to inland regions frequently face the following challenges:

●Uneven road surfaces featuring numerous unpaved dirt roads

●Persistent potholes and undulating road sections

●Severe shock and stress applied during heavy-load operations

Coupled with 13R22.5 tires and thickened leaf springs, its core advantage is the 4-main-beam gooseneck. This provides unmatched rigidity for heavy starts and deep potholes, completely eliminating the fracture risks of standard 2-beam designs and ensuring long-term chassis durability.



2. Overload & Bulk Cargo Safety Risks

When transporting a mix of containers, heavy construction materials, or steel pipes in Cameroon, fleets often face the following structural and safety risks:

●Long bulk cargo sliding forward and crashing into the cab during emergency braking

●Massive lateral tearing forces exerted on the chassis by fully loaded containers when cornering or driving on uneven roads

●Severe tearing force on the twist locks caused by bumpy road conditions

The 1.6m front board prevents fatal cargo shifts, while 16# side beams and reinforced container locks exponentially increase tear resistance. This guarantees absolute container stability and chassis integrity even during severe swaying.



3. Brand-Name Components Ensure Local Maintainability

Long-distance transport in Central Africa places extremely high demands on vehicle maintenance efficiency:

●Limited repair facilities available in remote regions

●Unexpected downtime caused by substandard spare parts

●Extended lead times for procuring consumable parts

Using global brands like WABCO, FUWA, and JOST ensures a minimal failure rate. It also guarantees that replacement parts are readily available in Cameroon's local markets, drastically reducing maintenance downtime and maximizing fleet efficiency.





Comparison of other standard load trailer and TRUCKMAN heavy load trailer





For the complex operating conditions in Cameroon, the TRUCKMAN container semi-trailer, featuring a 4-main-beam gooseneck, reinforced container locks, and a safety front board, is undoubtedly the safest and most durable top-tier choice.

Do you also need a tractor truck, too? Please click here.



Export Case

Country: Cameroon

Client Type: Logistics & Transport Fleet

Quantity: 3 units

Application: Inland transit of containers, bagged cement, and steel pipes from Douala Port.

Feedback: After months of rigorous testing, this semi-trailer has proven its extremely high reliability. The client specifically praised the  incredibly sturdy 4-main-beam gooseneck; even when fully loaded with 60 tons of heavy cargo on potholed dirt roads, the front connection feels perfectly solid.

For more information, please visit



FAQ About 3 Axle 60 Tons Flatbed Semi Trailer.



Q: Who are we?

A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China



Q: How long is the delivery time for shipping of 3 Axle Flat Bed Trailer?

A: It depends on the order quantity, and generally takes 15-40 days.



Q: How do we ensure quality of 60 Tons Flatbed Semi Trailer?

A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.



Q: What’s our MOQ of Container Flatbed Semi Trailer?

A: For most products, the MOQ is 1 unit.
