Dump semi trailer is suitable for the transportation of bulk and scattered goods such as coal, ore, building materials, etc. It improves the transportation efficiency and convenient unloading.

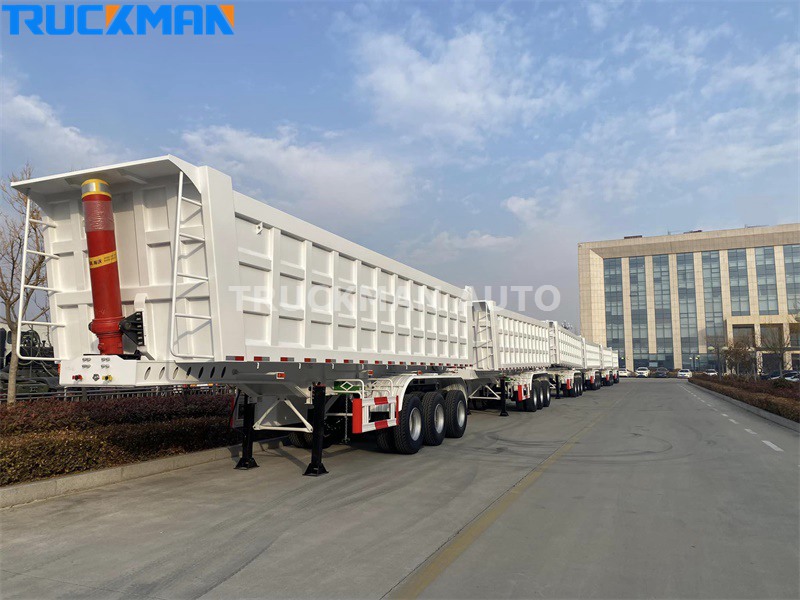

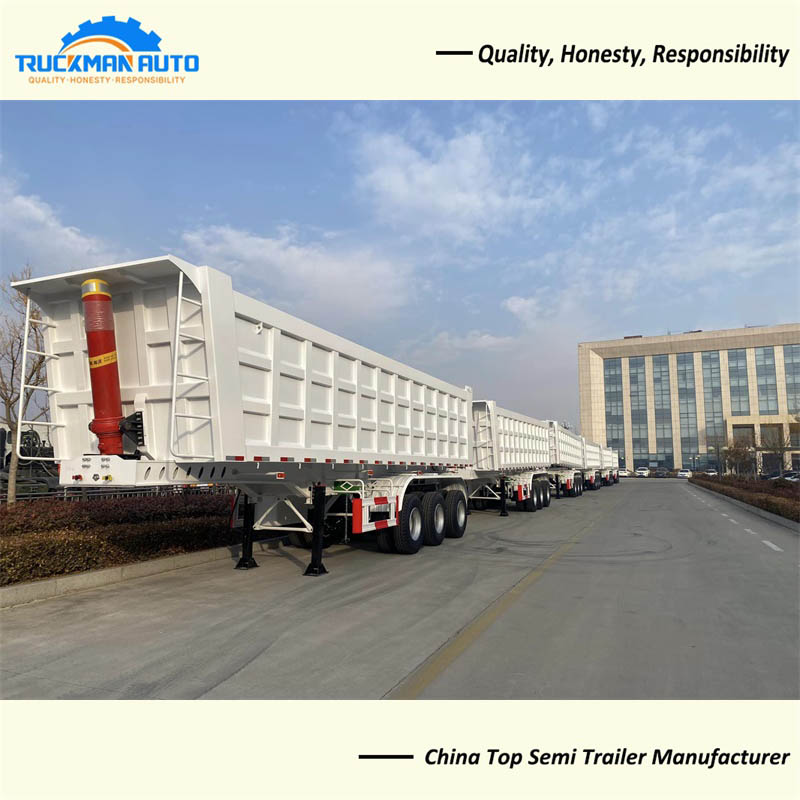

About 3 Axle Dump Semi Trailer
The main parts of this dump semi trailer are processed by advanced equipments, the longitudinal beam is fully automatic submerged arc welded, and the assembly machine is used for the precise assembly of wheel axle and steel plate spring.
3 Axle Dump Semi Trailer Specification
Axle: 3x16 tons, 3 axle, FUWA brand
Application: Construction machinery transport
Tire: 315/80R22.5, 12 pcs, TRIANGLE brand
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Loading Capacity: 60 tons
Support Leg: 28 tons, JOST brand
Dimension: 11500x2500x3500mm
The 3 Axle Dump Semi Trailer specification only for your reference, we can manufacture other model Dump Semi Trailer basic your request.

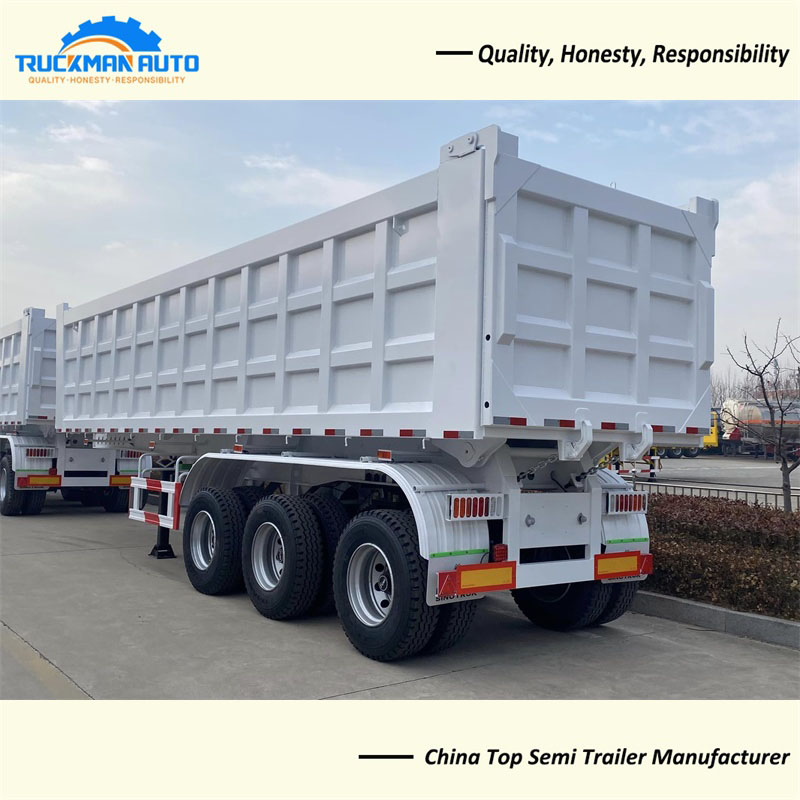

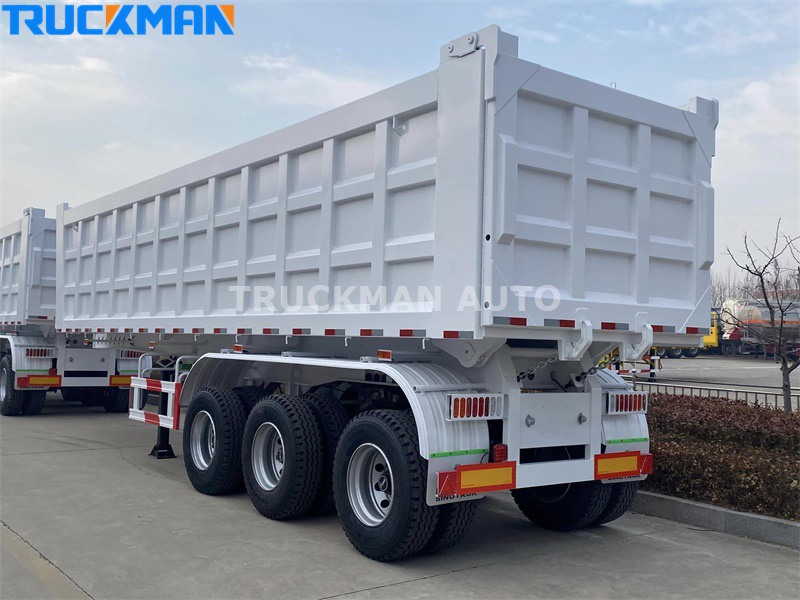

3 Axle Dump Semi Trailer Cargo Container
The longitudinal beams of this dump semi trailer compartment are welded with high quality manganese plate, and the cargo container has rectangular bucket, U-type bucket and mining bucket. The cargo container has high strength, strong lifting force, rigidity, good toughness, strong bearing capacity and no permanent deformation.

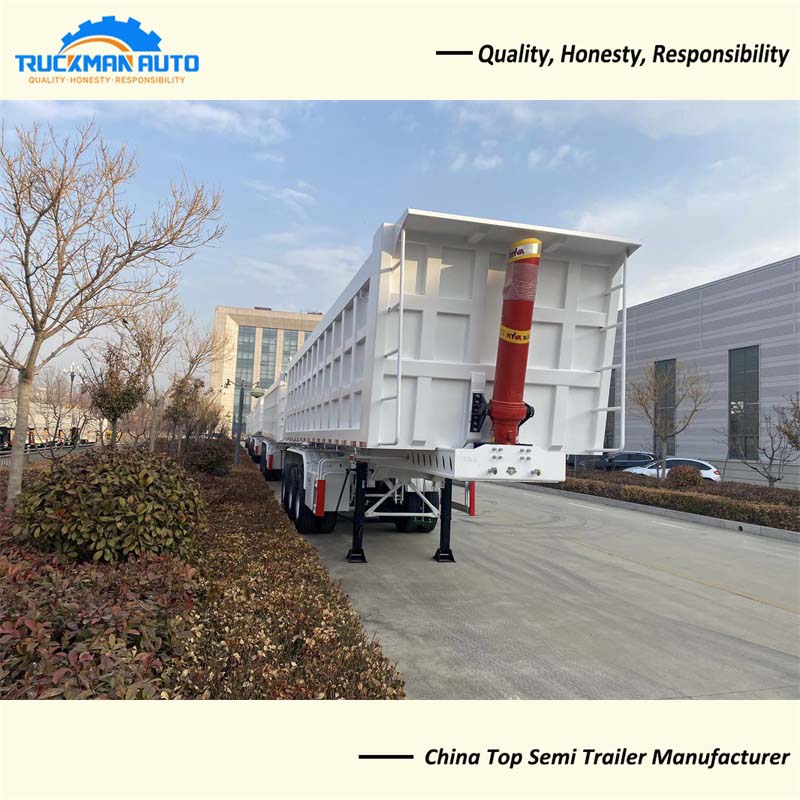

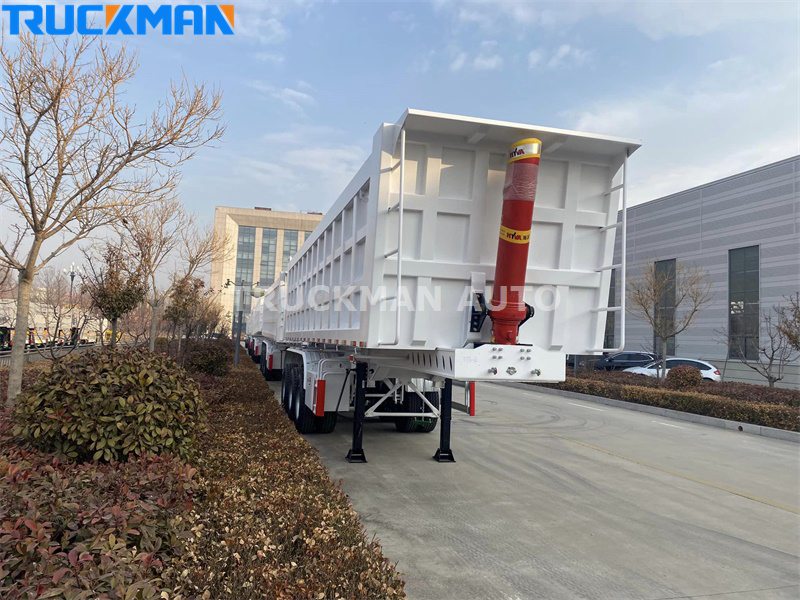

3 Axle Dump Semi Trailer Lifting Cylinder
Dump semi trailer adopts HYVA lifting cylinder, which is more reliable, stronger, more efficient, more durable and safer for customers to improve the efficiency, reliability and safety of the system, which is more adaptable to the harsh conditions of the mine. With good stability, it can prolong the service life of the whole lifting system and dump semi trailer.
