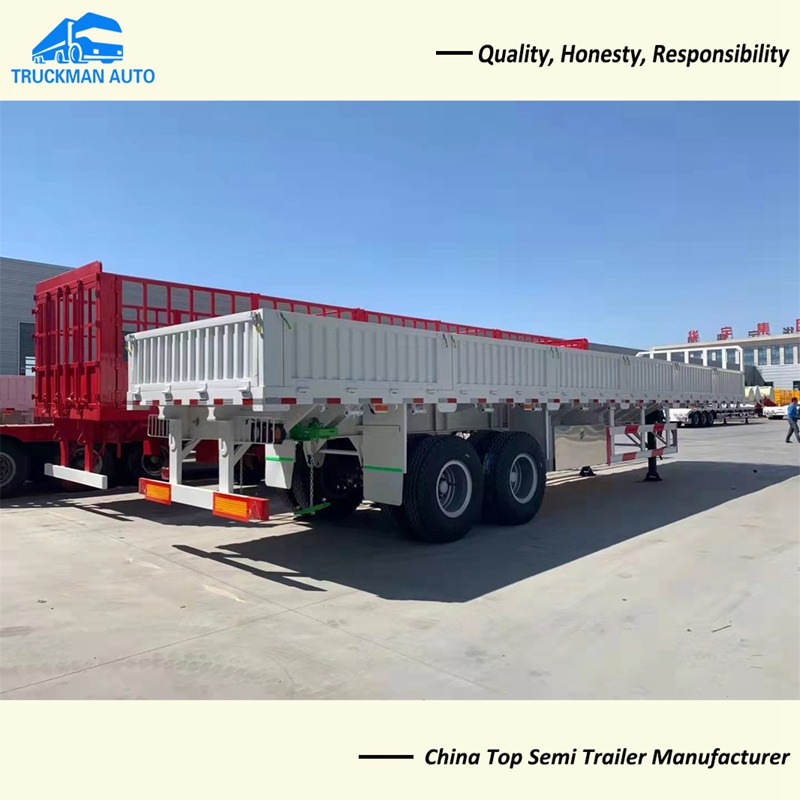

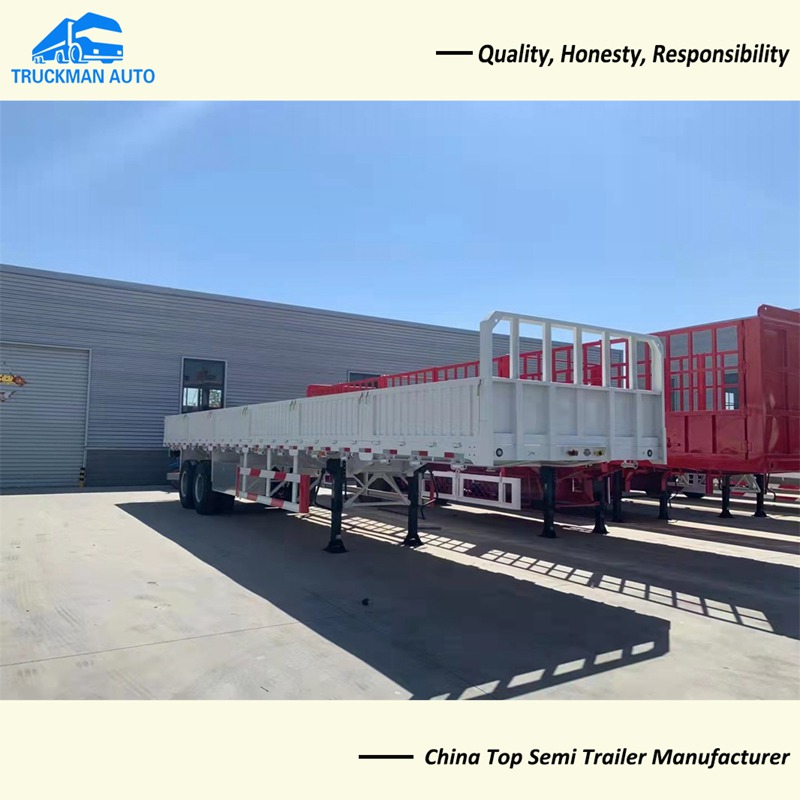

The side wall semi trailer is mainly applicable to the medium and long-distance transportation of medium and heavy goods and bulk cargoes.
The side wall semi trailer is mainly applicable to the medium and long-distance transportation of medium and heavy goods and bulk cargoes.
opting for high tensile steel Q355, welded by automatic submerged-Arc processes.
Top flange 14mm, width 140mm; middle flange 6mm; Bottom flange 16mm
Axles: 2 axles, FUWA/BPW brand, 16 tons capacity
Suspension:Leaf spring, or air bag
Tire: 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 ,13R22.5optional Brand is Triangle,Linglong,Chaoyang,CHENGSHAN
Wheel rim:8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional, or as required
Landing gear: Two-speed, manual operation , heavy duty landing gear,Jost brand
Brake System: WABCO RE6 relay valve; T30/30 Spring brake chamber; 40L air tanks
Painting:Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime
Accessories:One standard tool box,spare carriers
