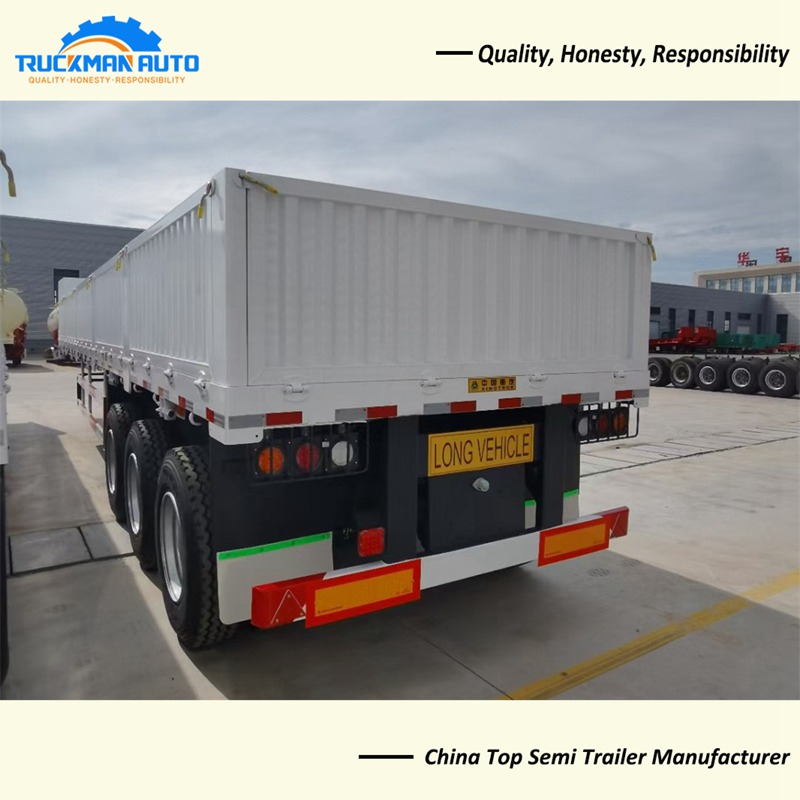

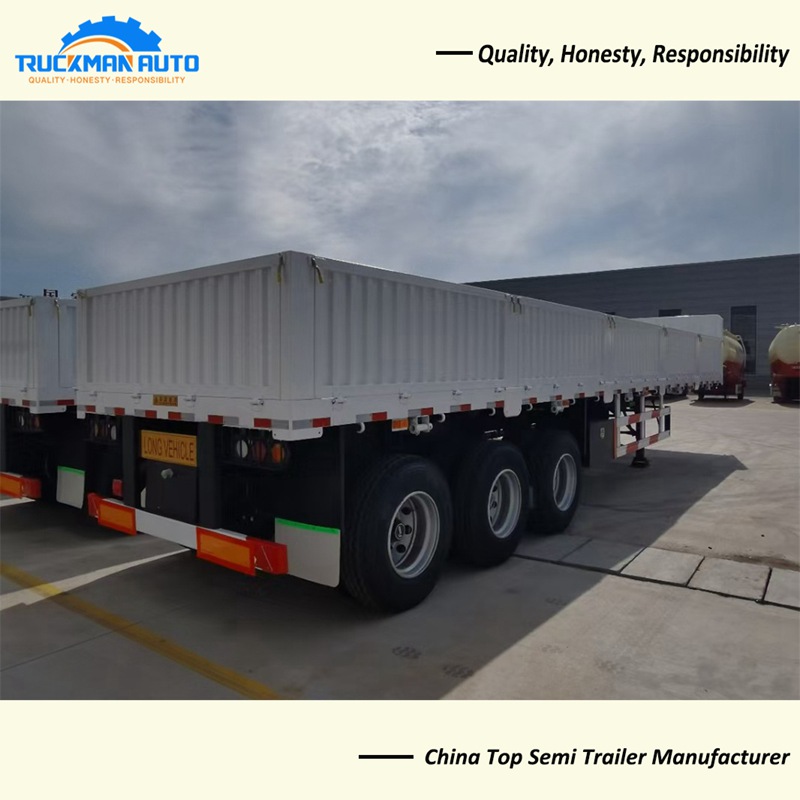

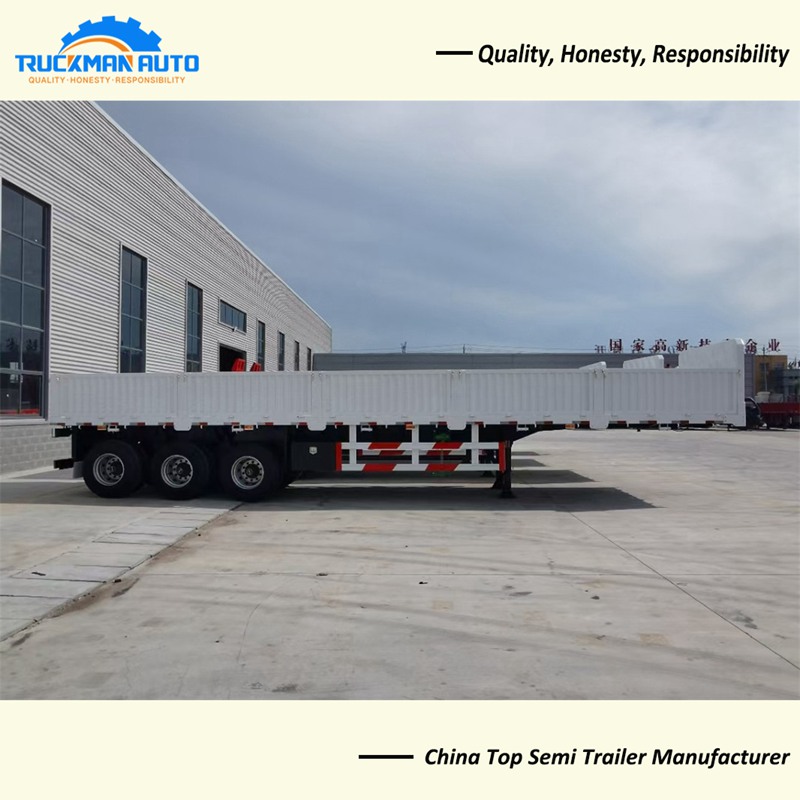

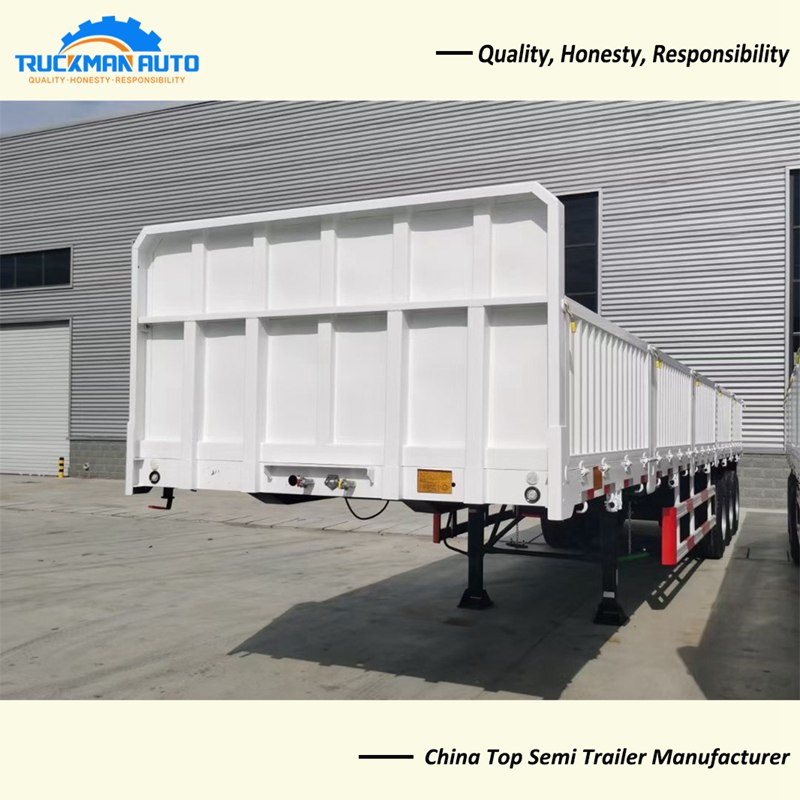

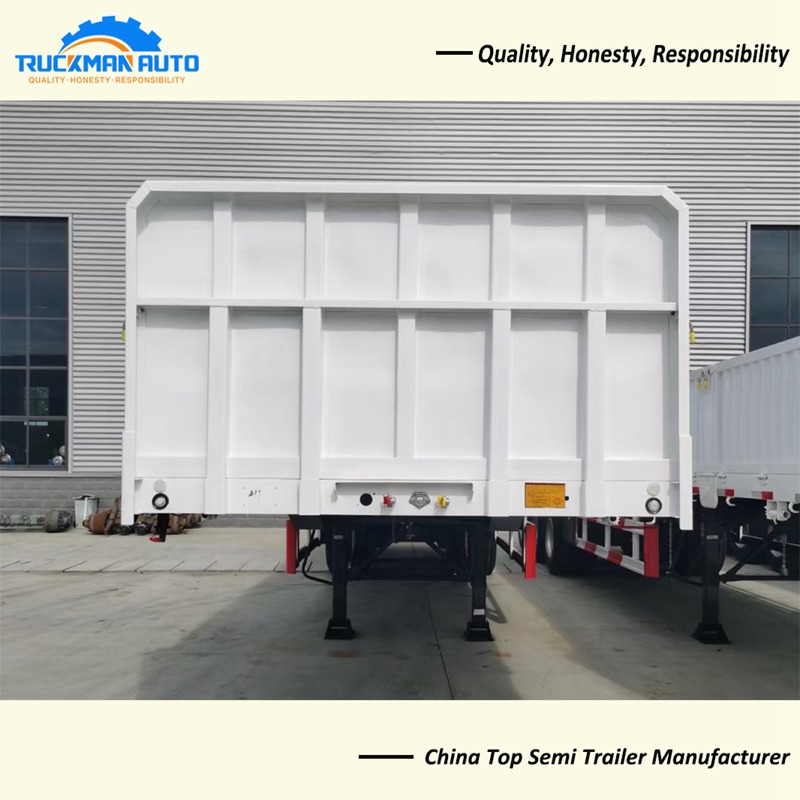

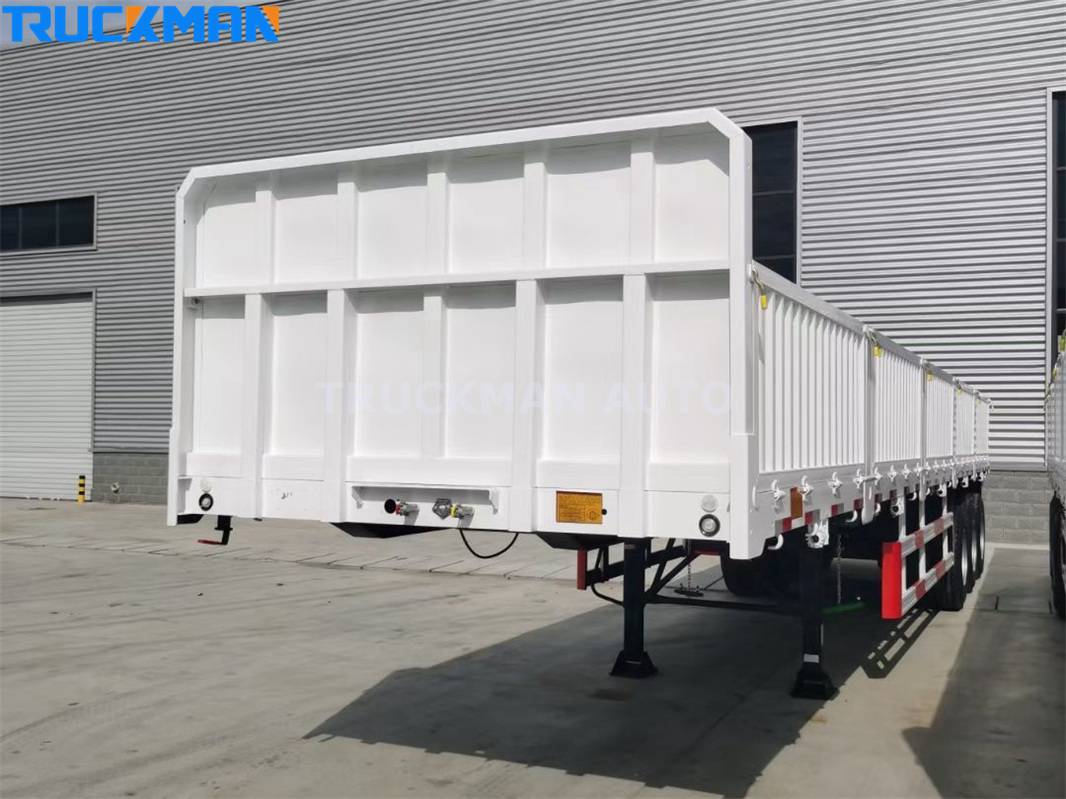

The 3 axle drop side wall trailer can transport 2x20FT and 1x40FT container, after add 8 or 12 pcs container lock. The chassis adopt the enhanced parts, like 8mm thickness suspension and 18mm wheel rim etc.
3 Axle Drop Side Wall Trailer Advantage
1. Use heavy duty model suspension, rim and leaf spring, make chassis more stronger.
2. Improved rust resistance through shot blasting and polyester paint spraying.
3. With 800mm-1400mm side wall, can remove when transport container.
4. Adopt the laser cutting tech, the error is less than 0.01mm.
3 Axle Drop Side Wall Trailer Specification
Dimension: 12500x2560x3240mm
Axle: 3x16 tons, ZY brand
Tire: 315/80R22.5, 12 pcs, LINGLONG brand
Main Beam: lower 16mm, middle 10mm, upper 14mm
Support Leg: JOST brand, 28 tons
Tractor Pin: JOST brand, 90#
Suspension: 8mm thickness, heavy duty loading
Leaf Spring: 90x16mmx10pcs
Wheel Rim: 18mm
Cargo Box: 12300x2300x1500mm
Brake Valve: WABCO brand
The drop side wall trailer specification only for your reference, we can manufacture other model side wall trailer basic your request.
3 Axle Drop Side Wall Trailer Loading Platform

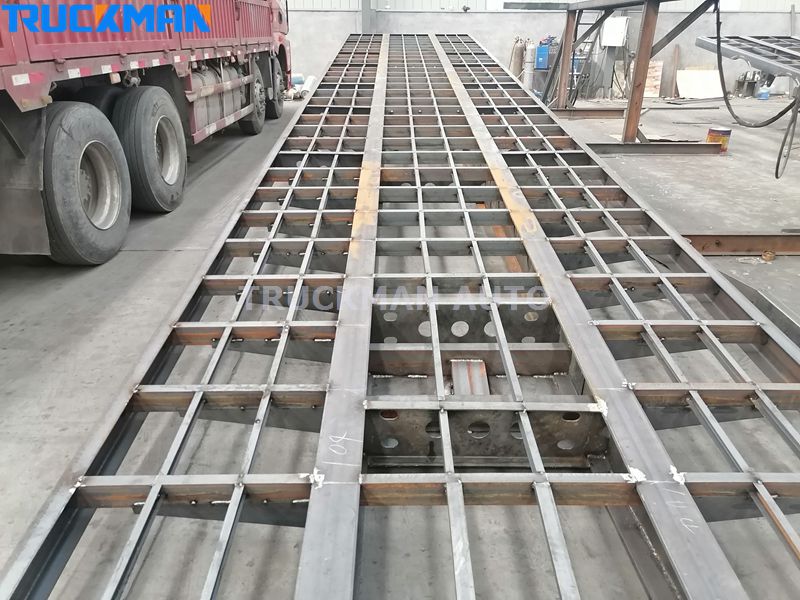

The bottom plate of the cargo platform is designed with a checker plate, thickness is 3mm or 4mm, which can enhance the friction between the cargo and the cargo platform and prevent the cargo from swaying back and forth during transportation. The and there are multiple through beams at the bottom of the bottom plate to support, the interval is about 40cm, to prevent the bottom plate from upturning after a long time of use.
