3 Axles 80 Tons Container Flatbed Trailer

About 3 Axles 80 Tons Container Flatbed Trailer

The steel of this container flatbed trailer adopts laser cutting technology, which can realize high-precision cutting, ensure cutting quality, speed up cutting speed and shorten production time. Our trailers are made of famous brand parts, which are more durable and can improve the overall service life of the semi-trailer. Timely and guaranteed after-sales service can solve customers' problems faster. Our trailers are sprayed with wax before transportation and covered with waterproof tarpaulin during transportation, which can ensure that the trailers do not corrode and rust.

3 Axles 80 Tons Container Flatbed Trailer Specification

Product Name: 3 Axles 80 Tons Container Flatbed Trailer

Application: Container transportation

Axle: 3 axle, 3x16 tons, ZY brand

Tire: 13R22.5, 12 pcs, TRIANGLE brand

Kingpin: 3.5 inch, JOST brand

Brake System: WABCO brand

Support Leg: 28 tons, JOST brand

Dimension: 12500x2500x1550mm

3 Axles 80 Tons Container Flatbed Trailer specification only for your reference, we will recommend other model Container Flatbed Trailer basic your request.

3 Axles 80 Tons Container Flatbed Trailer Tire

The trailer uses 13R22.5 tubeless tires for superior puncture resistance. Due to the absence of tubeless tires and cushioning belts, the weight of the wheel assembly is greatly reduced and the rolling resistance is lowered, thus greatly reducing fuel consumption. The design of the tubeless tire prevents the tire from bursting suddenly when punctured, while continuous brake braking in hot weather does not cause the tire to burst. The large diameter of this tire enhances the chassis passing ability and has a high load carrying capacity compared to other tires. It also features a gold-colored steel rim for increased ornamental appeal.

3 Axles 80 Tons Container Flatbed Trailer Detailed Design

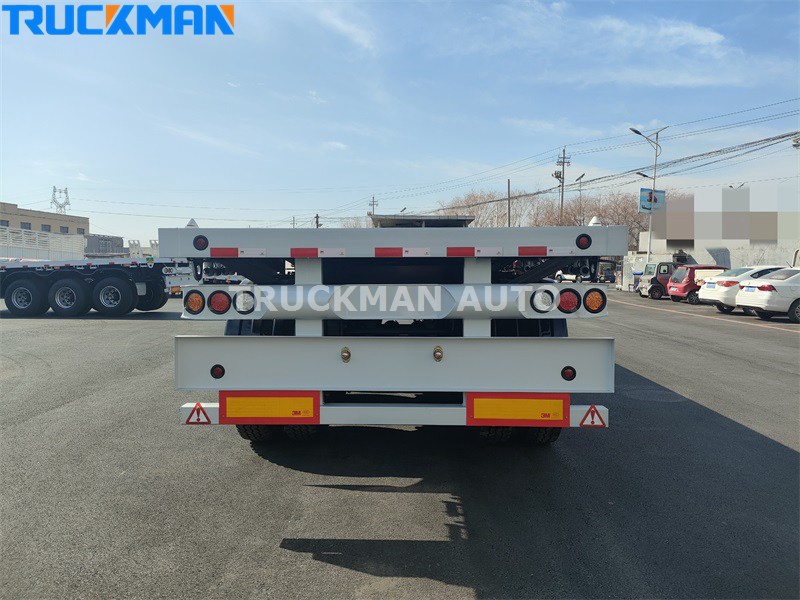

Our TRUCKMAN pays close attention to the details of the trailer's design, which further enhances the vehicle's reliability and extends its service life. Detailed designs are based on trailer traveling road conditions, working conditions and customer feedback. And these detailed spare parts are reinforced and designed to meet heavy-duty requirements. The design details of the containerized flatbed trailer are as follows: reinforced rear bumper, 400mm wide beam spacing, 8mm thick suspension, 18mm thick wheel rims and leaf springs, and more additional parts. These designs greatly increase the service life.
