Super link side wall flatbed trailer is very popular in Mongolia, Zambia etc countries. The two side wall trailer is linked by a tractor seat, allowing more cargo to be transported at one time and increasing transport efficiency. The overall length of the Super link side wall flatbed trailer is too long and requires a professional driver to operate. and requires the assistance of other personnel, especially in narrow terrain.
Super Link Side Wall Flatbed Trailer Features
1. Tires optional 315/80R22.5 tires, with light weight, low cargo surface, large load capacity, etc.
2. Adopt large gooseneck type, effectively reduce or table height, improve the volume of the cargo box.
3. Cargo box board can be produced by "corrugated board" or "composite board" according to customers' requirements.
4. The width and length of the container can be customized according to customer requirements, effectively improving the efficiency of logistics and transportation
Super Link Side Wall Flatbed Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
Super Link Side Wall Flatbed Trailer |
|
Application |
Bulk cargo and container transport |
|
Axle |
6 axle, 6x16 tons, FUWA brand |
|
Tire |
315/80R22.5, 24 pcs |
|
Support Leg |
JOST brand, 28 tons support leg |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Brake System |
WABCO brand |
|
Material |
Q355 |
|
Loading Ton |
100,000kg |
|
Dimension |
19500x2560x2950mm |
The super link side wall flatbed trailer specification only for your reference, we can manufacture other model super link trailer basic your request.

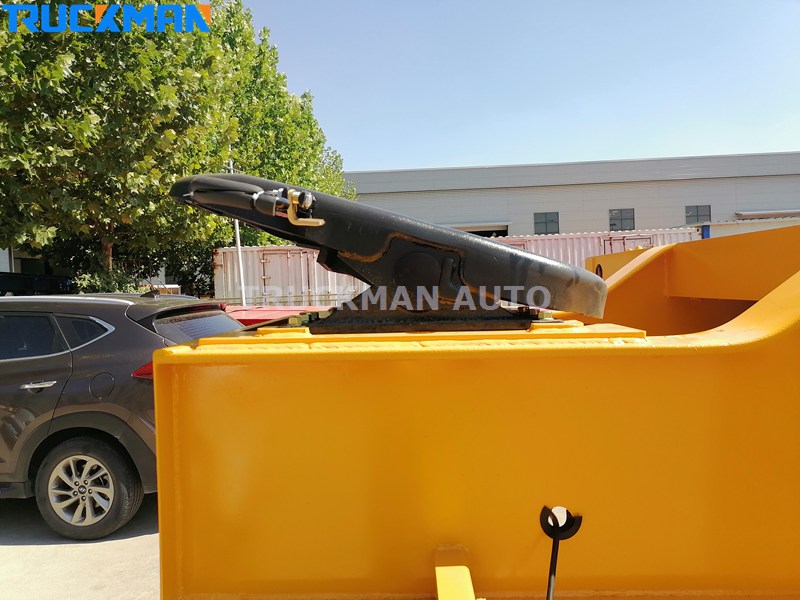

Super Link Side Wall Flatbed Trailer Saddle
Since the link between semi-trailers is through the saddle, this is a very important accessory. TRUCKMAN brand interlink side wall trailer uses JOST brand heavy duty model saddle, JOST saddle designed for heavy-duty, off-road, construction site and other road conditions, the diameter of the locking pin is more robust than ordinary road vehicles to prevent high load trailers from falling off.
