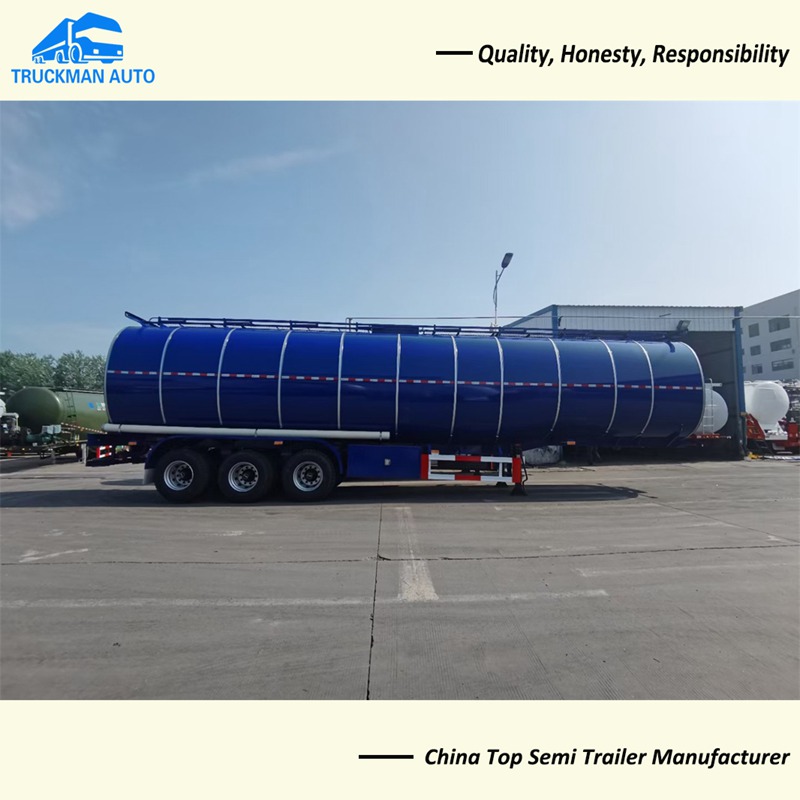

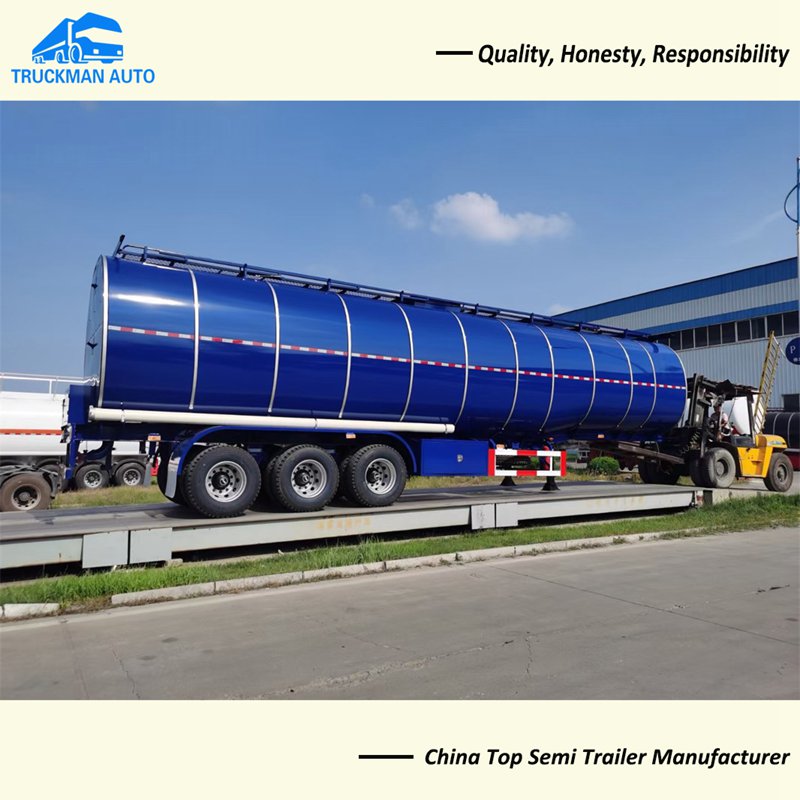

Asphalt bitumen tanker Trailer
Asphalt bitumen tanker Trailer Asphalt bitumen tanker Trailer Asphalt bitumen tanker Trailer

Asphalt bitumen tanker Trailer

Product ID : TMA350TO135ABT
Product Tags : Fuel Tanker Trailer
Product Attributes :

1.Function of this series bitumen tanker trailer: This series tanker semi trailer is tank-style designed, which is suitable for the transportation of Bitumen/Asphalt/Pitch/Tar. 2.Technical Parameter for 30T bitumen tanker trailer: Considering different countries have different road safety rules,defferent regulations,different road conditions.We can manufacture different asphalt bitumen tanker according to your sepecial situation
Product Description

Jinan Truckkman Automobile Co.,Ltd. , as a trailer manufacturer, has been dedicated to provide our customers with high-qualified trailers and additional values since 2010.



Alphalt Bitumen Tank Truck Trailer

Model

TMA350TO135ABT

Dimension(Optional)

Axle No.

Rated Load (kg)

Tire No.

Tire Size

10000-30000liters/10-30cbm

2

40000

8

8.25R20 10.00R20 11.00R20 12.00R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)

30000-60000liters/30-60cbm

3

60000

12

Above 60000liters/60cbm

4

75000

16

Manufacture

Jinan Truckman Automobile Co., Ltd

Wheel Base  (mm)

1310

leaf-spring Pcs

10

Axle

13/16/18T, ZY brand,Option FUWA and BPW

Suspension

Heavy Duty Mechanic Suspension with Leaf Springs

Main Beam Material

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system with automatic braking system/chambers

Brake Air Chamber

Double Model

Kingpin

2' or 3.5' Interchangeable

Landing gear

28T loading capacity with 80T static lifting capacity.JOST brand

Tanker body

5mm Q235B Steel

Brake System

Dual Lines Braking System With Automatic Air Chambers

Brake Air Chamber

Four double and two single chamber

Electrical System

24V, 7core socket, lights according to European standards.



Mainbeam Size

Upper plate

14mm

Lower plate

16mm

Mid Web

10 mm

Height

500-520mm
