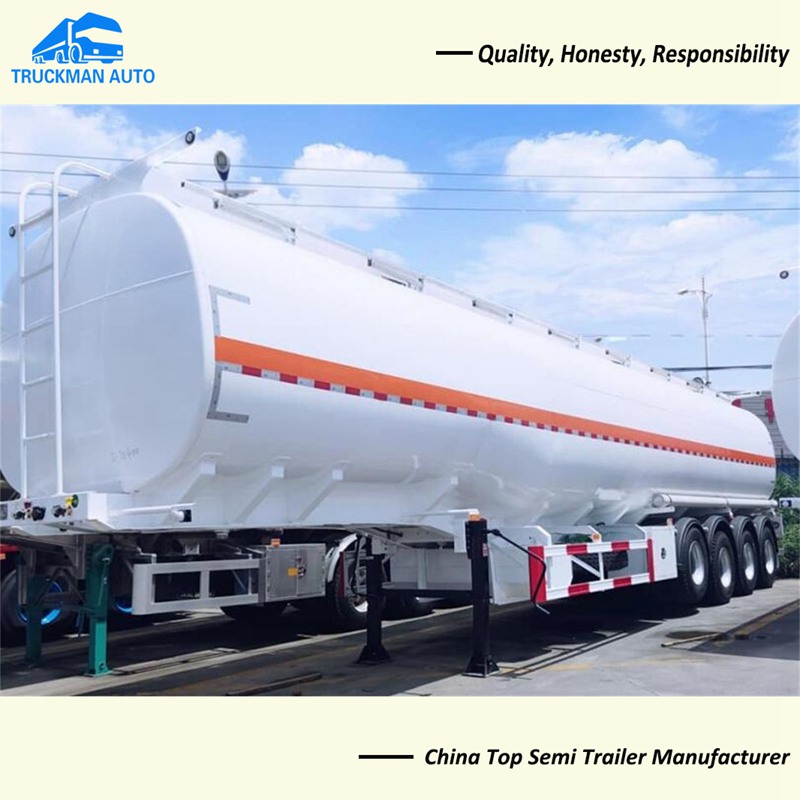

Edible oil storage tank trailer is a tanker that is connected to the towing part by the traction head. Compared with the ordinary one-piece tanker, the fuel storage trailer can effectively improve the transportation efficiency.
The tank body of our diesel storage tank for africa is made of 4mm or 6mm high-quality carbon steel produced by the steel company according to national standards. The shape of our fuel tanker trailer is divided into elliptical or square round tanks,which can hold 1-4 kinds of oil products.It can also produce heating and insulation series tanks.
|
Trailer Model |
Chinese manufacturer direct 50000 liters 60000 liter fuel oil petrol tanker truck semi trailer for sale in south africa |
|
Overall Dimension |
11900x2500x3800(Lx W x H)(mm) |
|
Function |
transport Fuel, Oil, Diesel |
|
Thickness(mm) |
Tank body: Q235/5mm carbon steel End plate: Q235/6mm carbon steel |
|
Volume |
50000L-60000L |
|
Axle Brand |
FUWA 13Ton Axles, top brand |
|
Axle Number |
4 |
|
Compartment |
3-9compartments |
|
Manhole cover |
500mm manhole cover. 3 sets with3 breath valve. |
|
Ladder |
Top ladder with handrail, side ladder |
|
Discharge valve |
4''disc valve |
|
Discharge pipe |
4''seamless steel tube |
|
Suspension system |
Leaf spring suspension |
|
Bottom valve quantity |
3 units |
|
Steel Spring |
10/10/10 leaf spring suspension 90mm width, 13mm thickness |
|
The material of Main beam |
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. |
|
Tire Type and quantity |
12R22.5 16units |
|
Traction Pin |
50mm/90mm, jost brand |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Landing Gear |
Standard brand 28ton external, 2 speed |
|
Brake system |
Dual Line braking system |
|
Brake air chamber |
Six big double air chambers |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Side Guard |
According to customer’s requirement |
|
Painting |
According customer requirement |
|
Packing |
Polish with wax before shipping |
After Services:
1. 12 months for main parts (engine, axle, body and beam, etc).
1. By Container : Price is usually the lowest . Capacity below 60 CBM
2. By Bulk Ship / RO-Ro Ship / Flat Rack
3. By RO-Ro ship : Pirce is high but protect the trailer very well
