A fuel tank truck or tanker truck is a motor vehicle designed to carry liquefied loads on roads. It is described by its size and volume capacity. A fuel tank truck is distinguished by its shape, usually a cylindrical tank upon the vehicle lying horizontally.

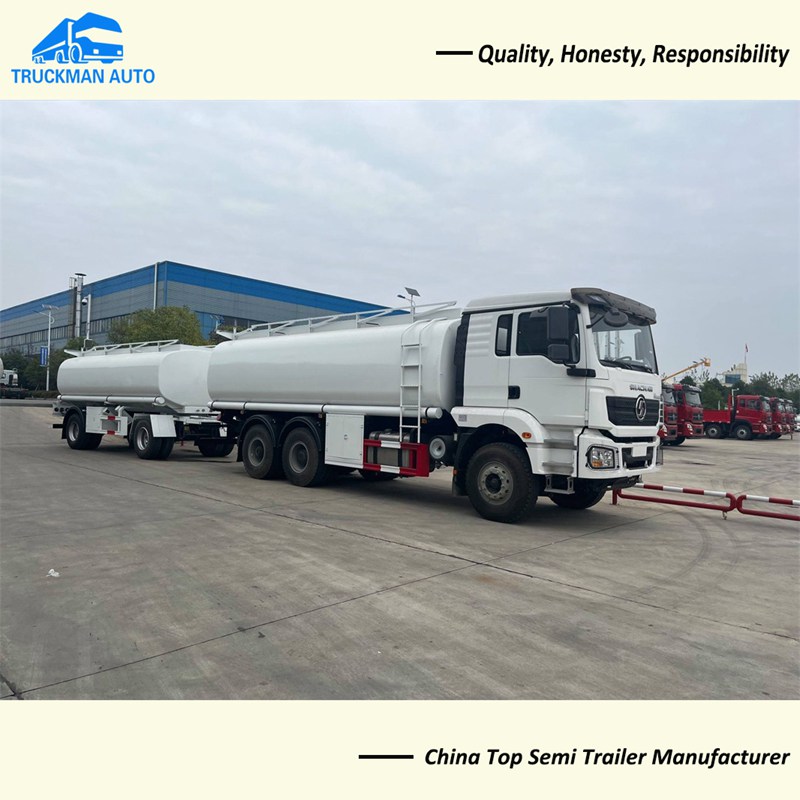

Shacman Double Tanker Oil Fuel Superlink Interlink Tank Full Trailer for Sale
Fuel tank trucks generally are used to deliver fuel such as liquified petroleum gas to households, commerces and industries. Another common use is to refuel other vehicles. It is equipped with refueling equipment, such as refueling gun, pump etc.
|

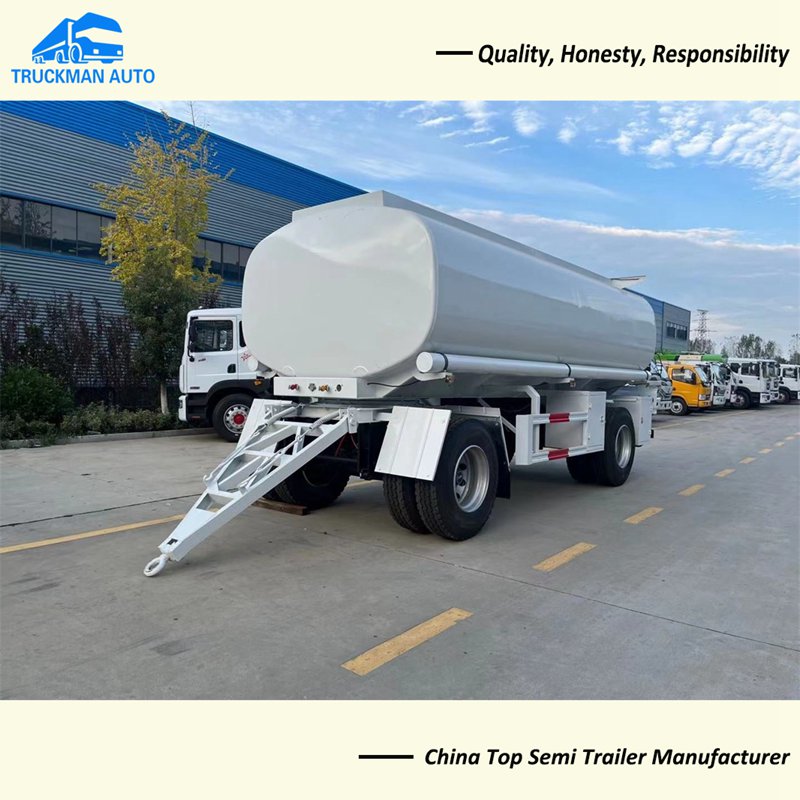

5cbm 2-Axle Full fuel Tank Trailer with drawbar trailer(OTHER SIZE OPTIONAL)
Overall Diameters
|
|||
| Weight | |||
| Loading Capacity | 15T | ||
| Axle number | 2 | ||
| Axle specs. | Fuwa Brand | ||
| Suspension | America type mechanical Suspension | ||
| Wheel | 11:00 R20 | ||
| Turntable | Diameter is 1100mm | ||
| Traction hook | DN50 | ||
| Traction bar | Length is 1.4m | ||
| Dimensions(LxWxH) | 8500×2500×1500mm, (working length is 7m) | ||
| Steel Spring | 10/10 pieces per axles | ||
| Tire: | |||
| Number of rim | 8 | ||
| Spare Tire Carriers | 1/piece | ||
| Frame: (specs. and materials) | |||
| The material of Main beam |
The height of the beam is420mm,upper plate is 12mm*140,down plate is 12*140mm,middle plate is 6mm(strictly).made of Q355 | ||
| Platform plate | 3mm Diamond Plate | ||
| Brake: | VABCO VALVE | ||
| Brake | Kemi Brand of China | ||
| Brake Chamber | TWO double and two single chamber( TKL brand ) | ||
| ABS system | with | ||
Product Description
1-Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2-Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3-Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4-Nice shape and rational structure.
5-High class running system and tank material.
6-high-intensity kingpin and landing legs.
7-top gemany brand BPW axle or Chinese brand FUWA axles.
8-Durable and long term service life.
