Dump semi trailer is suitable for the transportation of coal, ore, building materials and other bulk bulk cargoes.

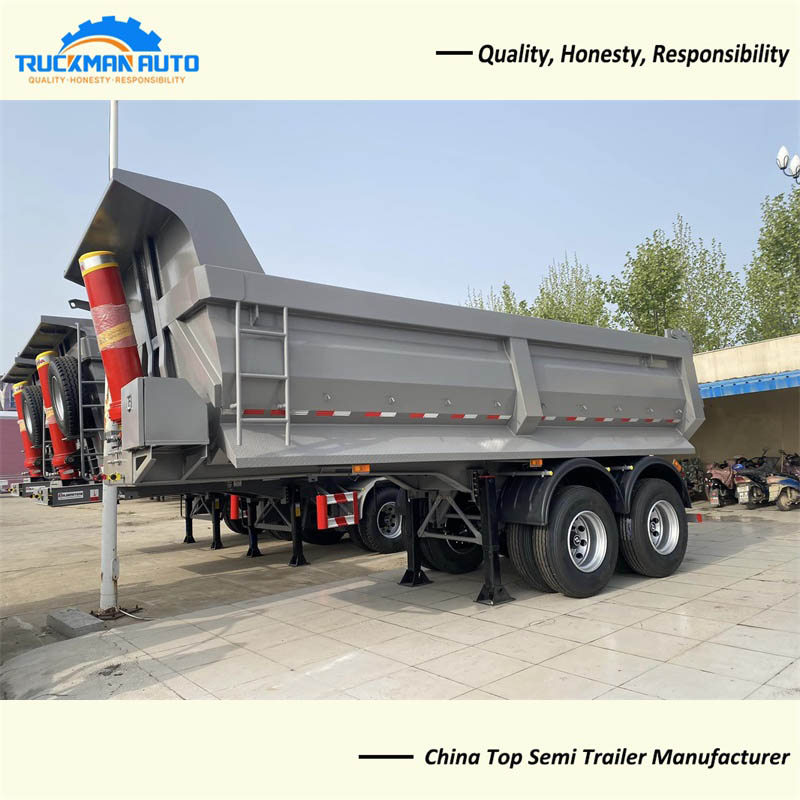

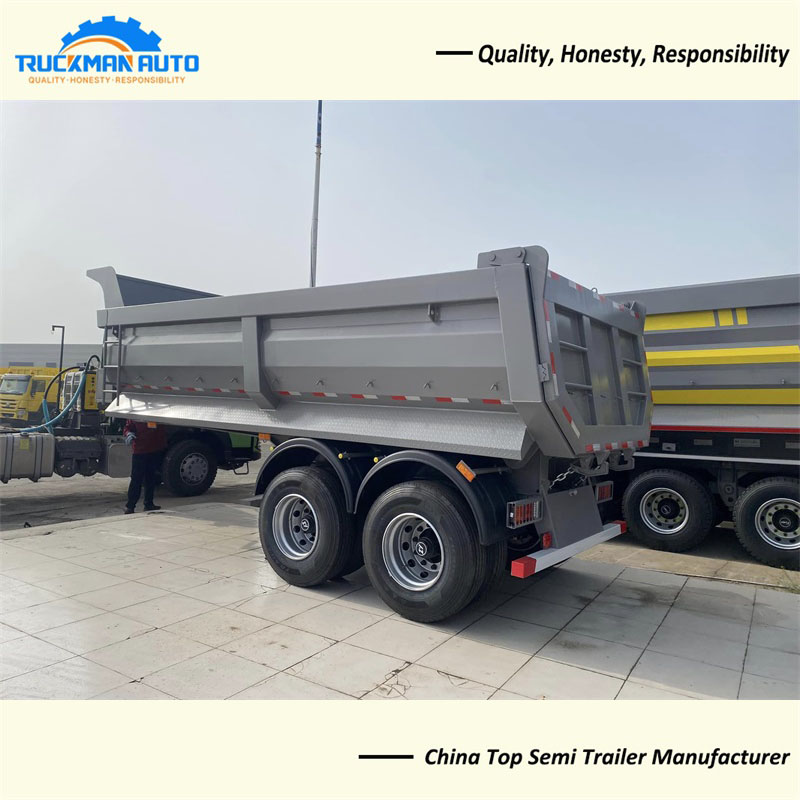

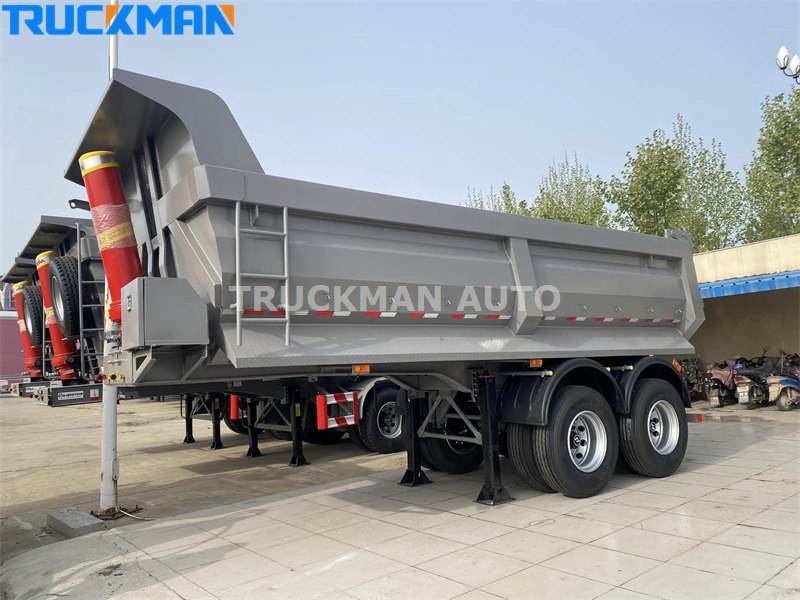

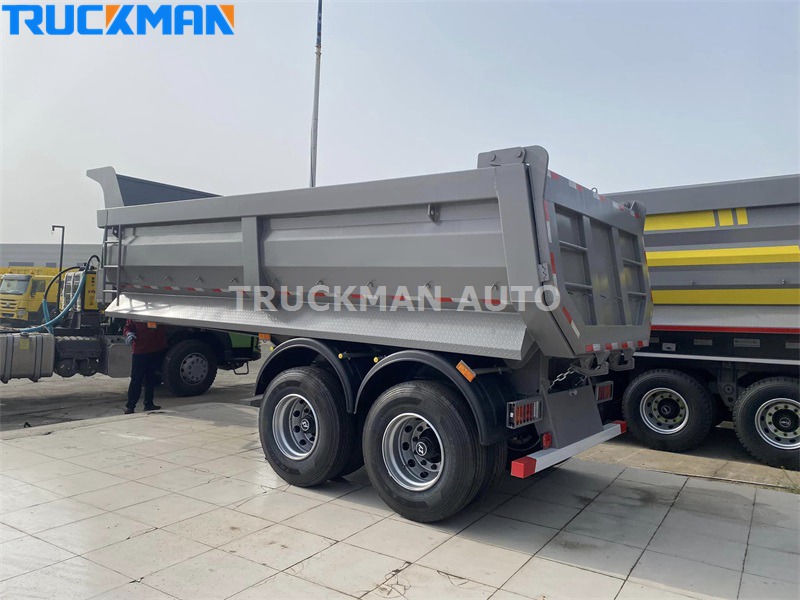

About 2 Axle 30 Tons Dump Semi Trailer
The 2 axle dump semi trailer is composed of trunk, frame, hydraulic lifting system, suspension, braking system, electrical system, axle and tires, traction pins and so on. The frame assembly mainly consists of longitudinal beam, cross beam, friction disk assembly, left/right outrigger, leaf spring support, balance axle and so on.
2 Axle 30 Tons Dump Semi Trailer Specification
Product Name: 2 Axle 30 Tons Dump Semi Trailer
Application: Coal and sand transport
Axle: 2 axle, 2x16 tons, FUWA brand
Tire: 315/80R22.5, 8 pcs, TRIANGLE brand
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Loading Capacity: 30,000kg
Support Leg: 28 tons, FUWA brand
Dimension: 10500x2500x3250mm
2 Axle 30 Tons Dump Semi Trailer specification only for your reference, we will recommend other model Dump Semi Trailer basic your request.
2 Axle 30 Tons Dump Semi Trailer Cargo Box
The cargo box of this dump semi trailer is made of Q355 manganese plate, which has higher yield strength and better impact and fatigue resistance than ordinary steel, so the cargo box is not easy to be impacted by heavy goods. High tensile strength and yield strength, strong corrosion resistance, not easy to deformation or fracture, can withstand greater pressure.

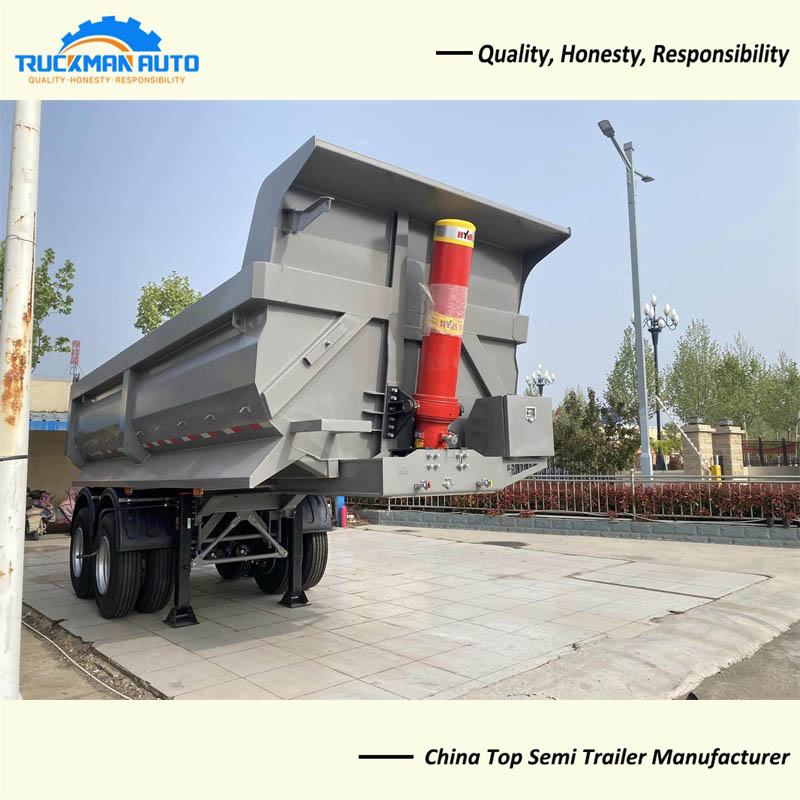

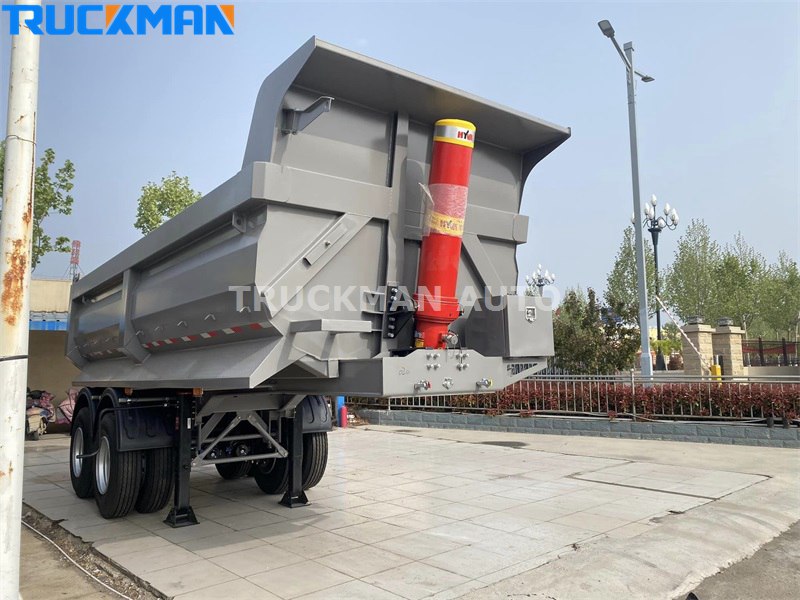

2 Axle 30 Tons Dump Semi Trailer Lifting Hydraulic System
Hydraulic system is the power source of 30 Tons dump semi trailer tipping unloading, it is composed of pumps, valves, tanks, pipelines, cylinders, etc., the hydraulic system must be stable in order to ensure that the unloading of the normal, the dumping semi-trailer lifting the hydraulic system is stable, the cylinder lifting angle, the oil circuit, the gas circuit of the design of a reasonable way, you can extend the service life.
