Low bed trailers are usually used to transport heavy vehicles (such as tractor truck, special-purpose vehicles, etc.), construction machinery and other heavy-duty goods.

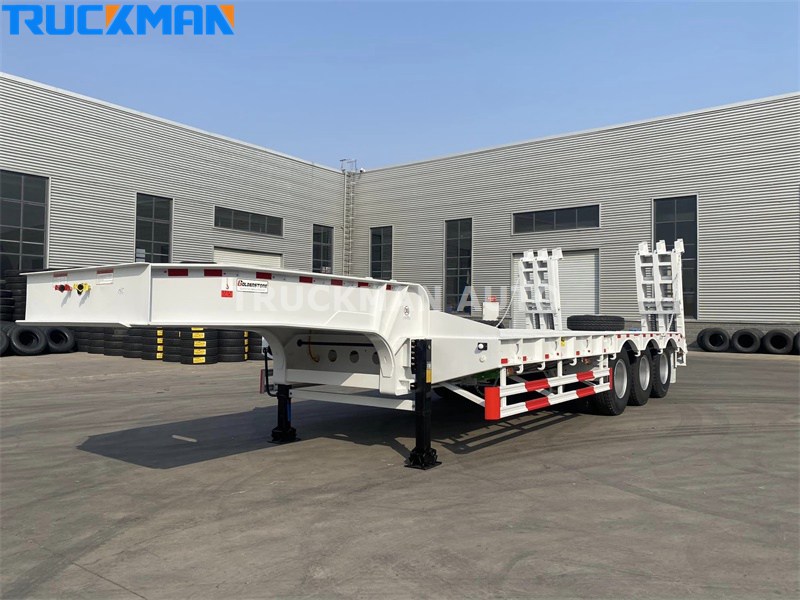

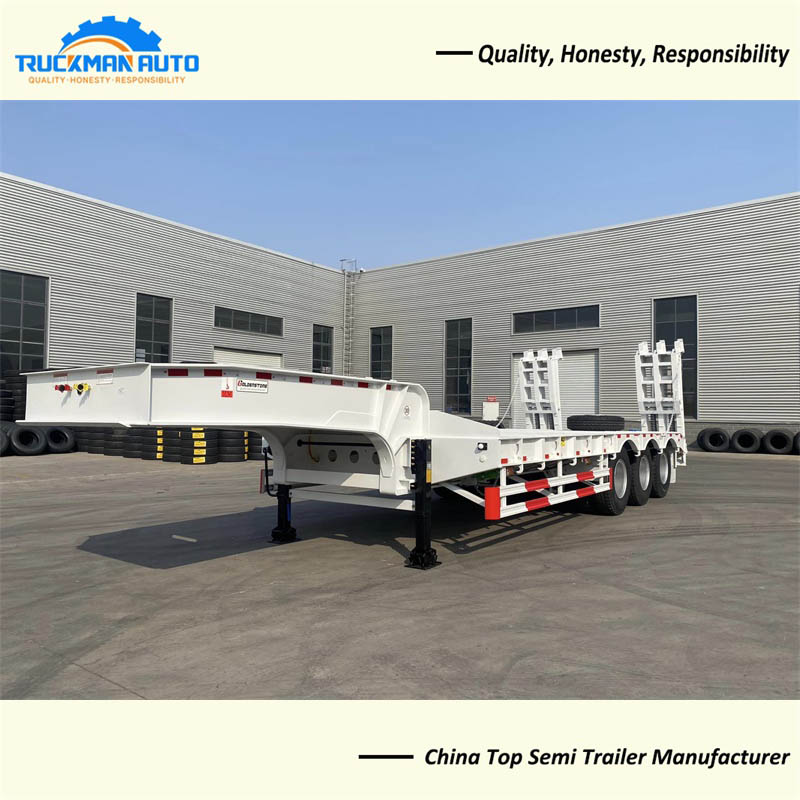

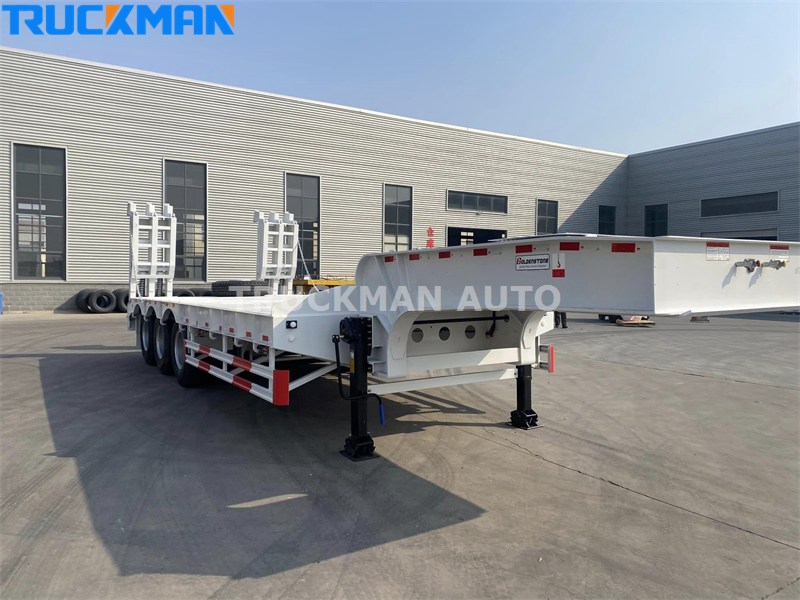

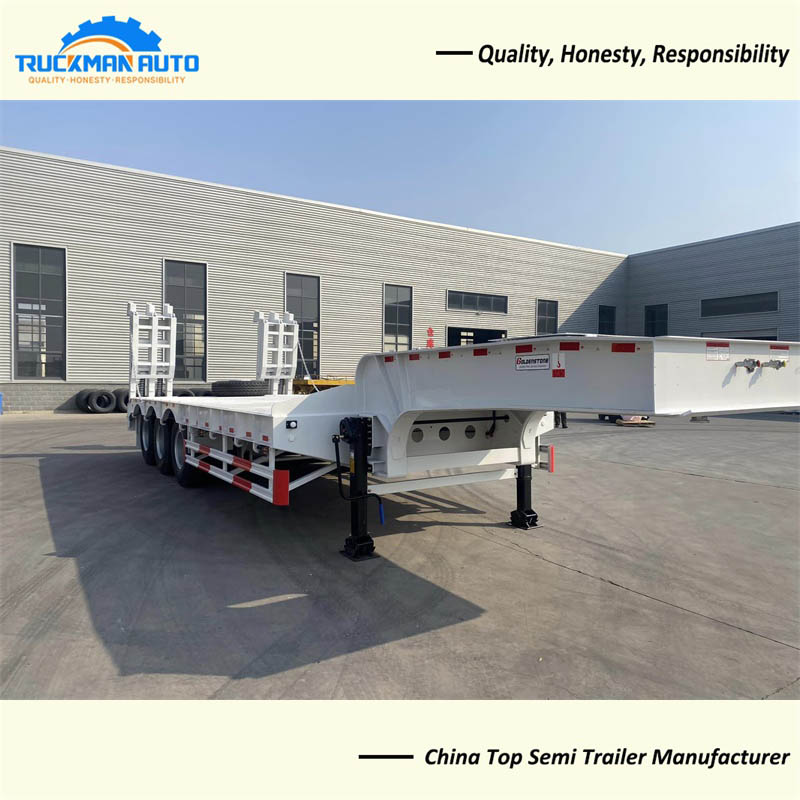

About 3 Axle Low Bed Trailer
The low bed trailer usually adopts concave beam frame, that is, the front part of the frame is the gooseneck, the traction pin in the front part of the gooseneck is connected to the traction saddle on the tractor, the rear end of the gooseneck is connected to the semi-trailer frame, the middle part of the frame is the cargo platform, and the rear end of the frame is the wheel frame.
3 Axle Low Bed Trailer Specification
Axle: 3x16 tons, 3 axle, FUWA brand
Application: Construction machinery transport
Tire: 315/80R22.5, 12 pcs, TRIANGLE brand
Kingpin: 3.5 inch, JOST brand
Brake System: WABCO brand
Loading Capacity: 50 tons
Support Leg: 28 tons, JOST brand
Dimension: 13000x3000x1760mm
The 3 Axle Low Bed Trailer specification only for your reference, we can manufacture other model Low Bed Trailer basic your request.
3 Axle Low Bed Trailer Chassis
The chassis is the main structure for loading cargo, which consists of beams, welded I-beams, support beams, connecting beams, side beams, locks, traction pin connectors, panels and so on. The chassis is made of high-strength steel with strong steel and low weight. Adopting the way of weld connection, the welded structure is well closed, the weld is tight and strong, beautiful and even, and the integrality is larger, which greatly prolongs the service life of the low bed trailer.
3 Axle Low Bed Trailer Accessories
The addition of aluminum accessories also reduces the weight, in the same volume, the weight of aluminum is only about one-third of steel. The accessories of this low bed trailer are made of aluminum alloy, which is lighter in weight, corrosion-resistant, beautiful in appearance and more convenient to use compared with steel.
