3 axle 60 ton lowbed trailer adopt the automatic submerged welding, which can guarantee the welding beam not open, and with welding quality durable. And material use the Q355 and T700, meet the different loading capacity request.
3 Axle 60 Ton Lowbed Trailer Features
1. With 850mm width ladder, easy for machinery loading.
2. With the extend plate each side, can suitable over width cargoes.
3. Chassis with big support beam, effective support mounted on platform.
4. 4mm thickness platform, checkboard plate, Increased friction between cargo and platform.
3 Axle 60 Ton Lowbed Trailer Specification
Product Name: 3 Axle 60 Ton Low Bed Trailer
Application: Bulk cargo and machinery transport
Axle: 3 axle, 3x16 tons, FUWA brand
Tire: 315/80R22.5, 12 pcs
Support Leg: FUWA brand, 80 tons support leg
Tractor Pin: 3.5 inch, JOST brand
Brake System: WABCO brand
Loading Ton: 60,000kg
Dimension: 13000x3000+500x2950mm
The 3 axle 60 ton lowbed trailer specification only for your reference, we can manufacture other model 3 axle lowbed trailer basic your request.

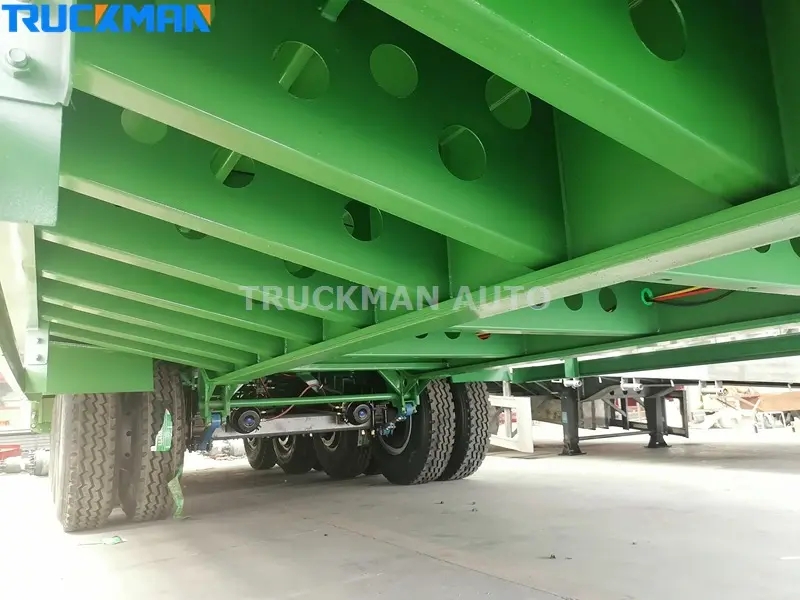

3 Axle 60 Ton Lowbed Trailer Chassis
Not only the chassis adopt the enhanced model parts, but also the support beam adopt the big model and thickness enhanced also. Gooseneck, ladder thickness also enhanced. Suspension adopt the 8mm thickness, with 2 parts reinforce. These design confirm the low bed trailer can loading 60 ton cargoes at different road, without issue.
