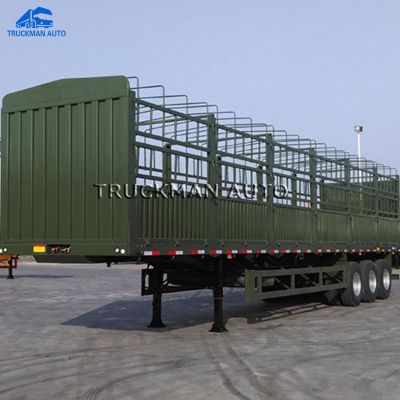

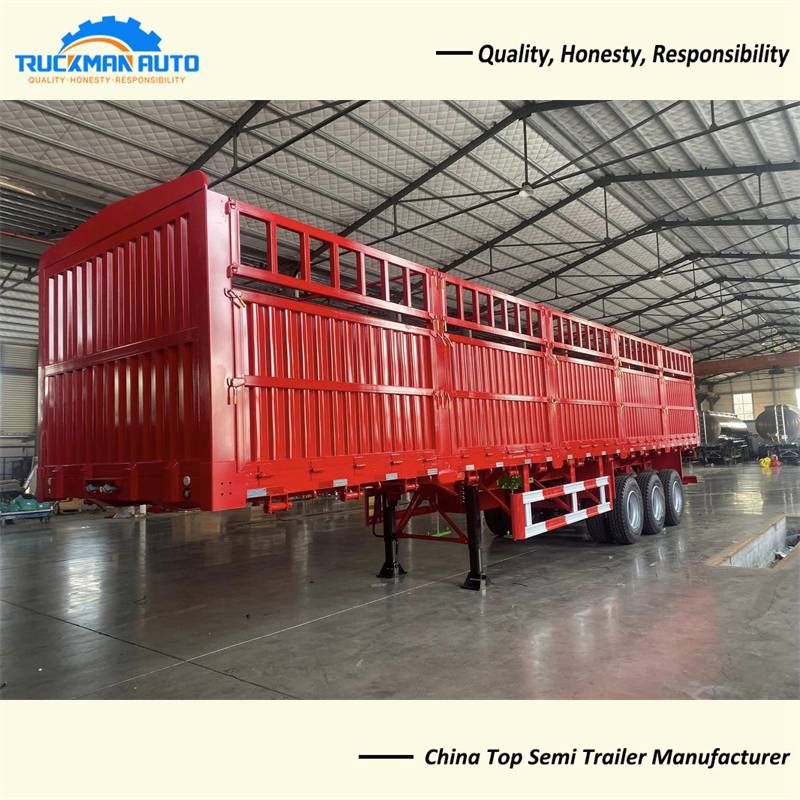

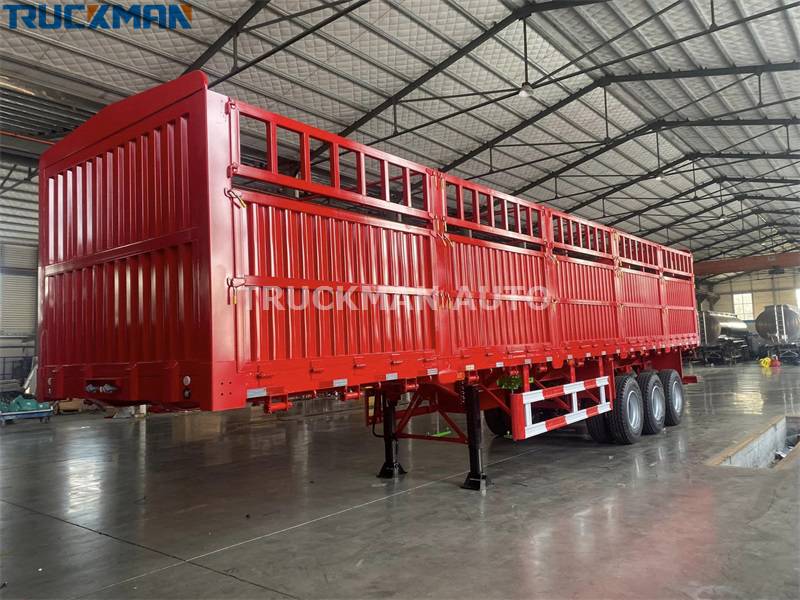

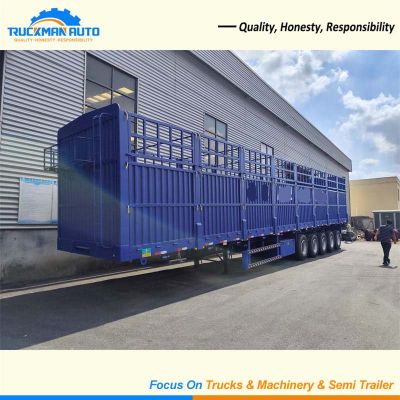

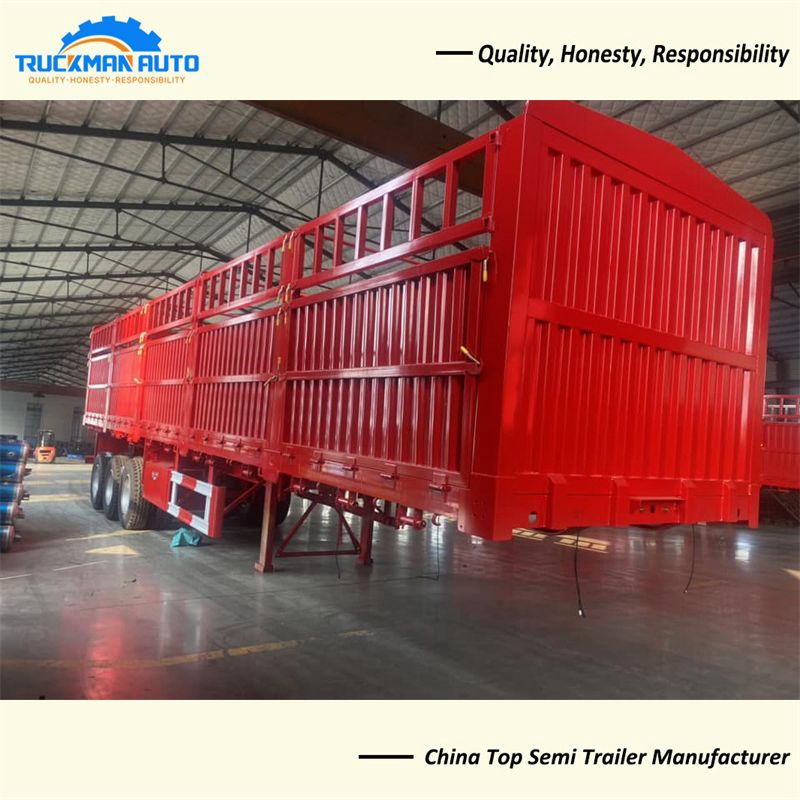

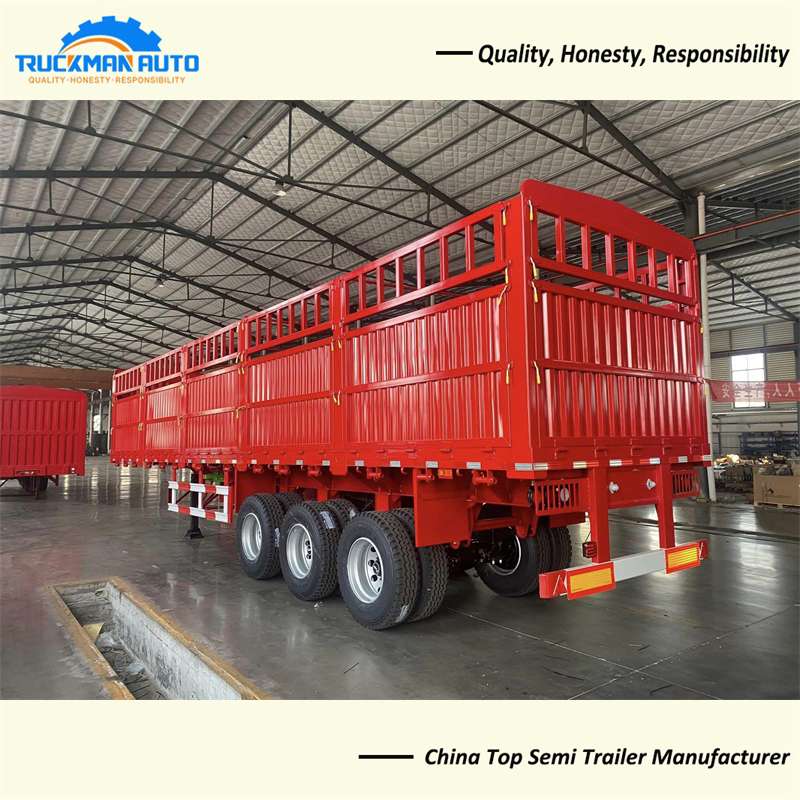

Drop side wall trailer also called as fence trailer, it have two function, transport the all model of container and bulk cargoes.

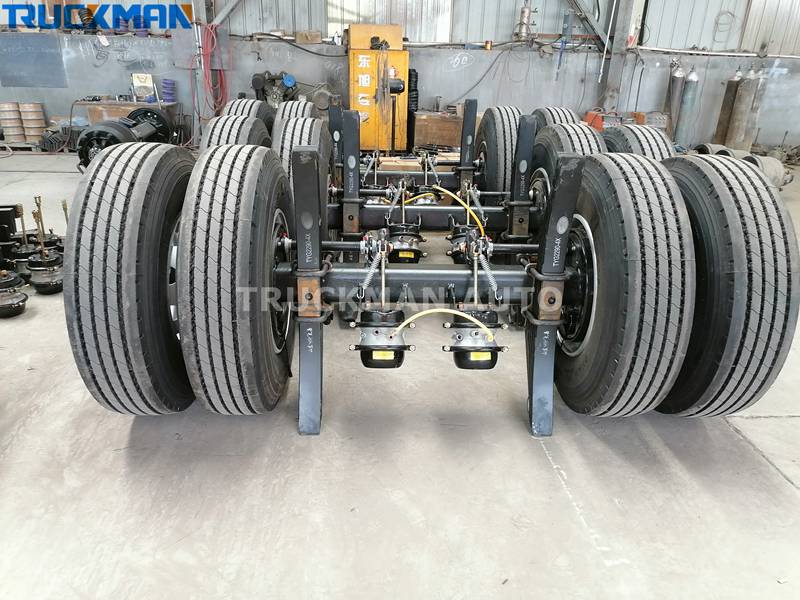

Drop Side Wall Trailer Tire Detail
The drop side wall trailer adopt the 12R22.5 tubeless tire, TRIANGLE brand. This model tire suitable for long distance transportation, with good drainage and better grip, you'll be more stable and safe when driving in the rain. We will recommend the right type of tire according to the customer's semi-trailer road conditions and load, for customers to reduce costs while choosing the best quality tires.
Drop Side Wall Trailer Specification
Product Name: Drop Side Wall Trailer
Application: Bulk cargo and container transport
Axle: 3 axles, 3x13 tons, FUWA brand
Tire: 12R22.5, 12 pcs, TRIANGLE brand
Kingpin: 2 inch, JOST brand
Brake System: WABCO brand
Container Lock: 12 pcs
Support Leg: 28 tons, JOST brand
Dimension: 12500x2500x3630mm
The drop side wall trailer specification only for your reference, we can manufacture other model drop side wall trailer basic your request.

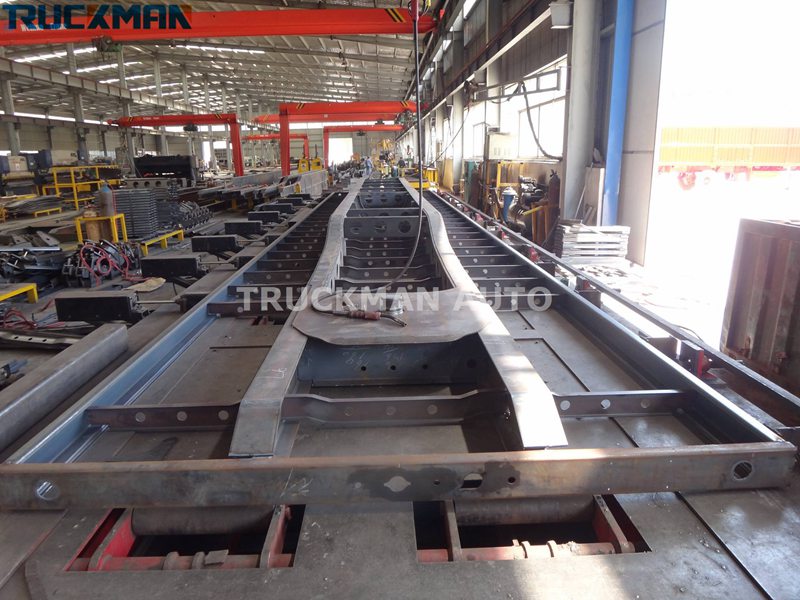

Drop Side Wall Trailer Chassis Structure
The drop side wall trailer chassis consists of two main beams, side beams and a number of cross beams. The material of chassis adopt the Q355 manganese steel, meet the heavy loading request. The space between of two pcs cross beam not over the 400mm, the advantages is loading platform do not collapse after extended use. And more quantity cross beam mean the chassis more stronger.
Drop Side Wall Trailer Safety Equipment
Drop side wall trailer safety equipment mainly including the brake system, side and rear bumper, reflective strip and fire extinguisher etc. The trailer brake system have ABS and WABCO brake valve, side and rear bumper all are made of high quality steel to prevent pedestrians and vehicles from burrowing underneath the car. The fire extinguishers can respond to emergencies and prevent fires from growing.
