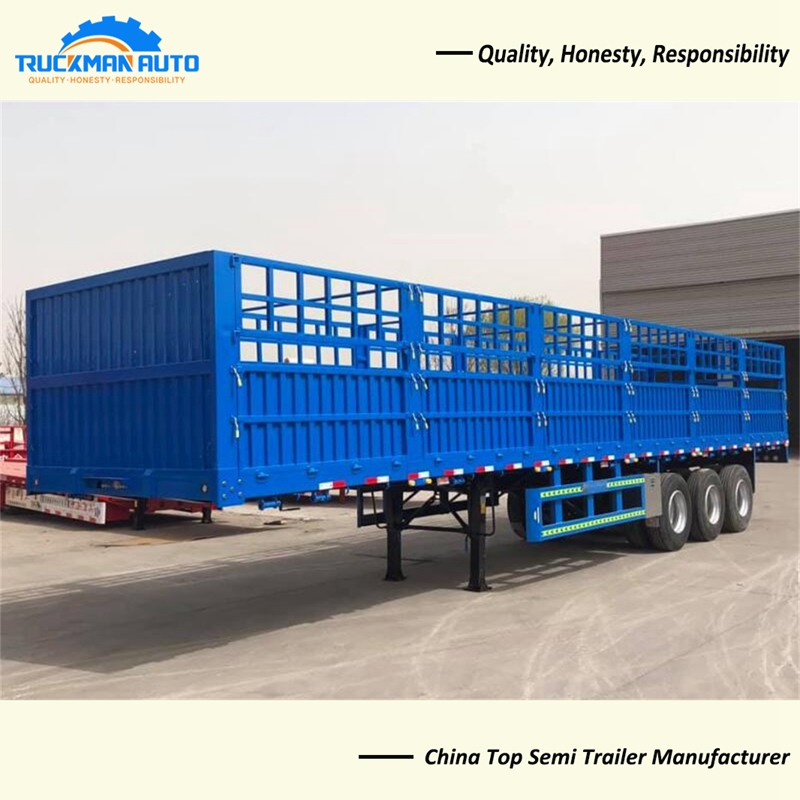

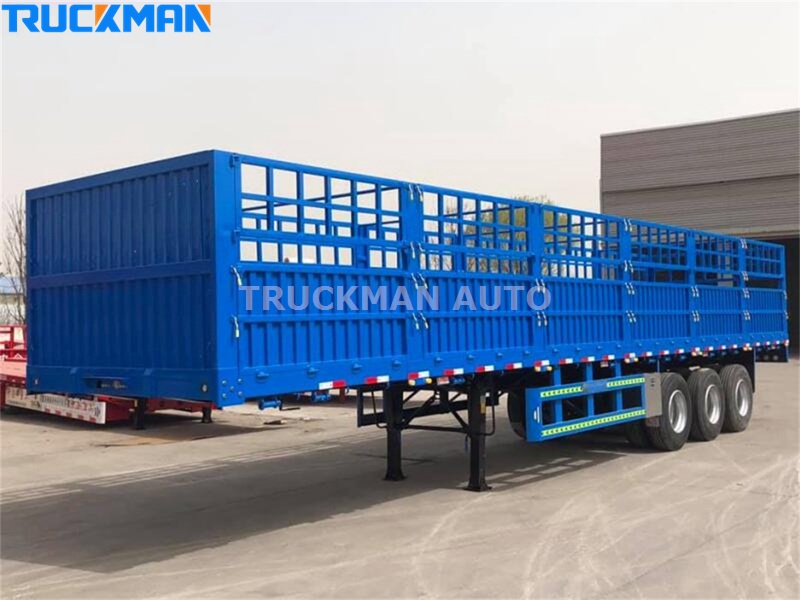

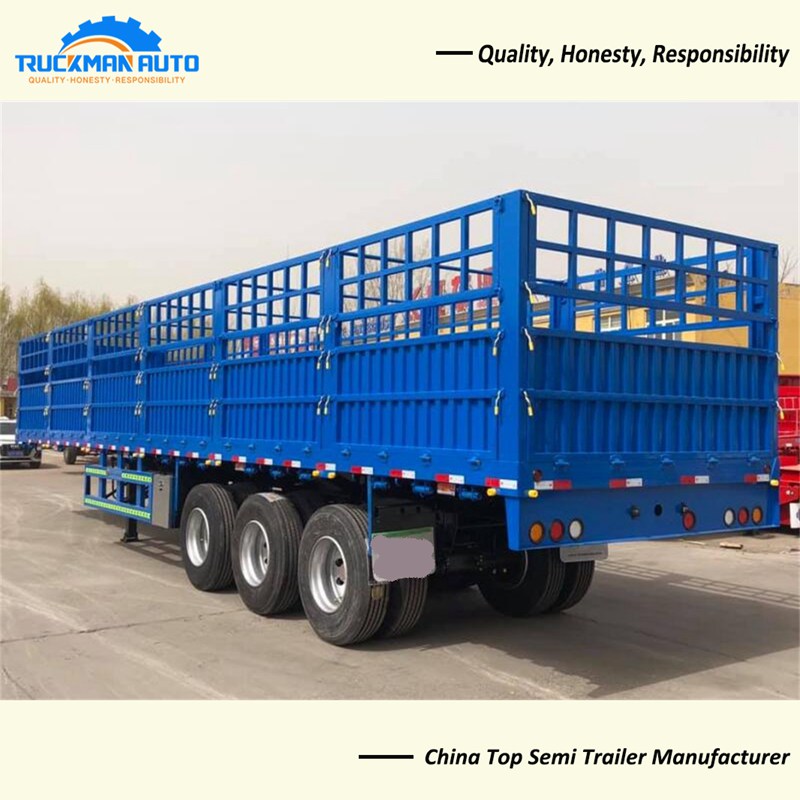

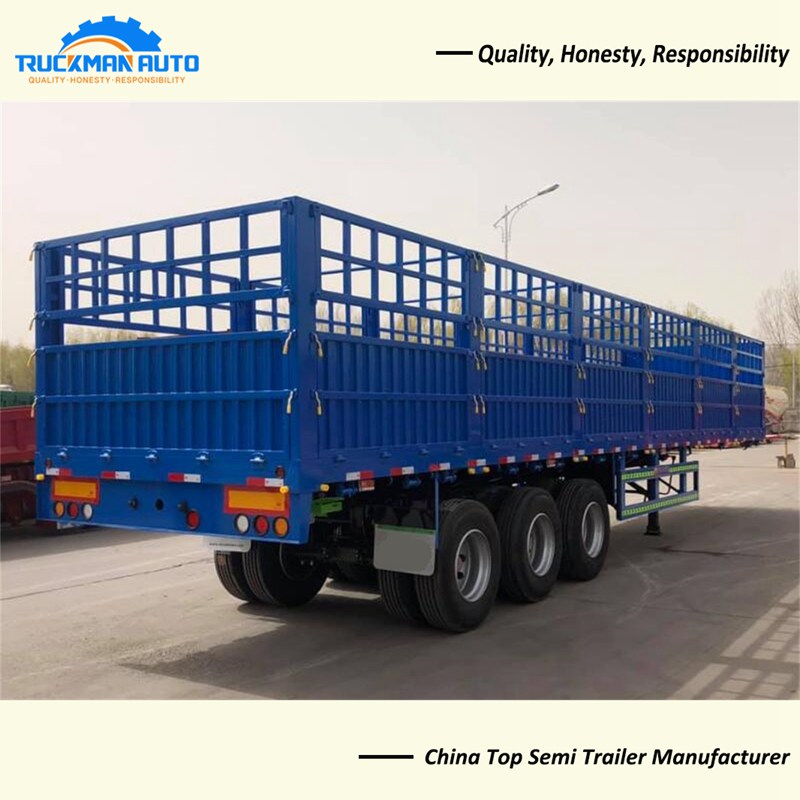

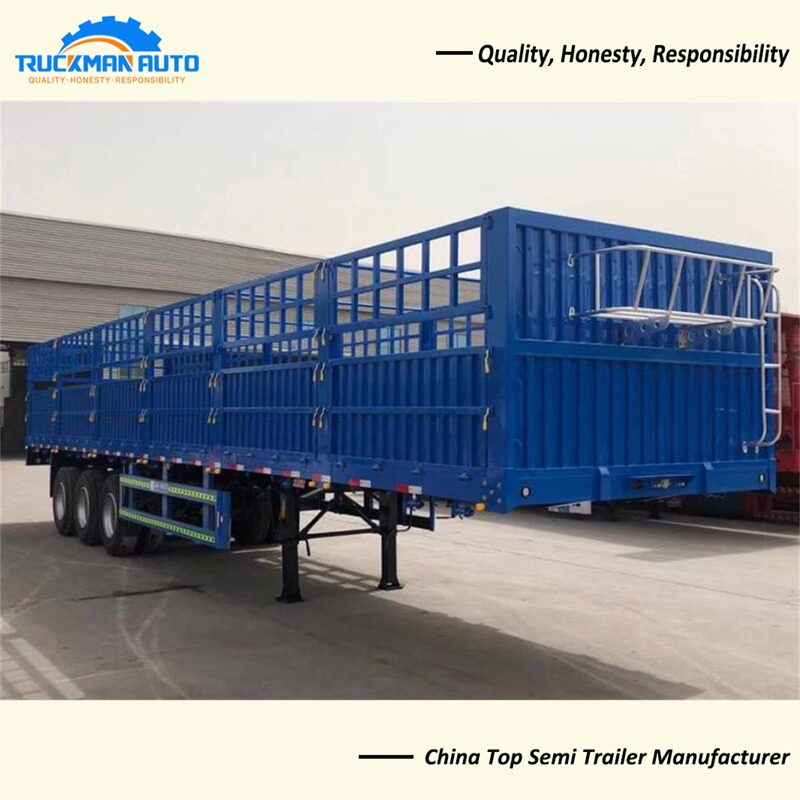

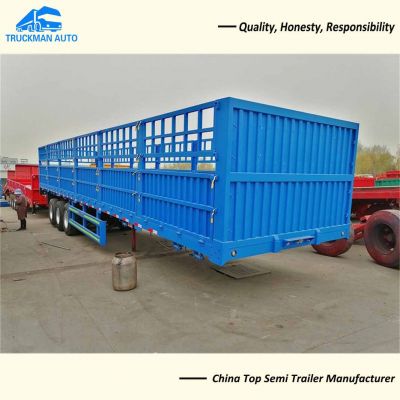

60 ton fence truck cargo trailer mainly used for long distance transport, the main component use the famous brand parts. Like FUWA axle, LINGLONG tire etc. The production adopt advanced tech, like automatic submerged arc welding, shot blasting, laser cutting tech etc. Adopt the polyurethane paint avoid the rusty after using with long time.
60 Ton Fence Truck Cargo Trailer Feature
1. 600-1400mm height fence, thickness is 1.5-3mm.
2. Adopt the heavy duty support leg, static loading can reach to 80 tons, support swap trailer transport.
3. Can add 600-1000L stainless steel material fuel tank, for long distance transport.
4. JOST brand heavy duty tractor pin, max tractor tons can reach to 100 tons.
60 Ton Fence Truck Cargo Trailer Specification
Dimension: 12500x2560x3440mm
Axle: 3x16 tons, ZY brand
Tire: 315/80R22.5, 12 pcs, LINGLONG
Main Beam: lower 16mm, middle 10mm, upper 14mm
Support Leg: JOST brand, 28 tons
Tractor Pin: JOST brand, 90#
Suspension: 8mm thickness, heavy duty loading
Leaf Spring: 90x16mmx10pcs
Wheel Rim: 16mm
Cargo Box: 12300x2300x1500mm
Brake Valve: WABCO brand
The 60 ton fence truck cargo trailer specification only for your reference, we can manufacture other fence truck cargo trailer basic your request.
60 Ton Fence Truck Cargo Trailer Shipment Detail

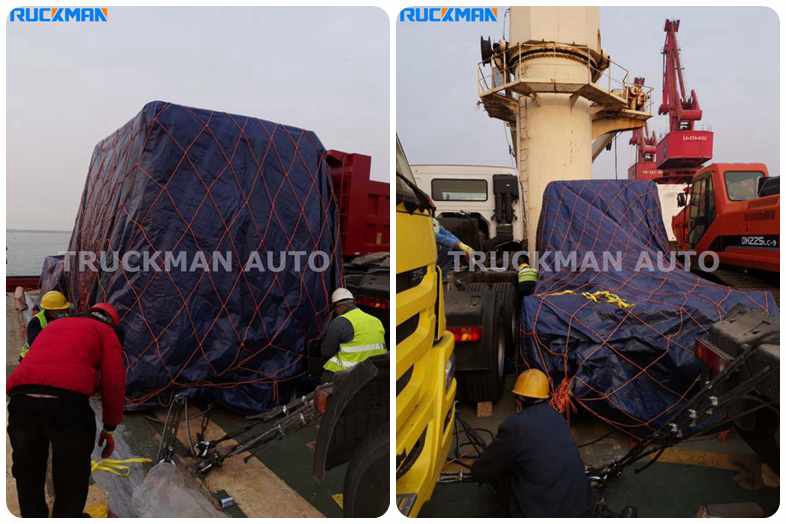

2 unit or 3 unit 60 ton fence truck cargo trailer stack together, can save a lot shipping cost. We use the wire rope to fixed the fence truck cargo trailer, where the wire rope and the semi trailer are in contact, we will use spacers to separate them. Prevents scratching of paint on semi trailers.
