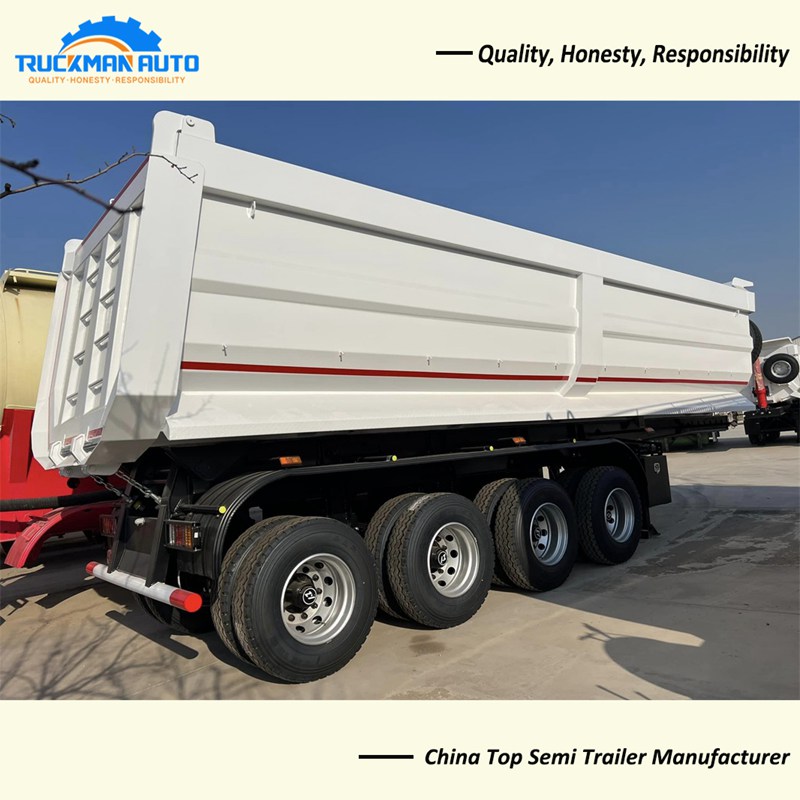

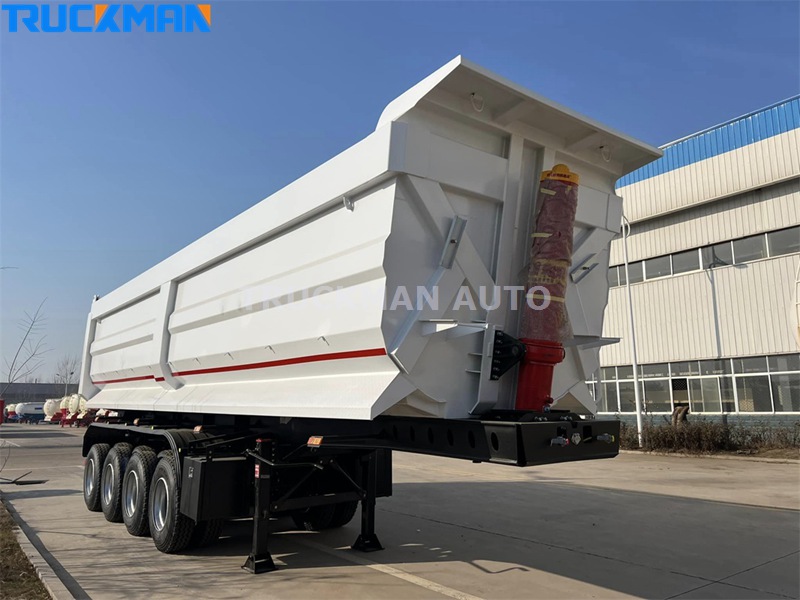

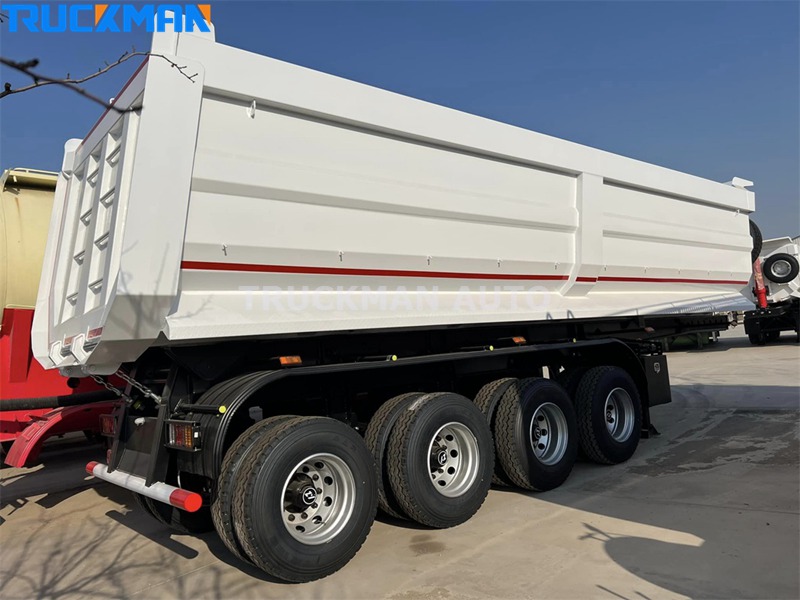

80 tons tipper semi trailer can loading 80 tons different goods, such as sand, gravel, limestone, bauxite etc. With U shape and rectangle model cargo box, meet the different cargoes transportation. Also the cargo box material have Q355 manganese plate and NM400 wear-resistant plates is optional. About the lifting system is adopt the HYVA brand.
80 Tons Tipper Semi Trailer Features
-1. Tubeless and radial model tire for different road request.
-2. Heavy duty 16 tons axle, meet the loading capacity request.
-3. Use the advanced production tech, keep the dump trailer quality.
-4. With additional parts, such as extend plate, hooks and cable holder.
80 Tons Tipper Semi Trailer Specification
|
Description |
Parameter Value |
|
Product Name |
80 tons tipper semi trailer |
|
Application |
Bulk cargo transport |
|
Axle |
4 axle, 4x16 tons, FUWA brand |
|
Tire |
315/80R22.5, 16 pcs |
|
Support Leg |
FUWA brand, 80 tons support leg |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Brake System |
WABCO brand |
|
Material |
Q355 |
|
Loading Ton |
80,000kg |
|
Dimension |
11500x2560x3450mm |
The 80 tons tipper semi trailer specification only for your reference, we can manufacture other model dumper trailer basic your request.
80 Tons Tipper Semi Trailer Axle Introduce
80 tons tipper semi trailer axle refers to the axle assembly specifically used on the semi-trailer, is a key component of the vehicle chassis, usually contains axles, brakes and suspension and other ancillary accessories, through the suspension and trailer body is connected, the axle ends installed wheels, its main role is to carry the weight of the trailer, maintain the normal operation of the vehicle.
