Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 15 years of production experience serve for you Since year 2006-TRUCKMAN AUTO
|
Dimension
|
13000x3000x1650mm
|
|
Payload
|
60-70T
|
|
Tare weight
|
About 10T-12T
|
|
Extension Width
|
20cm each side
|
|
Main beam
|
Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes.
|
|
Frame Beam
|
Top Flange 16mm,width 180mm; Middle Flange 10mm; Bottom Flange 18mm,width 180mm, main beam height 500mm
|
|
Frame Floor
|
The Thickness is 4mm pattern
|
|

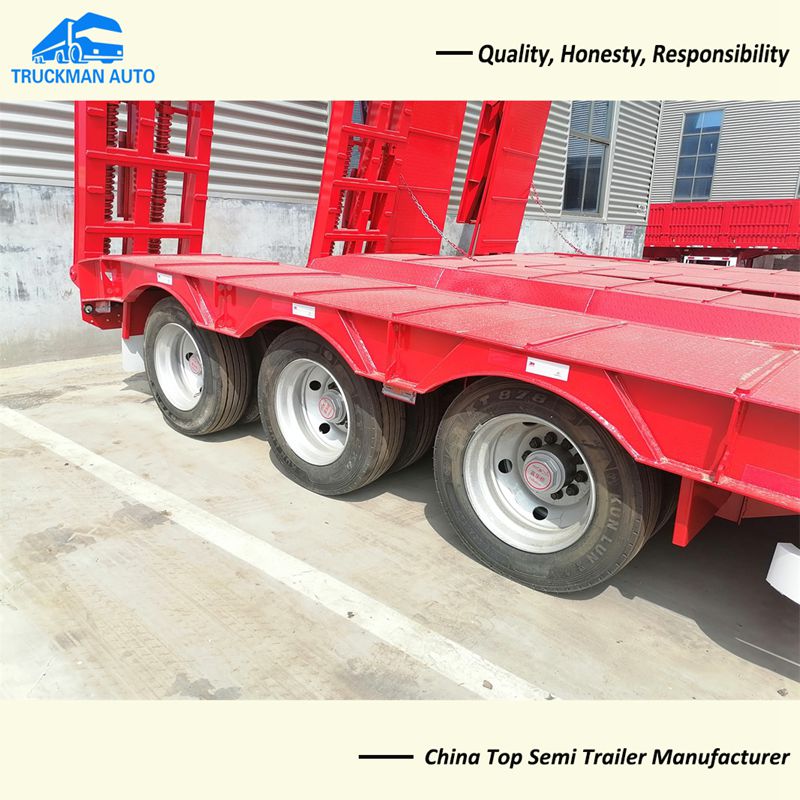

Axle
|
3 axles, 16Ton Fuwa brand 16ton brake pads
|
|
Landing Gear
|
28T lifting capacity with two speed JOST Brand
|
|
King Pin
|
2.00 or 3.5 inch bolt-in king pin
|
|
Suspension
|
Mechanical suspension reinforced type
|
|
Leaf Spring
|
90mm(W)*16mm(T)*10 Layers
|
|
Pneumatic Braking System
|
Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve
|
|
Rim
|
9.0-20*12 pcs
|
|
Tire
|
12.00R20*12 pcs
|
|
Accessories
|
One standard tool box
|
|
Painting
|
Sand blasting processing clean rust
|
|
1 coat of anticorrosive primer
|
|
2 coats of finish urethane paint
|
|
Color as customer choice
|
Popular Colors and High Quality Painting
We use high quality paint to make our products beautiful, seamless, dustproof and easy to clean.
KTL electrophoresis + powder
spraying, instead of traditional paint process to make a good bond with a solid base, good wear resistance, durability and has good anti-corrosion effect and long paint life.
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
