Our fuel transport tank trailer with the sea valve and independent comdepartments, discharge valve.
The fuel semi trailer is mainly composed of three main parts: the trailer chassis, the tank body, and the
refueling machine. Other parts like manhole cover, oil and gas recovery valve, oil and gas recovery joint,
subsea valve (emergency cut-off valve), oil discharge valve, anti-overflow sensor, etc.

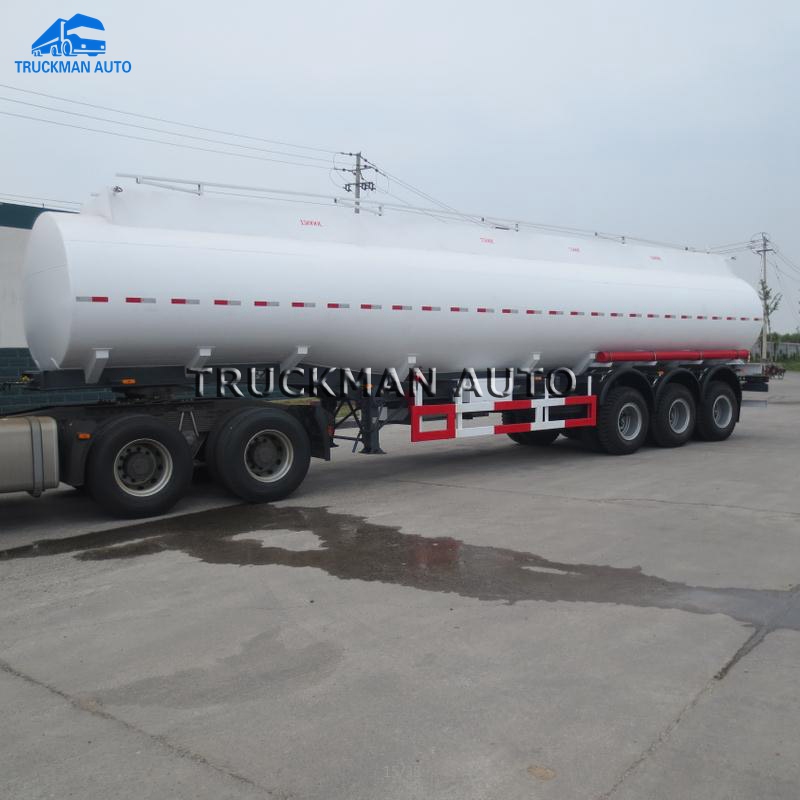

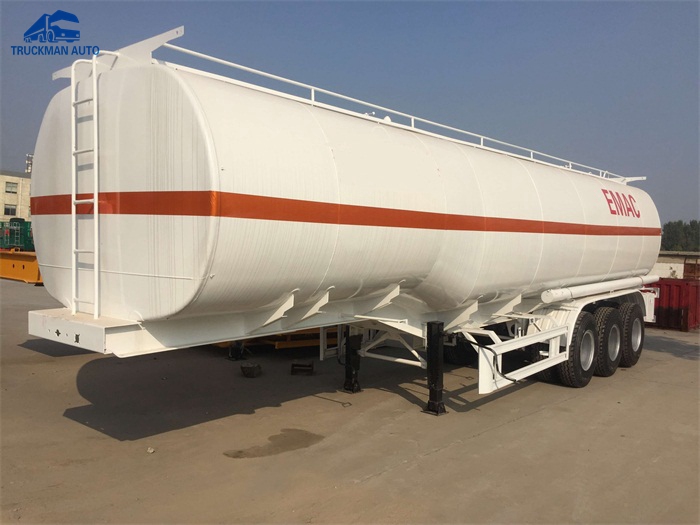

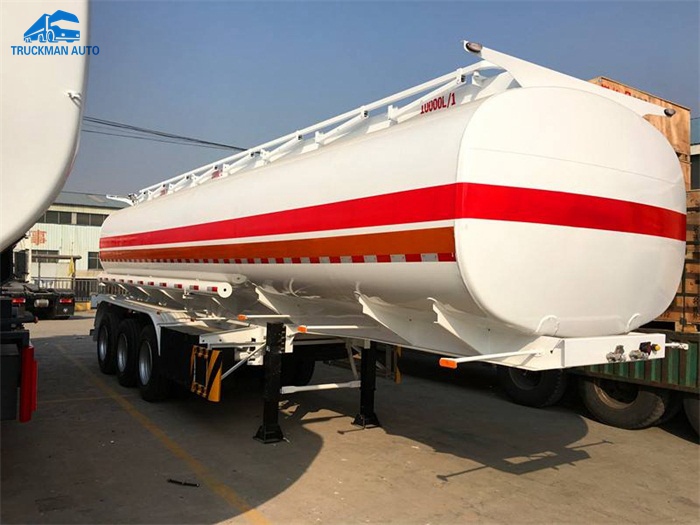

China Brand SINOTRUK HOWO 3 Axles Fuel Tank Trailers
The Main Specification For The Fuel Tank Trailer.
Dimensions: 10000mm*2500mm*3950mm
Tanker Body Material: Q345B/5mm steel sheet
End Plate: Q345B/6mm ball shape
Loading Capacity: 60 Ton
Tire: 12R22.5, 12 units, LINGLONG
Rim: 9.00-22.5, 12 units, 18mm thickness
Axles: 3x13T BPW or FUWA brand
Leaf Spring: 120x16mmx10pcsx6sets
King Pin: 3.5 inch JOST Brand
Brake System: WABCO Valve and relays/ABS
Landing Gears: JOST Landing gear
Suspension: Mechanical spring suspension
Electrical: 24V
Light: LED light
