Lowbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, and construction machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) ) And other heavy-duty goods, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high goods and pass overhead obstacles.

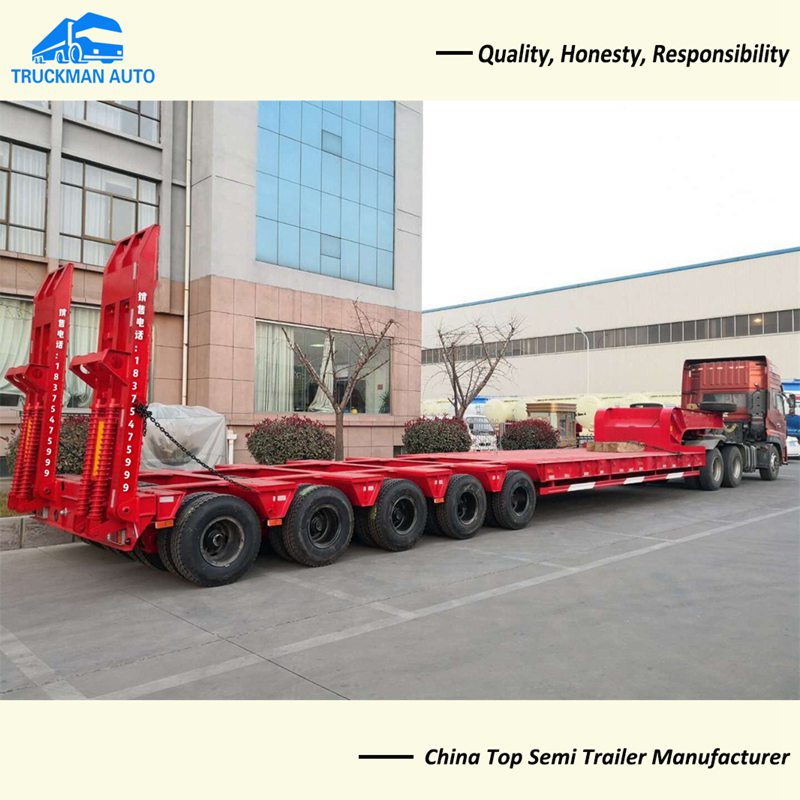

Lowboy Trailer TRUCKMAN Brand 5 Axles Low Bed Semi Trailer

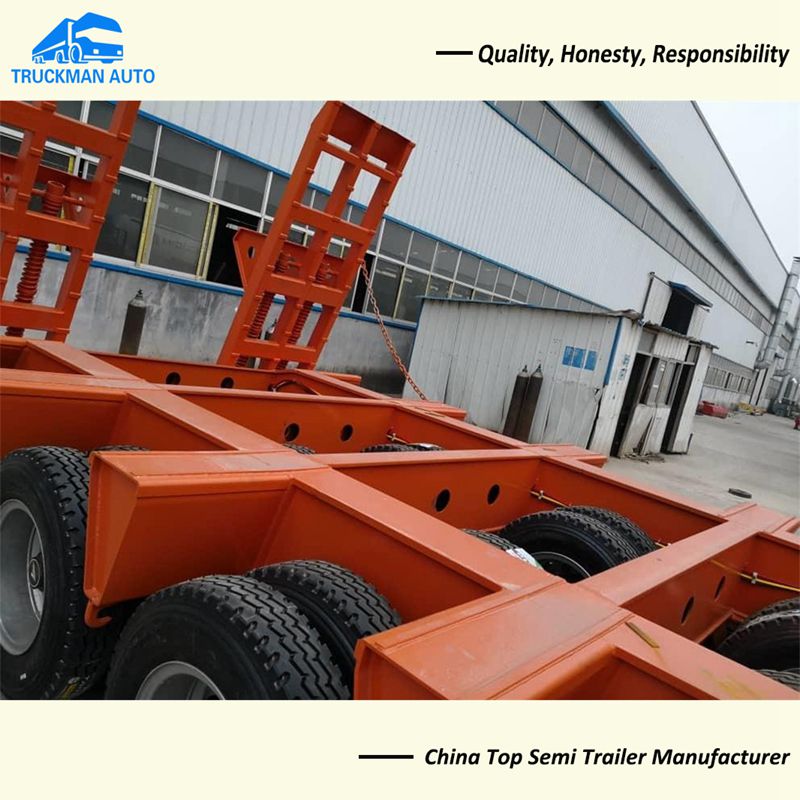

The lowboy semi-trailer usually adopts a concave beam (or well-shaped) frame, that is, the front part of the frame is a gooseneck (the traction pin of the front part of the gooseneck is connected with the traction saddle on the tractor, and the back end of the gooseneck is connected to the semi-trailer frame Connected), the middle section is the cargo platform (the lowest part of the frame), and the rear end is the wheel frame (including wheels).
When loading mechanical equipment on a low-flat semi-trailer, the mechanical equipment is usually loaded from the rear of the semi-trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi-trailer on.
Axles: 13T*5
Tires: 11.00R20,Radial Tires
Landing Gear:28T
Brake system: WABCO air brake valve
Ramp: Machanical
Kingpin:90#
Loading Capacity:80 Tons
