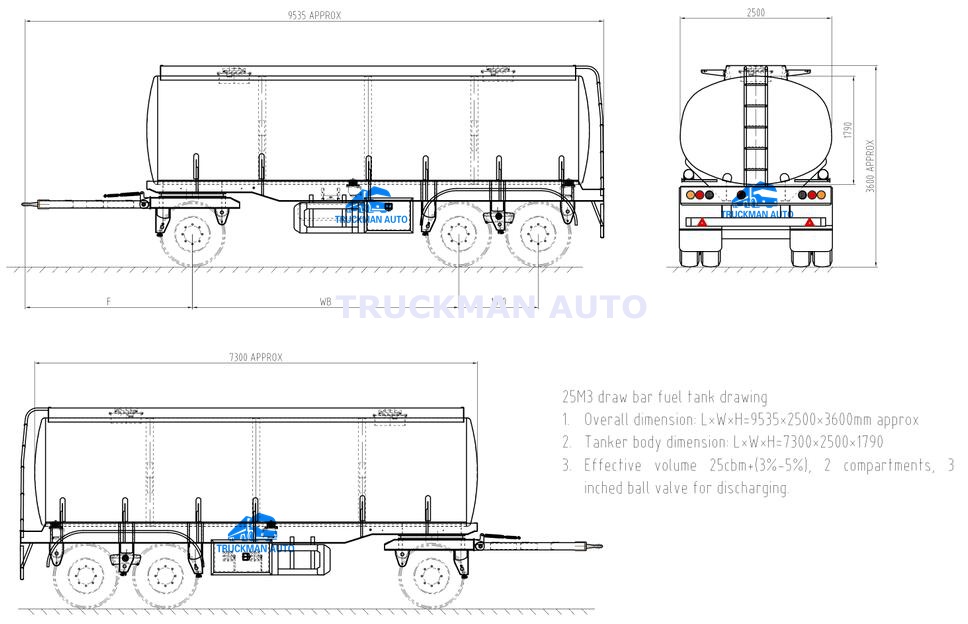

Full trailer type fuel tanker trailer used for TRANSPORTING DIESEL,PETROLUM,CRUDE OIL,EDIBLE OIL ,PALM OIL ,LIQUID BITUMEN ETC
| Driving Type | LHD, RHD | |
| Dimension(Lx W x H)(mm) | 11184x2496x3048mm | |
| Approaching angle/Departure angle(°) | 16/10 | |
| Overhang(front/rear) (mm) | 1500/3109 | |
| Max speed(km/h) | 90 | |
| Engine | Model | WD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Horse Power | 371hp | |
| Emission | EURO II | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model |
HW15710, 10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | Model |
ZF8098,hydraulic steering with power assistance Ratio:22.2-26.2 |
| Front axle |
HF7 disc brake, Steering with double T-cross section beam Loading capacity: 7000kg |
|
| Rear axle |
HW1279, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 12000kg |
|
| Chassis |
Frame: U-profile parallel ladder frame with section of 300*80*8mm and reinforced sub frame all cold riveted cross member Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi –elliptic leaf spring and bogie springs |
|
| Tire | 12.00-20, Bias tire | |
| Tire quantity | 10+1 spare | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| 7.5Kw/24V | 7.5Kw/24V | |
| Cab | HW76 | |
The production of tank trucks is our specialty, and our tank coil-tailor welder is the first user in the country! Our design capability has reached the domestic first level, with rich production experience and short supply cycle. Our company has passed the ISO9001 quality system certification, and the production of tank trucks has occupied a very high market share in Africa and Russia in China. Our cooperation can be CKD or SKD mode!
