Howo 420HP Dump Truck Trailer Head

VEHICLE SPECIFICATION

DESCRIPTION

Truck Model

ZZ4257V3247W

Type of Vehicle

TRACTOR TRUCK

Truck Brand

SINOTRUK—HOWO

Driving Position

Left hand Driving

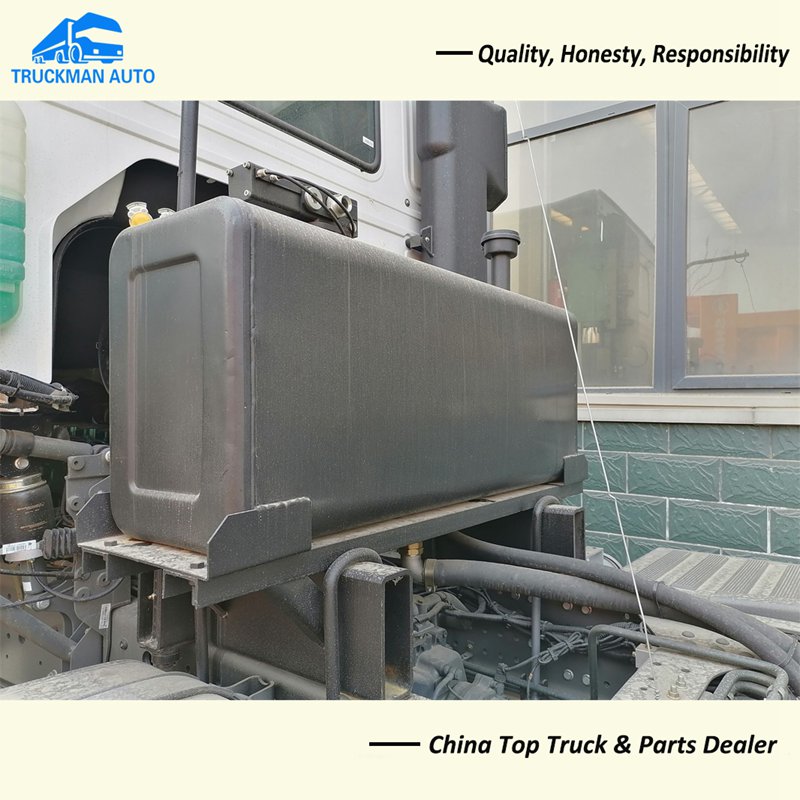

Fuel tanker capacity

400L

The Total Mass

40,000kg

Dead Weight

8800kg

Max speed

102km/h

Color

Optional

Chassis & Add Components

Frame Details

High-Strength U-profile ladder frame with

Section of 300*90*8mm and reinforced

sudfram, all cold riveted cross members.

Dimension(L×W×H)(unloaded)

6800x2496x3363mm

Approaching angle/Departure angle

16/70

Overhang(front/rear)

1500/725mm

Wheel base

3225+1350mm

Engine

Model

D12.42-20

Power

420hp/309kw.2000r/min

Emission

EURO II

Cylinder bore*stroke

126*155mm

Displacement

11.596L

Type

water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection.

Kind of Fuel

Diesel

Fuel Consumption

30L/100km

Clutch & Gear Box System

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Brake System

Service brake

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air

Operating on rear wheels

Auxiliary brake

Engine exhaust brake

Wheels & Tyres

Type

12R22.5/13R22.5/12.00R24/12.00R20

Material

Tubeless tires or Radial Tires

Quantity

10+1 spare

King pin

90mm or 50mm

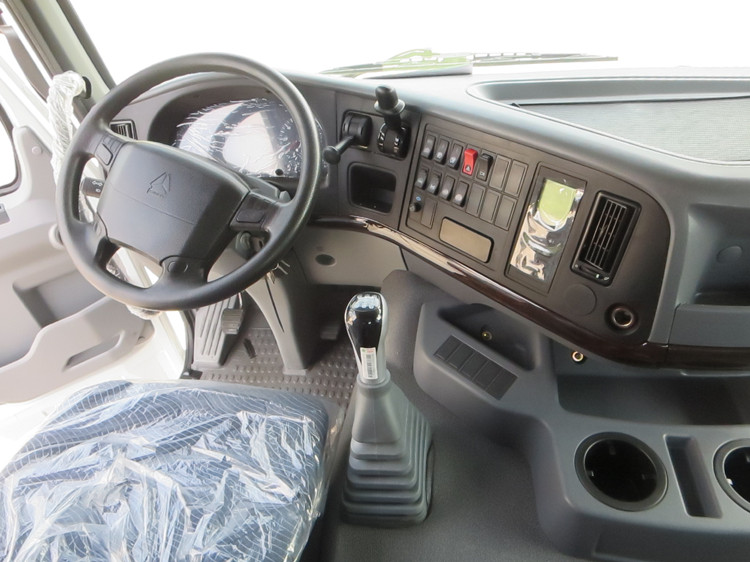

Cabin

Type

HW76 Standard cabin

Single sleeper with air conditioner, all-steel forward control,55 hydraulically tiltable

To the front,2- arm windscreen wiper system with three speeds, laminated windscreen

With casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable

co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap,

with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn,

with 4-point support fully floating suspension and shock absorbers.
