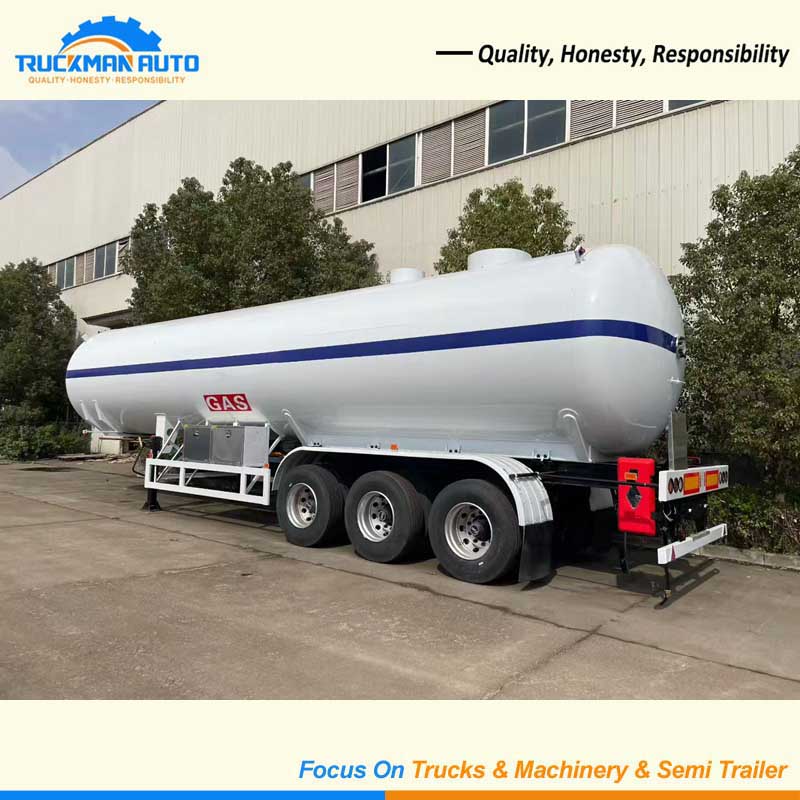

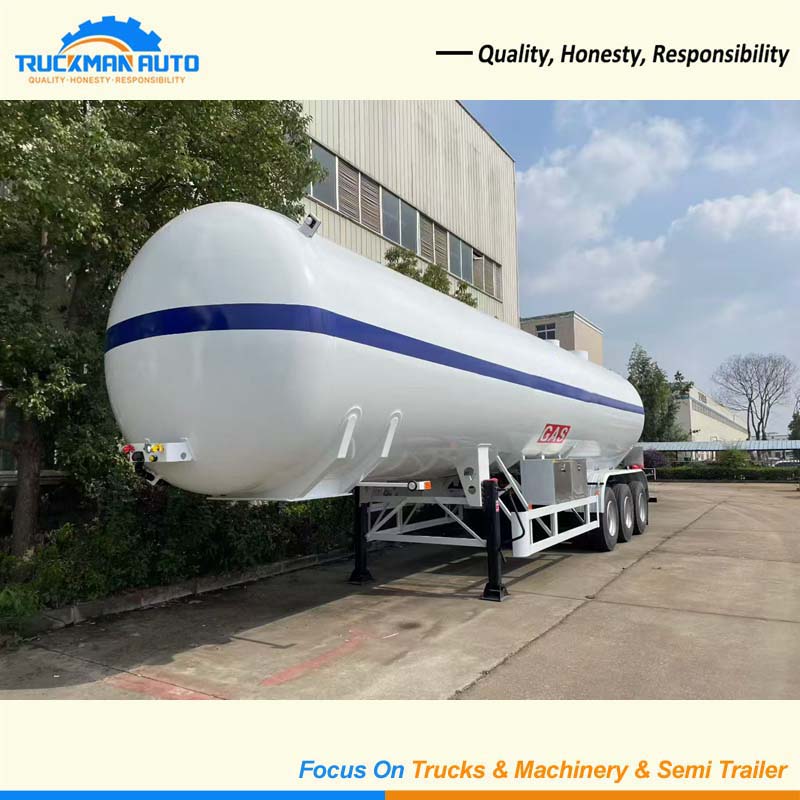

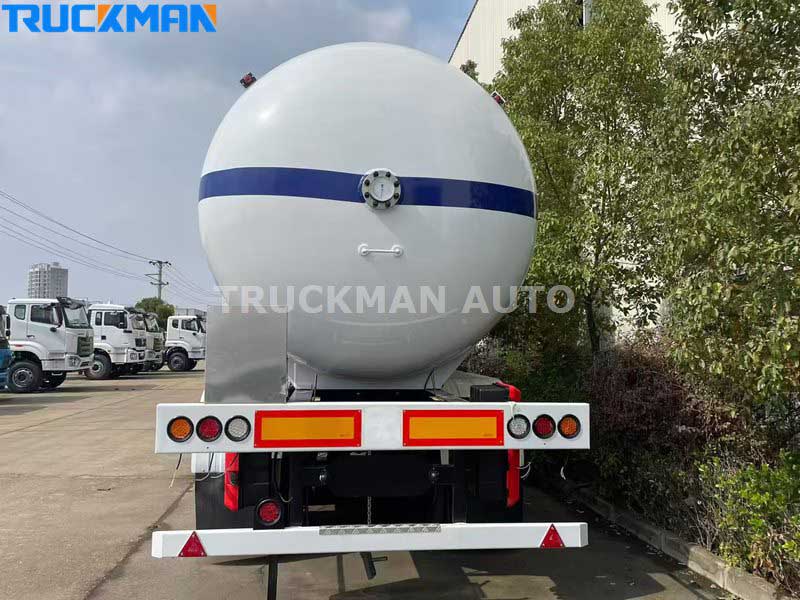

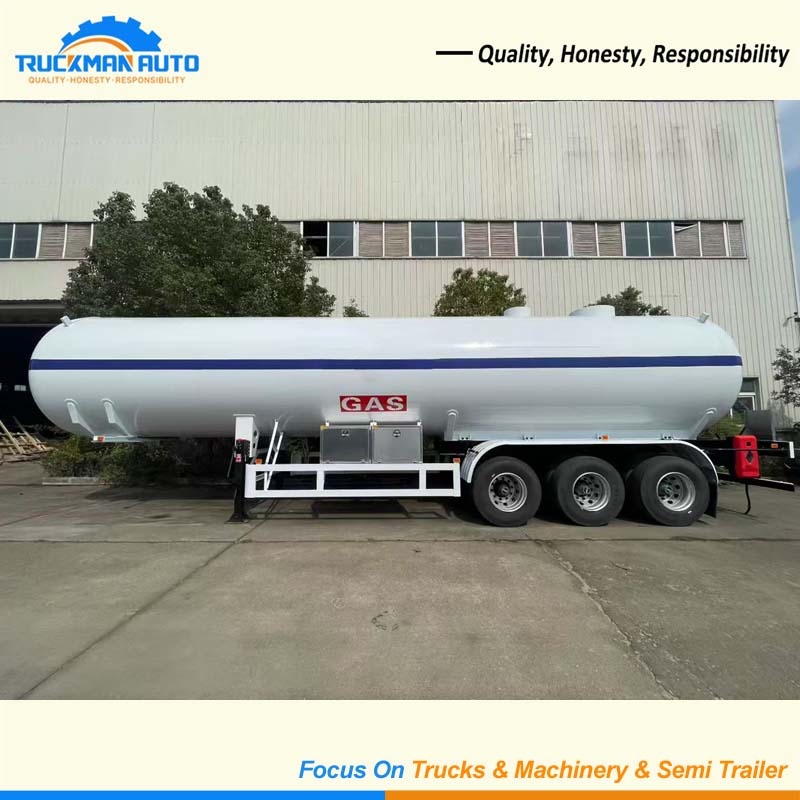

Durable 3 Axle 52.6 CBM LNG Tanker Semi Trailer For Nigeria

Introduction



The TRUCKMAN 3 axle 52.6 CBM LNG transport semi trailer is a heavy duty cryogenic liquid transport solution specifically engineered for the Nigerian energy market.

Engineered to meet the stringent demands of cross regional long haul gas distribution from southern ports to northern inland factories, it boasts unparalleled impact resistance, superior deep cold insulation, and operational safety on unpaved roads.

Its highly reliable chassis and premium running gear make it the absolute first choice for large scale procurement by Nigerian gas distribution fleets building a reliable logistics network.

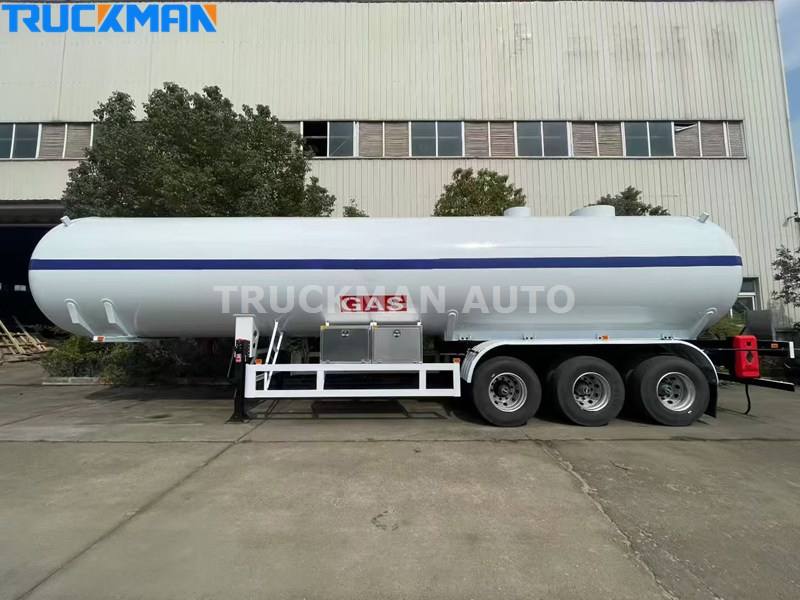

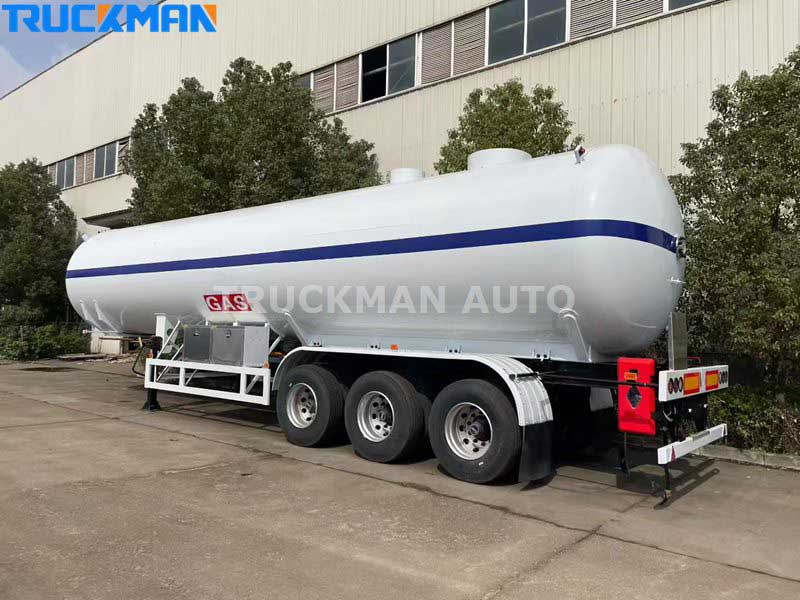

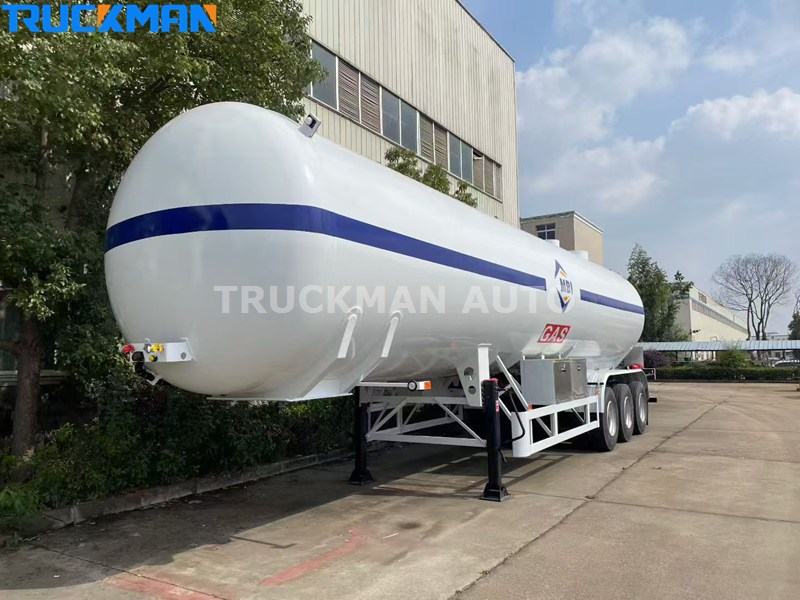

What Is a 3 Axle 52.6 CBM LNG Semi Trailer?



Built to thrive in the harsh realities of Nigerian logistics routes, this specific LNG tanker configuration leaves standard trailers behind. Key highlights include:



●High Vacuum Cryogenic Tank: Features a 52.6 m³ tank in tank design. The S30408 stainless steel inner shell (design temp -196℃, 0.65MPa) and robust Q355B outer shell utilize high vacuum multi layer insulation to drastically minimize the daily boil off rate.

●Solid Q550D Steel Chassis: Built with a highly reliable Q550D steel chassis featuring a 16mm thick main beam lower flange and 10mm thick middle web, ensuring maximum durability on severely potholed dirt roads.

●Premium Axles & Tires: Utilizes three 13 ton FUWA axles and twelve 315/80R22.5 Triangle tubeless tires, delivering massive load capacity and excellent heat dissipation.

●Ultimate Safety Components: Features WABCO ABS for secure stops, paired with a JOST 50# kingpin and JOST 28 ton landing gear for stable tractor coupling.





Technical Specifications



Feature	Value
Tanker Capacity	52.6 CBM
Tanker Material	Inner S30408/ Outer Q355B
Design Temp/Work Pressure	-196°C, 0.65MPa
Insulation Method	High vacuum multi layer insulation
Main Beam	Down plate 16mm thick, middle plate 10mm thick, Q550D material
Axle	13 Tons x 3pcs, FUWA brand
Tyre	315/80R22.5, 12pcs, TRIANGLE brand
Kingpin	JOST 50#
Landing Gear	JOST 28 Tons
Braking System	WABCO ABS
Dimension	13 x 2.5 x 3.95 m



Why It Is Suitable For Nigeria LNG/LPG Logistic Project



1. Nigeria Inland Road Conditions & Passive Safety Integration

Transport routes extending from southern coastal gas terminals (like Port Harcourt) to inland regions frequently encounter extreme challenges:

●Uneven road surfaces featuring numerous unpaved dirt roads.

●Persistent deep potholes causing severe torsional stress to the chassis.

●Flying mud, rocks, and physical impacts threatening exposed valves.

The solid Q550D steel frame with a 16mm thick lower flange provides unmatched rigidity against severe shocks. Crucially, the S30408 stainless steel inner tank maintains exceptional low temperature toughness, resisting brittle cracking during violent twists. Additionally, all safety valves and gauges are integrated into a fully enclosed lockable box, shielding them from mud, collision damage, and fuel theft on rough transit routes.



2. High Temperatures, Braking Heat & Active Pressure Control

Heavy duty hazardous logistics in Nigeria tropical climate present significant safety risks:

●Extreme ambient heat accelerating LNG boil off and dangerous pressure buildup.

●Long transport cycles causing excessive heat buildup in the wheel hubs.

●High risk of tire blowouts or jackknifing during emergency braking with a flammable payload.

To counter ambient heat, the high vacuum insulation guarantees a low daily evaporation rate (≤0.3%/day), preventing internal pressure spikes and dangerous gas venting. For driving safety, Triangle TR691 tubeless tires offer superior heat dissipation, effectively preventing blowouts during long downhill runs. Furthermore, the WABCO ABS prevents tire lock up, ensuring the heavy trailer remains steerable to avoid rollover accidents during sudden stops.



3. Brand Name Components Ensure Local Maintainability

Long distance transport in West Africa places extremely high demands on vehicle maintenance efficiency:

●Limited advanced repair facilities available in remote regions.

●Unexpected downtime caused by substandard spare parts.

●Significant financial losses resulting from vehicle downtime.

Our LNG semi trailers are fully equipped with globally recognized components like FUWA axles, JOST landing gear, and WABCO ABS. This guarantees an exceptionally low failure rate and ensures easy spare parts availability in Nigeria, significantly reducing downtime and maintenance costs.





Q550D Trailer Chassis VS Q345 Trailer Chassis Comparison





For the diverse and complex operating conditions in Nigeria, the solid Q550D steel frame proves to be the most cost effective and durable solution for continuous LNG fleet operations.

Do you also need a fuel tanker trailer too? Please click here.



Export Case

Country: Nigeria

Client Type: Independent Gas Distributor & Logistics Fleet

Quantity: 6 Units

Application: Inland transit of Liquefied Natural Gas (LNG) from coastal liquefaction plants to northern industrial parks, serving as a reliable virtual pipeline.

Feedback: The solid Q550D frame and FUWA axles easily handle the rough road from the south to Kano. The active and passive safety designs are outstanding, the enclosed valve box prevents mud damage, and the WABCO ABS gives our drivers confidence. Even under the hot Nigerian sun, the vacuum insulation keeps the pressure completely stable, maximizing our delivery volume. For more details, please check here.



FAQ About 3 Axle 52.6CBM LNG Trailer.



Q: Who are we?

A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China



Q: How long is the delivery time for shipping of 3 Axle LNG Tanker Trailer?

A: It depends on the order quantity, and generally takes 15-40 days.



Q: How do we ensure quality of 52.6 Cubic LNG Semi Trailer?

A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.



Q: What’s our MOQ of LNG/LPG Tanker Semi Trailer?

A: For most products, the MOQ is 1 unit.
