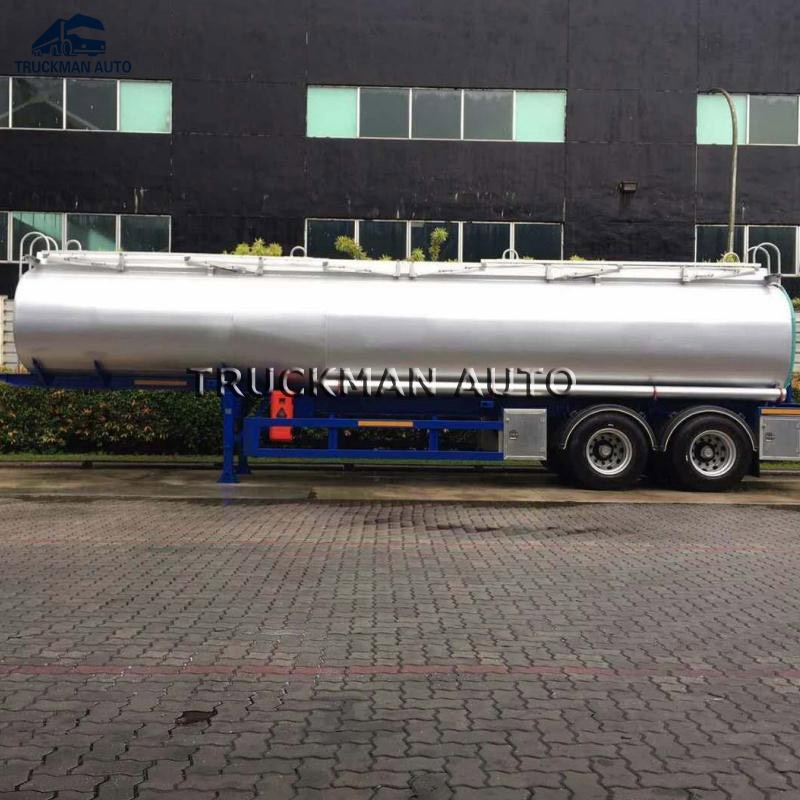

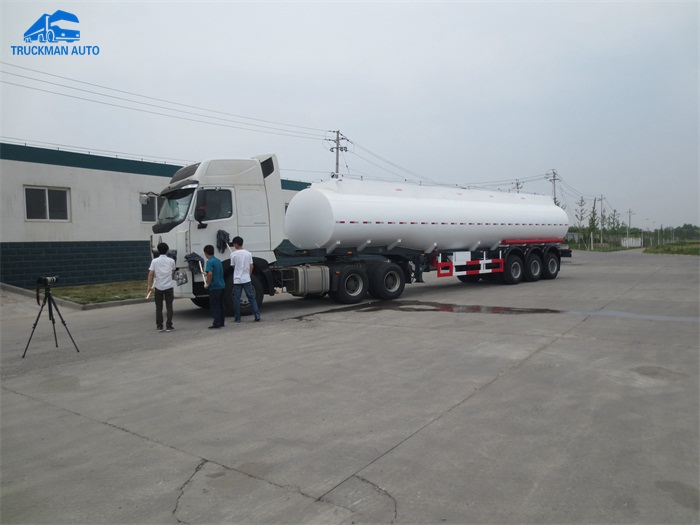

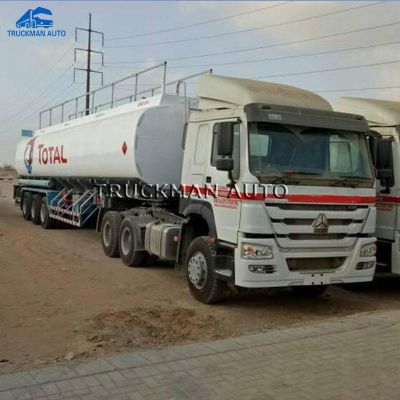

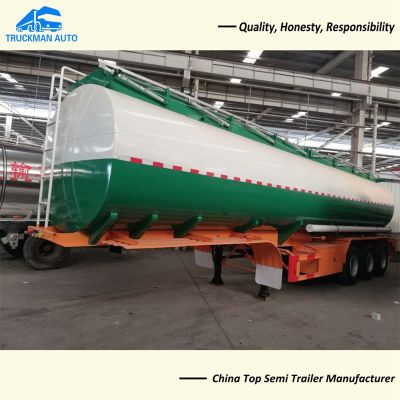

The aluminum alloy fuel tank trailer with the self weight soft and big loading advantage.
The tank body adopts three-dimensional modeling design, and is made of imported high-quality
aluminum alloy plates automatically welded on the splitter. The head, comdepartment, are all butterfly
-shaped. An aluminum alloy hose is installed on both sides of the tank body, which can store
the discharge hose, and the length can be customized according to customer requirements.
Standard Parts For Fuel Tank Trailers.
Manhole cover, oil and gas recovery valve, oil and gas recovery joint, subsea valve (emergency cut-off valve),
oil discharge valve, anti-overflow sensor, etc.
The Main Specification For The Fuel Tank Trailer.
Dimensions: 10000mm*2500mm*3950mm
Tanker Body Material: Aluminum alloy
Loading Capacity: 40 Ton
Tire: 12R22.5, 12 units, LINGLONG
Rim: 9.00-22.5, 12 units, 18mm thickness
Axles: 2x13T BPW or FUWA brand
Leaf Spring: 120x16mmx10pcsx6sets
King Pin: 3.5 inch JOST Brand
Brake System: WABCO Valve and relays/ABS

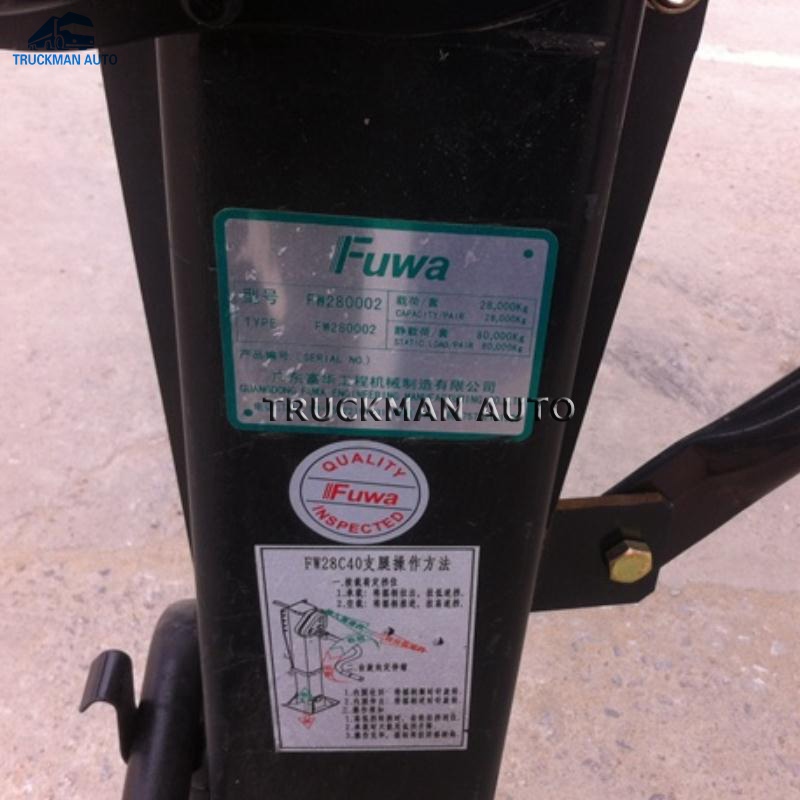

Landing Gears: JOST Landing gear
Suspension: Mechanical spring suspension
Electrical: 24V
Light: LED light
